SAGA Height & Slope Gauge (Model 007)
Companion Software
Key Specs
Product Videos
SAGA Height & Slope Gauge (Model 007) Full Specifications
| Product Model | Model 007 |
|---|---|
| Main Functions | Altitude / slope / angle measurement |
| Angle Scale | DEG bidirectional 0-90° |
| Level Bubble | Center bubble level |
| Conversion Chart | COTANGENTS 360° cotangent reference |
| Body Material | Aluminum alloy |
| Reading Method | Eyepiece readout |
| Application | Field survey, forestry, mapping, study |
SAGA Height & Slope Gauge (Model 007) Product Overview

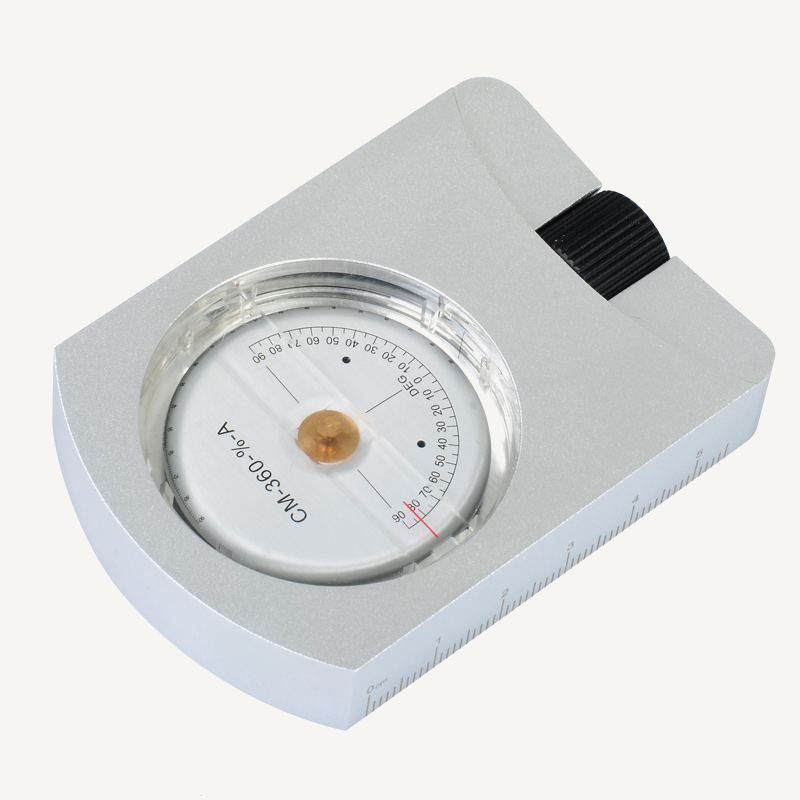

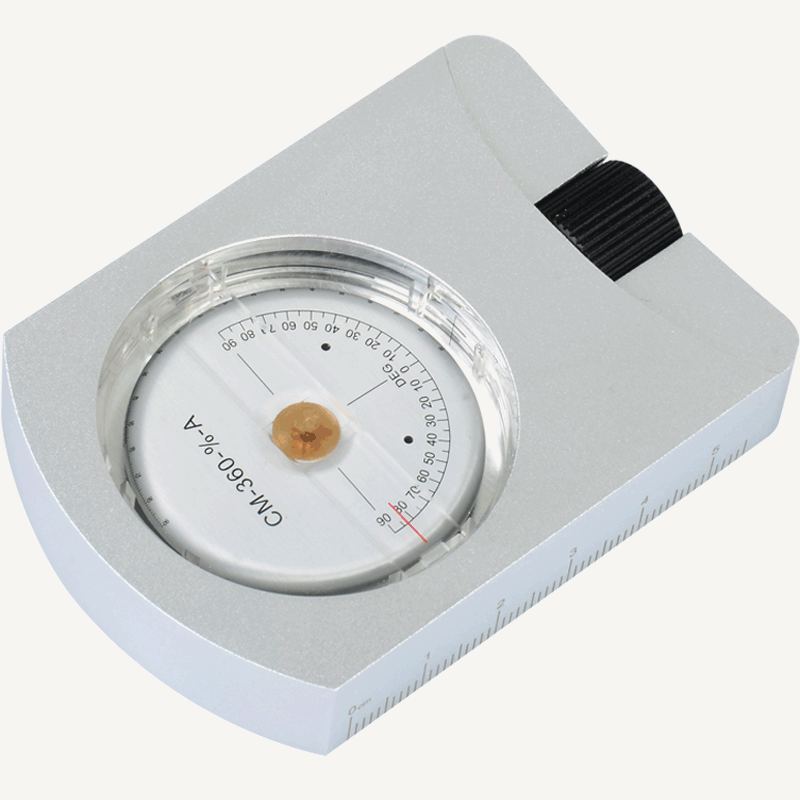

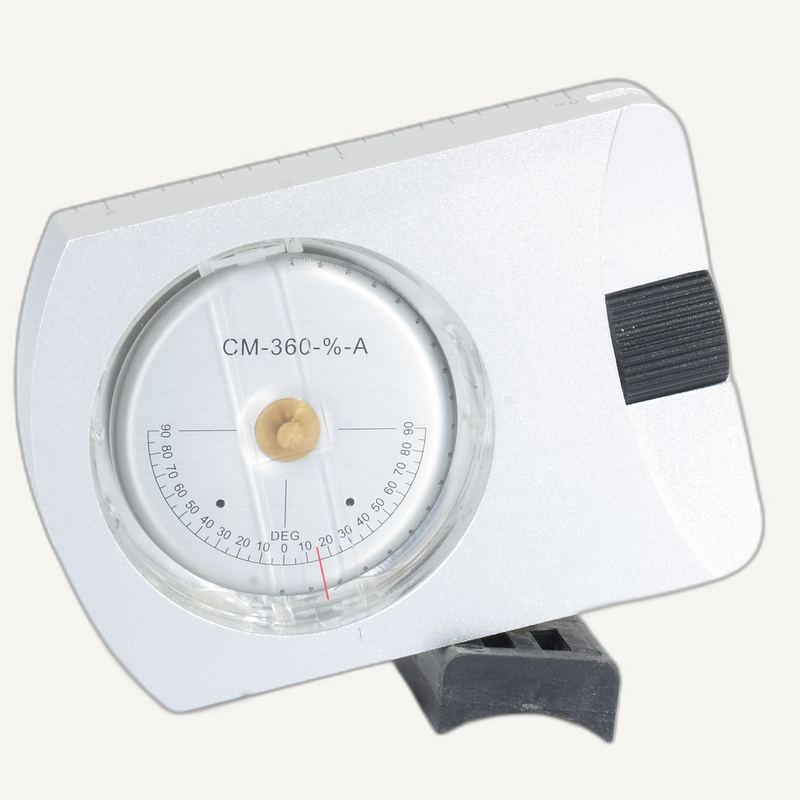

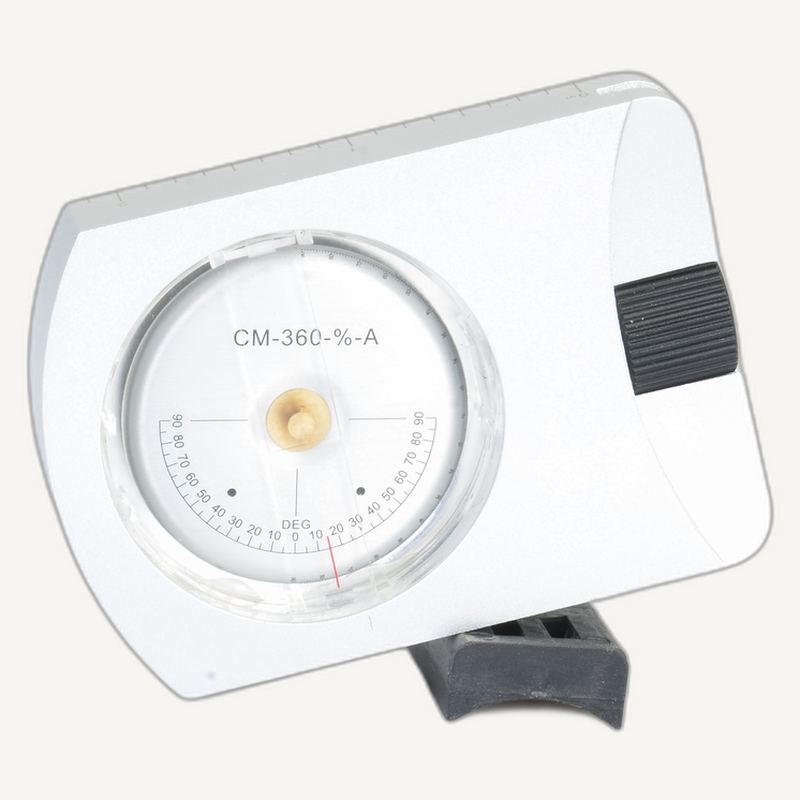

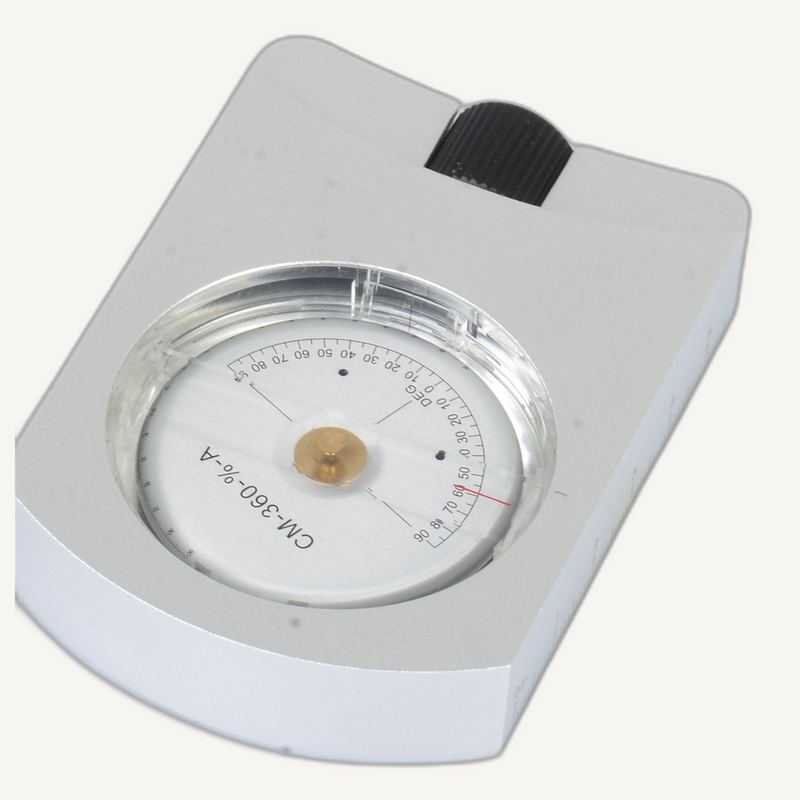

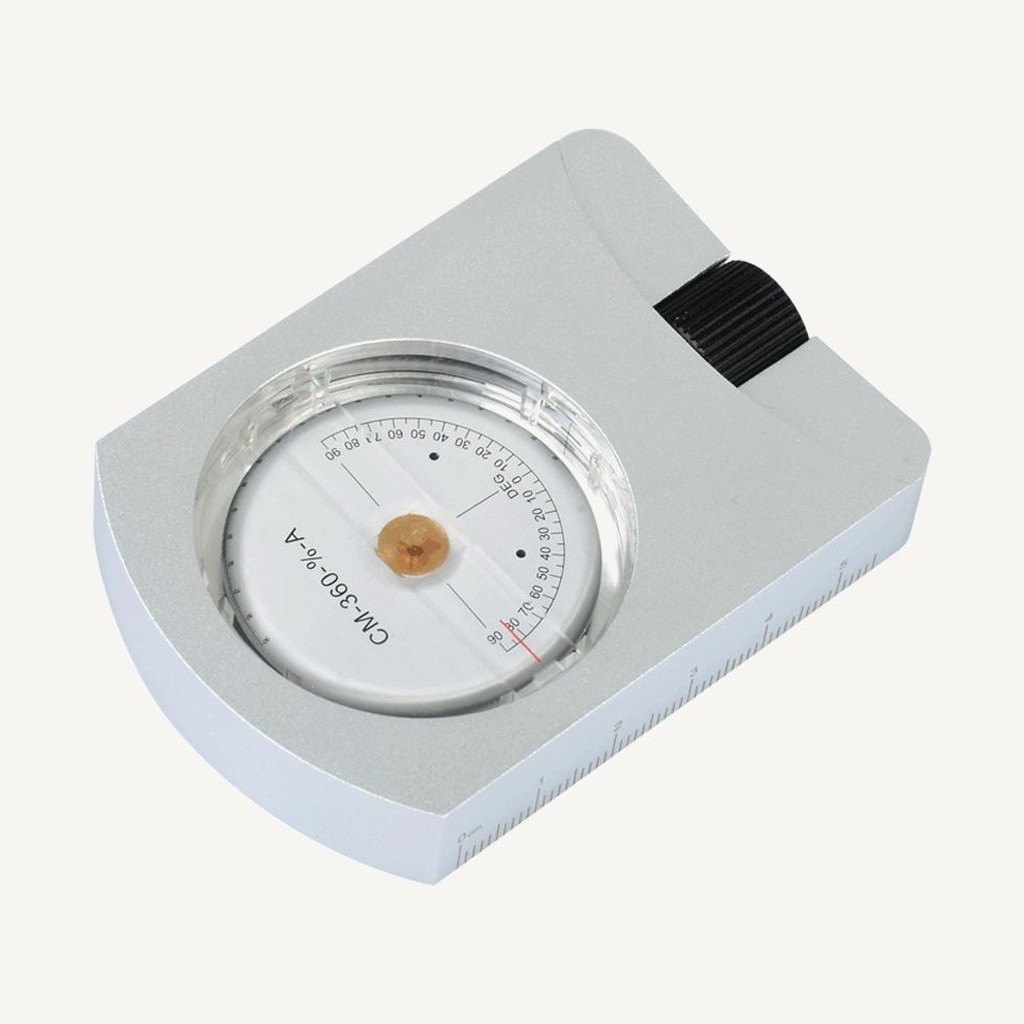

The SAGA height & slope gauge (007 model) is a professional outdoor measuring tool for height, slope and angle. Built with a sturdy yet lightweight aluminium-alloy body, its front dial carries a bidirectional DEG angle scale (0-90 degree) with a bubble level at the centre. Through the eyepiece you read the tilt angle at a glance, then use the COTANGENTS 360-degree conversion table on the back to translate it into target height and distance. By measuring the angle of elevation you can estimate the height of hills, trees, buildings and other landmarks - a practical companion for outdoor exploration, geological survey, forestry, surveying and classroom learning. Slope, height and angle measurement in one simple, easy-to-read tool.
- Three-in-one: height / slope / angle measurement, versatile
- Aluminum-alloy body, sturdy yet lightweight, portable
- DEG bidirectional angle scale (0–90°), intuitive reading
- Center bubble level, helps with aiming and reading

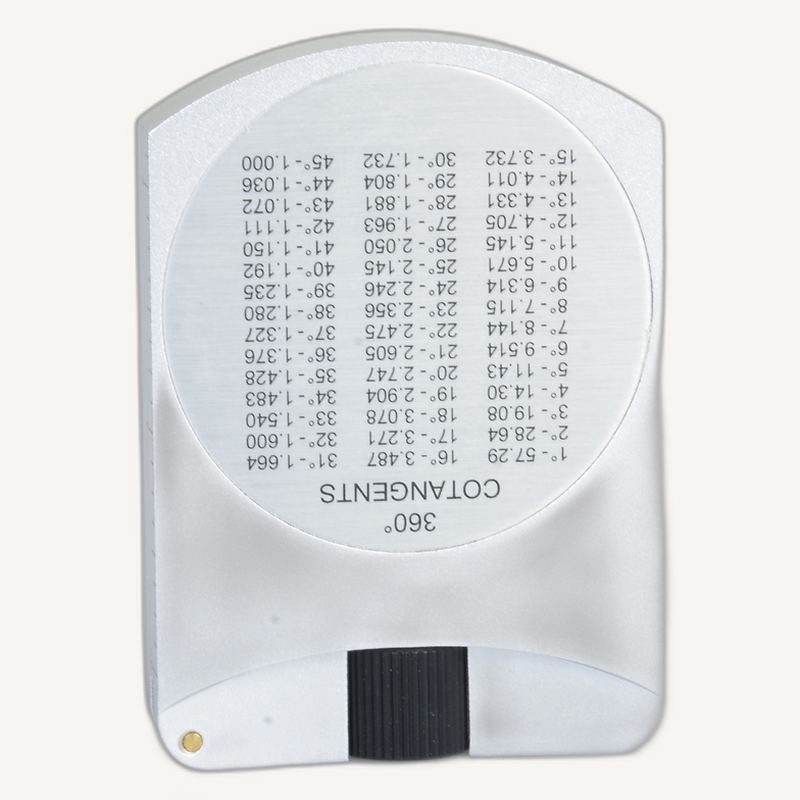

- Reverse-side COTANGENTS 360° cotangent table, for height and distance conversion
- Applications: outdoor adventure, geological survey reference, forestry estimation, mapping reference layout, research teaching

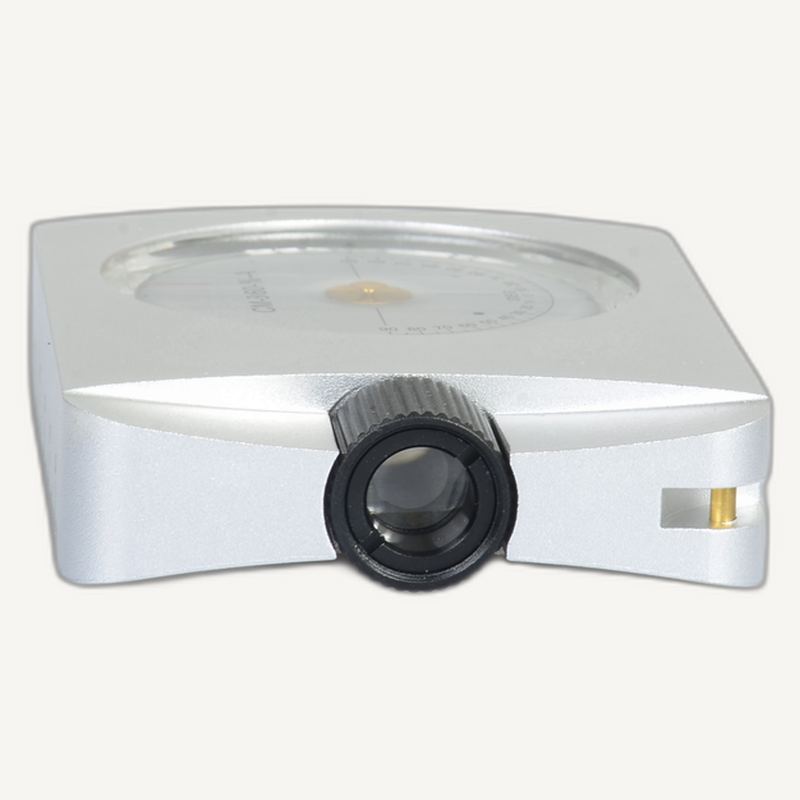

- Eyepiece sighting, quick inclination reading through the lens
- Estimate target height of slopes, trees, buildings and more via inclination angle
SAGA Height & Slope Gauge (Model 007) Product Features
Three-in-one
height / slope / angle measurement, versatile
Aluminum-alloy body
sturdy yet lightweight, portable
DEG bidirectional angle scale (0–90°)
intuitive reading
Center bubble level
helps with aiming and reading
Reverse-side COTANGENTS 360° cotangent table
for height and distance conversion
Applications
outdoor adventure, geological survey reference, forestry estimation, mapping reference layout, research teaching
Eyepiece sighting
quick inclination reading through the lens
Estimate target height of slopes
trees, buildings and more via inclination angle
SAGA Height & Slope Gauge (Model 007) Package Contents
Frequently Asked Questions
What are the key specifications?
Product Model: Model 007; Main Functions: Altitude / slope / angle measurement; Angle Scale: DEG bidirectional 0-90°; Level Bubble: Center bubble level; Conversion Chart: COTANGENTS 360° cotangent reference; Body Material: Aluminum alloy. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: SAGA Clinometer, Instruction Manual, Color Box Packaging.
What are the main features?
Three-in-one: height / slope / angle measurement, versatile; Aluminum-alloy body, sturdy yet lightweight, portable; DEG bidirectional angle scale (0–90°), intuitive reading.
