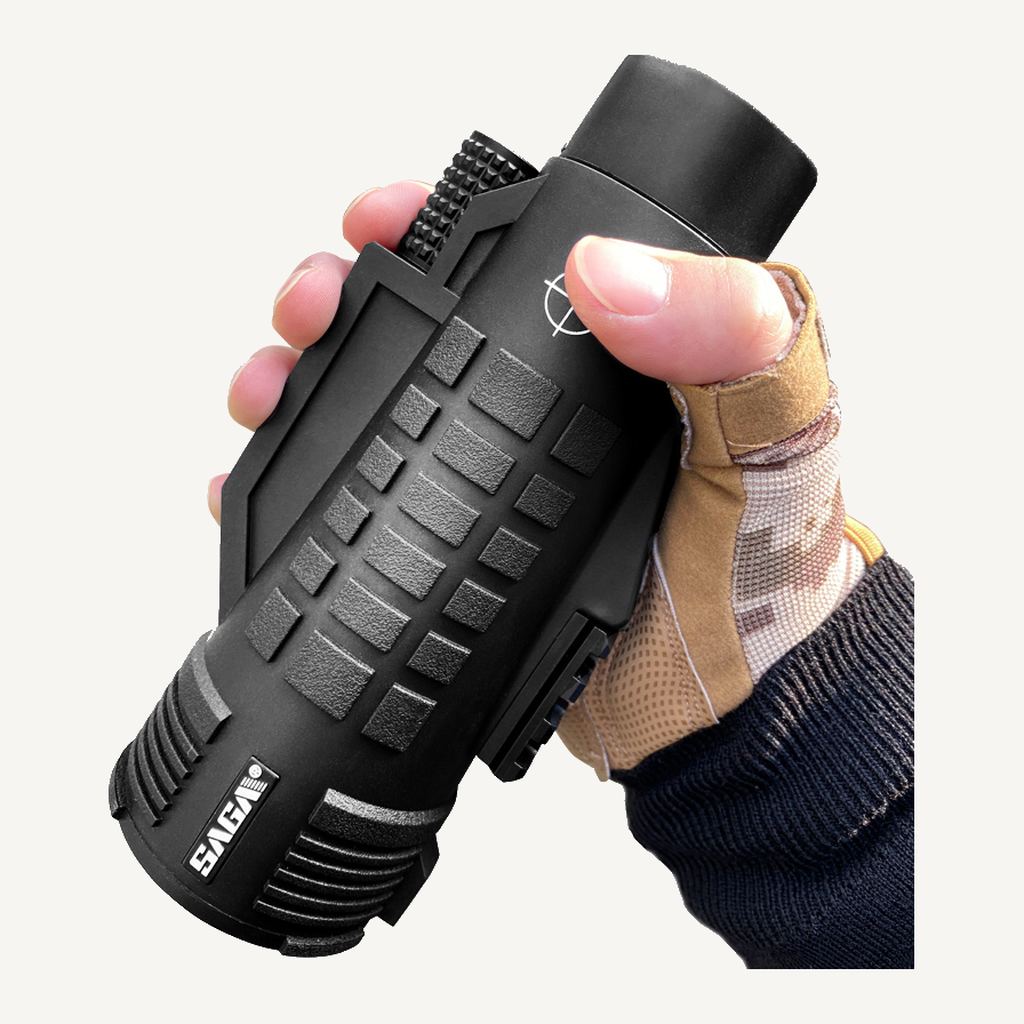

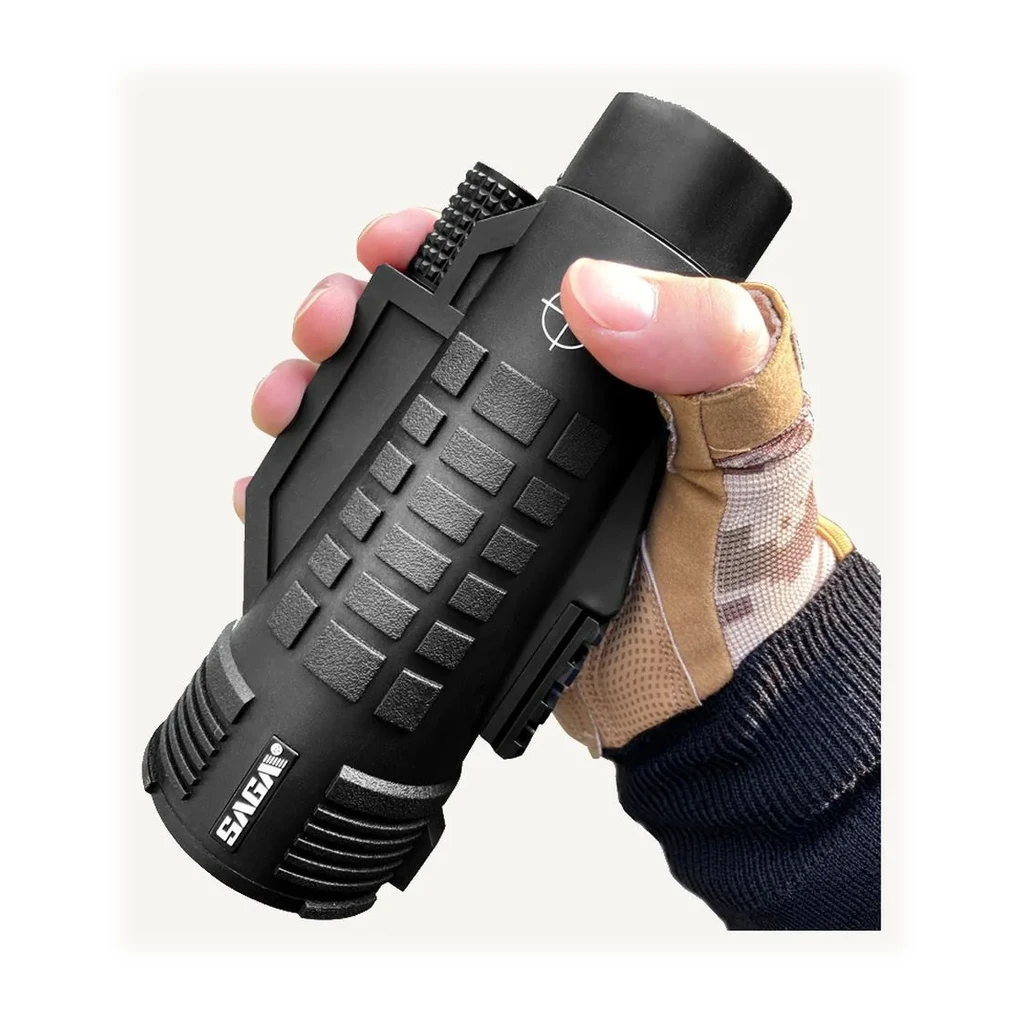

SAGA 10x50 / 12x50 ED High-Definition Monocular
Companion Software
Choose Variant
Selected:10X50ED
Key Specs
Product Videos
SAGA 10x50 / 12x50 ED High-Definition Monocular Full Specifications
| Parameter | 10X50ED | 12X50ED | 10X50ED Coordinate |
|---|---|---|---|
| MagnificationDiff | 10x | 12x | 10x |
| Eyepiece DiameterDiff | 24mm | 20mm | 24mm |
| Objective Aperture | 50mm | 50mm | 50mm |
| Exit Pupil DiameterDiff | 5mm | 4.2mm | 5mm |
| Prism System | BAK4 | BAK4 | BAK4 |
| Eye Relief | 15mm | 15mm | 15mm |
| Close FocusDiff | 2m | 2.5m | 2m |
| Field of View at 1000 ydDiff | 326ft | 285ft | 326ft |
| Optical Coating | FMC full broadband multi-layer green coating | FMC full broadband multi-layer green coating | FMC full broadband multi-layer green coating |
| Prism Coating | green coating+phase coating+high-reflectivitydielectric coating | green coating+phase coating+high-reflectivitydielectric coating | green coating+phase coating+high-reflectivitydielectric coating |
| Eyecup Type | Twist-up eyecup | Twist-up eyecup | Twist-up eyecup |
| Waterproof | Nitrogen-filled waterproof | Nitrogen-filled waterproof | Nitrogen-filled waterproof |
| ReticleDiff | — | — | Crosshair reticle |
| Tripod Mount | 1/4" standard tripod mount | 1/4" standard tripod mount | 1/4" standard tripod mount |
| Dimensions | 173X75mm | 173X75mm | 173X75mm |
| Net WeightDiff | 490g | 480g | 490g |
Never look at the sun through the telescope — it can cause permanent eye damage or blindness.
SAGA 10x50 / 12x50 ED High-Definition Monocular Product Overview
The SAGA 10x50 / 12x50 ED High-Definition Monocular is compact and pocketable, balancing clarity and portability — an ideal companion for travel, sightseeing and outdoor study.
- Real 50 mm large objective + ED extra-low dispersion glass, sharp imaging with reduced purple fringe
- 50 mm large objective with ED extra-low dispersion glass, suppresses purple fringe, sharp images
- 6-group/8-element optical structure, suppresses distortion, excellent color rendition
- FMC full broadband multi-layer green coating, higher overall transmittance
- BAK4 prism with phase coating + high-reflectivity dielectric coating, bright clear images
- 24 mm large eyepiece, comfortable observation
- 2 m close focus, fits exhibits, insect and close-range viewing
- Nitrogen-filled, waterproof and anti-fog, suitable for humid outdoor conditions
- DV-style wrist strap, helps improve handheld stability
SAGA 10x50 / 12x50 ED High-Definition Monocular Product Features
Real 50 mm large objective + ED extra-low dispersion glass
sharp imaging with reduced purple fringe
50 mm large objective with ED extra-low dispersion glass
suppresses purple fringe, sharp images
6-group/8-element optical structure
suppresses distortion, excellent color rendition
FMC full broadband multi-layer green coating
higher overall transmittance
BAK4 prism with phase coating + high-reflectivity dielectric coating
bright clear images
24 mm large eyepiece
comfortable observation
2 m close focus
fits exhibits, insect and close-range viewing
Nitrogen-filled
waterproof and anti-fog, suitable for humid outdoor conditions
DV-style wrist strap
helps improve handheld stability
SAGA 10x50 / 12x50 ED High-Definition Monocular Package Contents
Frequently Asked Questions
How many versions are available for this product?
3 versions: 10X50ED, 12X50ED, 10X50ED Coordinate. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 10x/ 12x; Eyepiece Diameter: 24mm; Objective Aperture: 50mm; Exit Pupil Diameter: 5mm / 4.2mm; Prism System: BAK4; Eye Relief: 15mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Monocular Unit, Eyepiece Cap, Objective Cap, Lens Cloth, User Manual, Color Box, DV-style Wrist Strap, Packaging Box.
What are the main features?
Real 50 mm large objective + ED extra-low dispersion glass, sharp imaging with reduced purple fringe; 50 mm large objective with ED extra-low dispersion glass, suppresses purple fringe, sharp images; 6-group/8-element optical structure, suppresses distortion, excellent color rendition.
You May Also Like

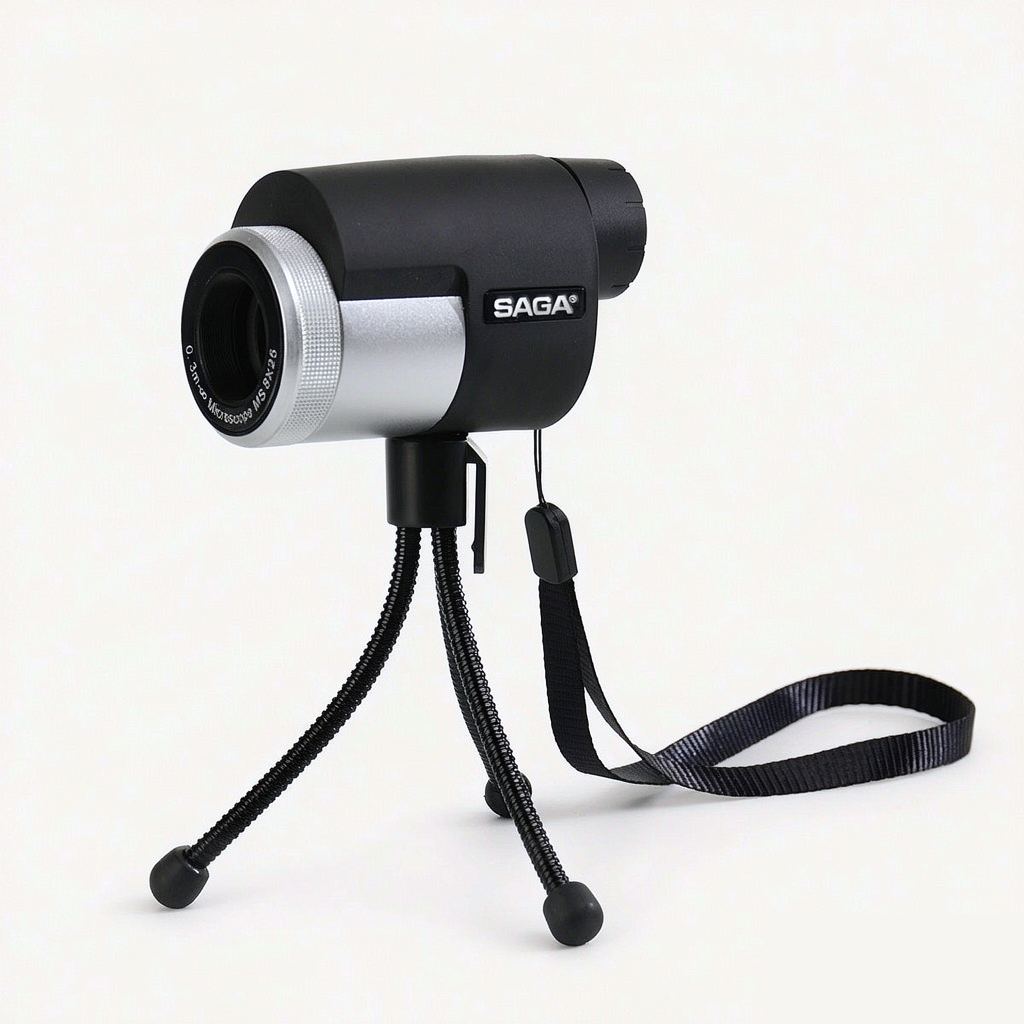

SAGA Zhangzhongbao 8X25 / 10X25 Monocular (Black / Silver)
8x / 25mm / 165g / 10x
The SAGA Zhangzhongbao 8X25 / 10X25 Monocular (Black / Silver) is compact and pocketable, balancing clarity and portability — an ideal companion for travel, sightseeing and outdoor study.

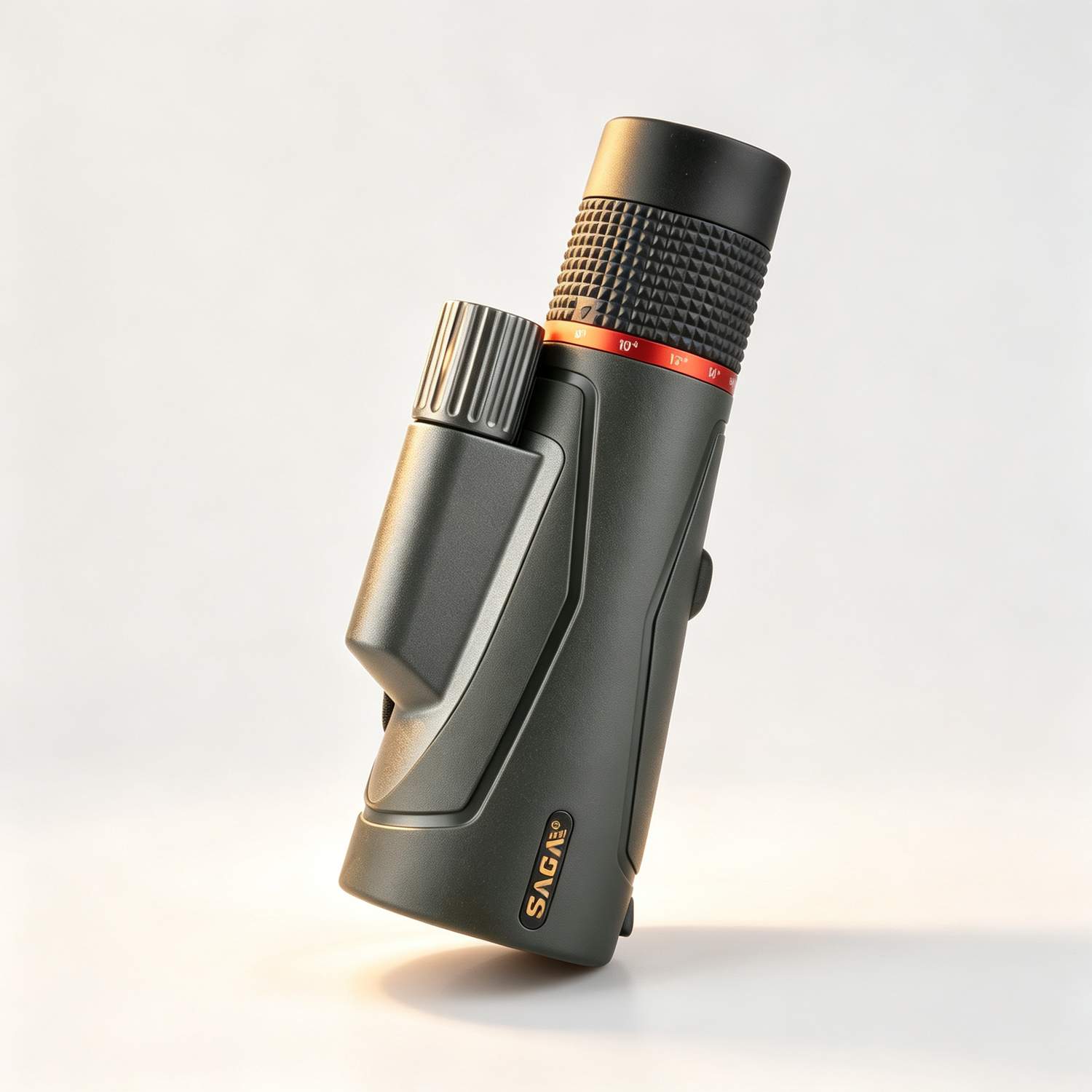

SAGA Falcon II 10-22x Zoom ED Monocular
12x / 50mm / FMC / 420g
The SAGA Falcon II zoom ED monocular offers 10-22x continuous zoom, ED glass and a large 56mm objective (50mm optional). FMC broadband anti-reflection coatings plus phase-coated K4 prism deliver brighter, sharper and more colour-true images. Nitrogen-filled waterproofing; 2m close focus and a 21mm eyepiece ensure comfortable viewing. Anti-shake wrist strap and standard 1/4" tripod thread make it ideal for birding, travel, outdoor and museum use.

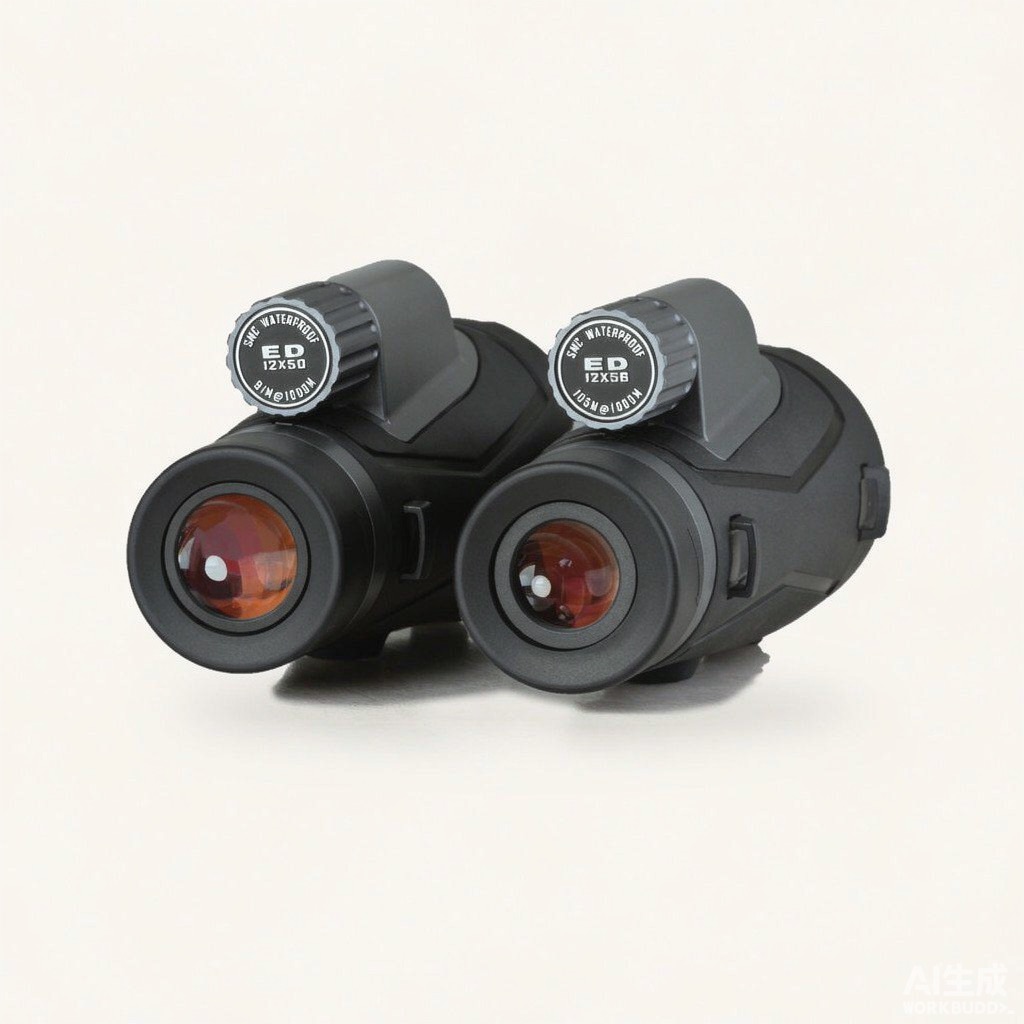

SAGA Falcon II 12x ED Monocular
12x / 50mm / 480g / ED
The SAGA Falcon II 12x ED monocular is available with 50mm or 56mm large objectives, offering stable 12x magnification. ED low-dispersion glass and SMC ultra-wideband anti-reflection coatings, combined with BAK4 phase-coated prisms, deliver brighter, sharper and more colour-true images. A 24mm eyepiece and 15mm eye relief provide comfortable viewing, while 2.5m close focus suits exhibitions, instrument inspection and close-range observation. Nitrogen-filled waterproofing, titanium-finish metal focus wheel and metal eyecup ensure durability, and the standard 1/4" tripod thread supports birding, travel, moon observation and power-line inspection.

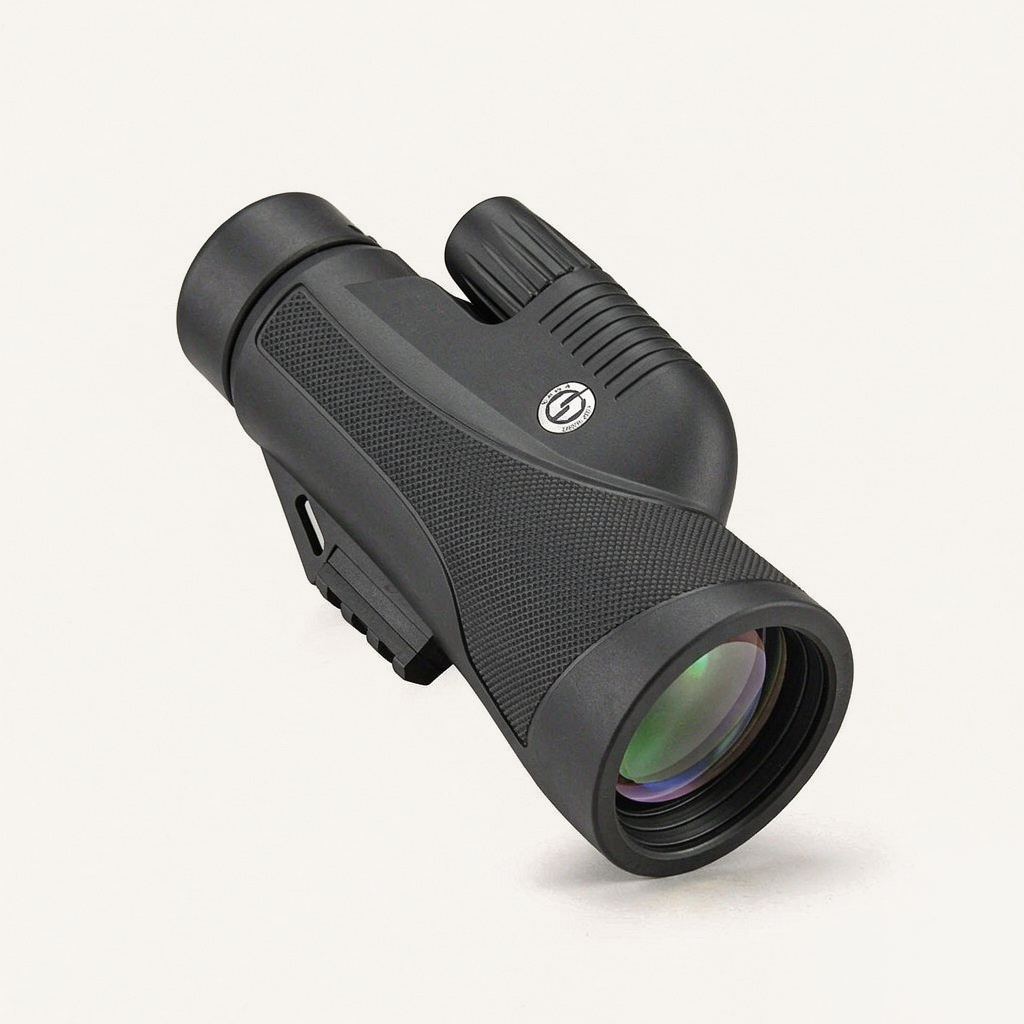

SAGA 10x50 / 12x50 High-Power Monocular
