SAGA Xiaogangpao 8x20ED / 8x42ED / 10x42ED Monocular
Companion Software
规格选择
已选：8X20ED Compact
Key Specs
Product Videos
SAGA Xiaogangpao 8x20ED / 8x42ED / 10x42ED Monocular Full Specifications
| 参数 | 8X20ED Compact | 8X42ED | 10X42ED |
|---|---|---|---|
| Magnification差异 | 8x | 8x | 10x |
| Eyepiece Diameter差异 | 17mm | 24mm | 21mm |
| Objective Aperture差异 | 20mm | 42mm | 42mm |
| Exit Pupil Diameter差异 | 2.5mm | 5.2mm | 4.2mm |
| Eye Relief差异 | 15.8mm | 17mm | 15mm |
| Field of View at 1000 m差异 | 119m@1000m | 142m@1000m | 113m@1000m |
| Close Focus差异 | 1.8m | 2m | 2.5m |
| Optical Coating | FMC multi-layer broadband coating | FMC multi-layer broadband coating | FMC multi-layer broadband coating |
| Prism System | BaK-4 roof prism | BaK-4 roof prism | BaK-4 roof prism |
| Prism Coating | phase coating + high-reflectivitydielectric coating | phase coating + high-reflectivitydielectric coating | phase coating + high-reflectivitydielectric coating |
| Lens Material | extra-low dispersion ED glass | extra-low dispersion ED glass | extra-low dispersion ED glass |
| Focus System | Built-in objective focus | Built-in objective focus | Built-in objective focus |
| Waterproof | Nitrogen-filled waterproof | Nitrogen-filled waterproof | Nitrogen-filled waterproof |
| Body Material | Metal body & metal retainer ring | Metal body & metal retainer ring | Metal body & metal retainer ring |
| Tripod Mount | 1/4" standard tripod mount | 1/4" standard tripod mount | 1/4" standard tripod mount |
| Dimensions差异 | 93×30mm | 136×47mm | 136×47mm |
| Net Weight差异 | 110g | 330g | 330g |
Never look at the sun through the telescope — it can cause permanent eye damage or blindness.
SAGA Xiaogangpao 8x20ED / 8x42ED / 10x42ED Monocular Product Overview

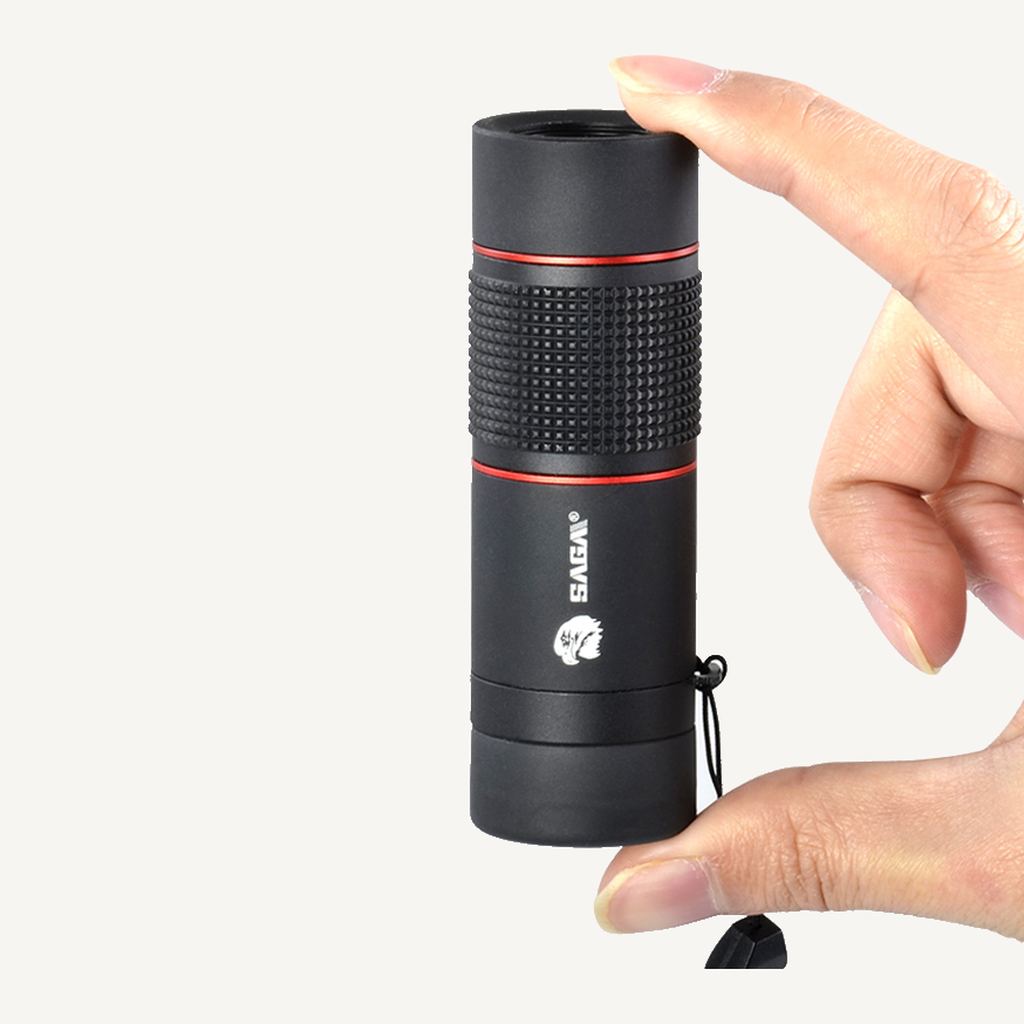

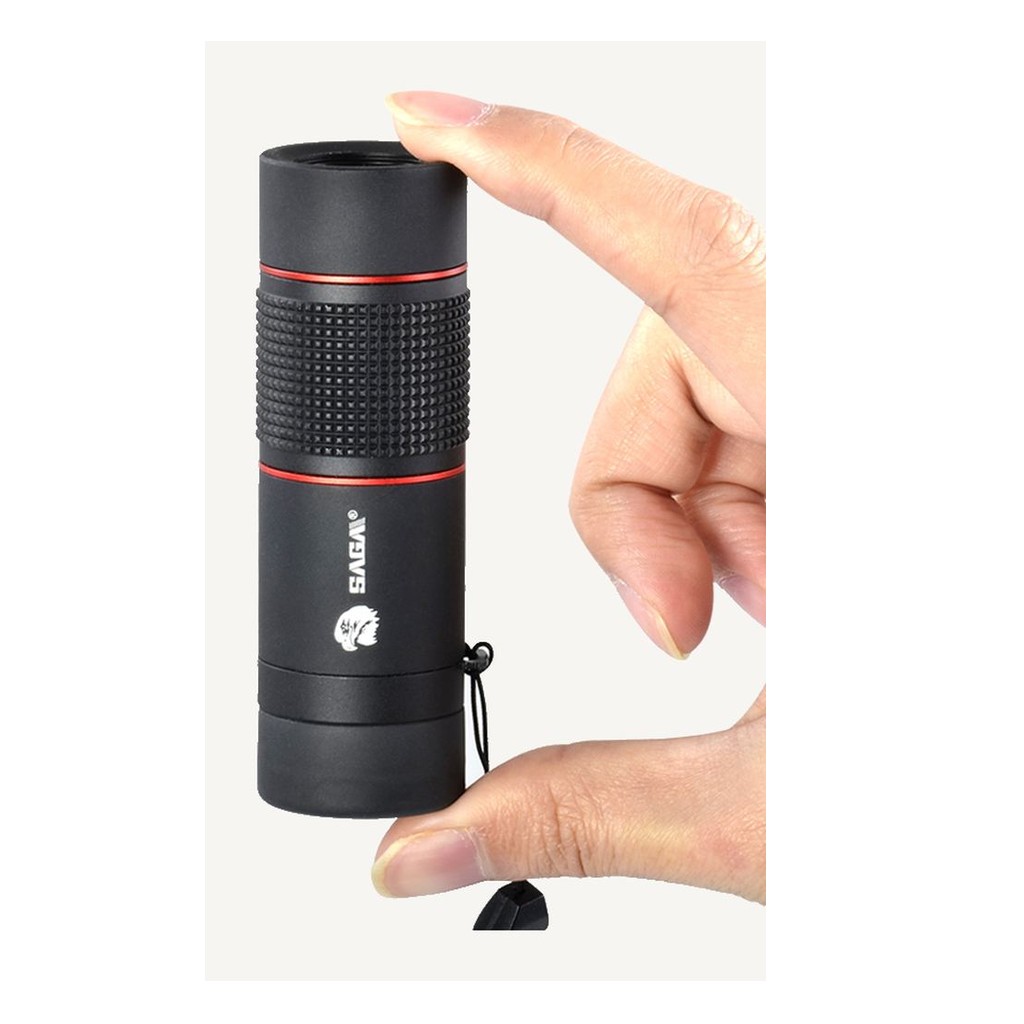

SAGA Xiaogangpao ED monocular series with 8x20ED, 8x42ED and 10x42ED fixed-power variants. Features a classic 6-group / 8-element optical design: 3-group 4-element eyepiece, 3-group 4-element objective with ED extra-low-dispersion glass, and precision roof prism, delivering approximately 85% light transmission. Phase-coated and dielectric-coated roof prism with fully multi-coated (FMC) broadband anti-reflection coatings ensures bright, sharp and true-color images. Full metal body with internal metal retaining rings for high precision and durability; built-in objective focusing is smooth and precise. Nitrogen-filled waterproof and fog-proof for outdoor use. The 8x20ED measures only 93×30mm and weighs 110g for ultimate pocket portability; the 8x42ED and 10x42ED share a 136×47mm, 330g body for brighter views. Ideal for travel, hiking, concerts, sports and everyday carry.
- ED extra-low dispersion glass, effectively controls chromatic aberration and distortion, sharp clear imaging
- 6-group/8-element classic optical structure, ~85% overall transmittance
- BAK4 roof prism with phase coating + high-reflectivity dielectric coating, excellent brightness and contrast
- FMC multi-layer broadband coating on all glass surfaces, reflectance down to ~0.4%
- All-metal body + metal retaining ring + metal twist-up eyecups, high precision and durable
- Built-in objective focusing system, smooth and stable imaging
- Nitrogen-filled waterproof and anti-fog, adapts to humid and temperature-differential outdoor conditions
- 8x20 ED only 93×30 mm / 110 g, pocket-portable
- 8x42 ED / 10x42 ED share 136×47 mm / 330 g metal body, solid grip
- 6-group/8-element classic optical structure, good light transmission
- FMC multi-layer broadband coating on all glass surfaces, reduces surface reflection
- 8x20 ED only 93×30 mm / 110 g, pocket-portable
- 8x42 ED / 10x42 ED 136×47 mm / 330 g metal body, solid grip
SAGA Xiaogangpao 8x20ED / 8x42ED / 10x42ED Monocular Product Features
ED extra-low dispersion glass
effectively controls chromatic aberration and distortion, sharp clear imaging
6-group/8-element classic optical structure
~85% overall transmittance
BAK4 roof prism with phase coating + high-reflectivity dielectric coating
excellent brightness and contrast
FMC multi-layer broadband coating on all glass surfaces
reflectance down to ~0.4%
All-metal body + metal retaining ring + metal twist-up eyecups
high precision and durable
Built-in objective focusing system
smooth and stable imaging
Nitrogen-filled waterproof and anti-fog
adapts to humid and temperature-differential outdoor conditions
8x20 ED only 93×30 mm / 110 g
pocket-portable
8x42 ED / 10x42 ED share 136×47 mm / 330 g metal body
solid grip
6-group/8-element classic optical structure
good light transmission
FMC multi-layer broadband coating on all glass surfaces
reduces surface reflection
8x20 ED only 93×30 mm / 110 g
pocket-portable
8x42 ED / 10x42 ED 136×47 mm / 330 g metal body
solid grip
SAGA Xiaogangpao 8x20ED / 8x42ED / 10x42ED Monocular Package Contents
Frequently Asked Questions
How many versions are available for this product?
3 versions: 8X20ED Compact, 8X42ED, 10X42ED. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 8x/ 10x; Objective Aperture: 20mm / 42mm; Optical Coating: FMC multi-layer broadband coating; Prism System: BaK-4 roof prism; Prism Coating: phase coating + high-reflectivitydielectric coating; Lens Material: extra-low dispersion ED glass. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Monocular Unit, Premium Case (8X42ED / 10X42ED) or Velvet Pouch (8X20ED), Eyepiece Cap / Objective Cap, User Manual, Packaging Box.
What are the main features?
ED extra-low dispersion glass, effectively controls chromatic aberration and distortion, sharp clear imaging; 6-group/8-element classic optical structure, ~85% overall transmittance; BAK4 roof prism with phase coating + high-reflectivity dielectric coating, excellent brightness and contrast.
