SAGA Hongyan II 20-60x80ED Spotting Scope Full Specifications
| Zoom Range | 20-60x |
|---|---|
| Zoom System | Stepless continuous zoom |
| Objective Aperture | 80mm |
| Eyepiece Design | 6-group 9-element, large eyepiece |
| Eyepiece Size | 23mm |
| Exit Pupil Diameter | 4-1.3mm |
| Eye Relief | 19-17mm |
| Field of View at 1000 m | 35-18m@1000m |
| Close Focus | 6m |
| Prism System | BAK4 |
| Optical Coating | Full-surface broadband green coating |
| Lens Material | Achromatic ED lens |
| Waterproof | Nitrogen-filled waterproof |
| Focus System | Coaxial dual-speed focus |
| Body Design | Compact short-body portable design |
| Body Material | Metal |
| Tripod Mount | 1/4" standard tripod mount |
| Dimensions | 390×100×180mm |
| Net Weight | 1670g |
| Model No. | Hongyan II |
Never look at the sun through the telescope — it can cause permanent eye damage or blindness.

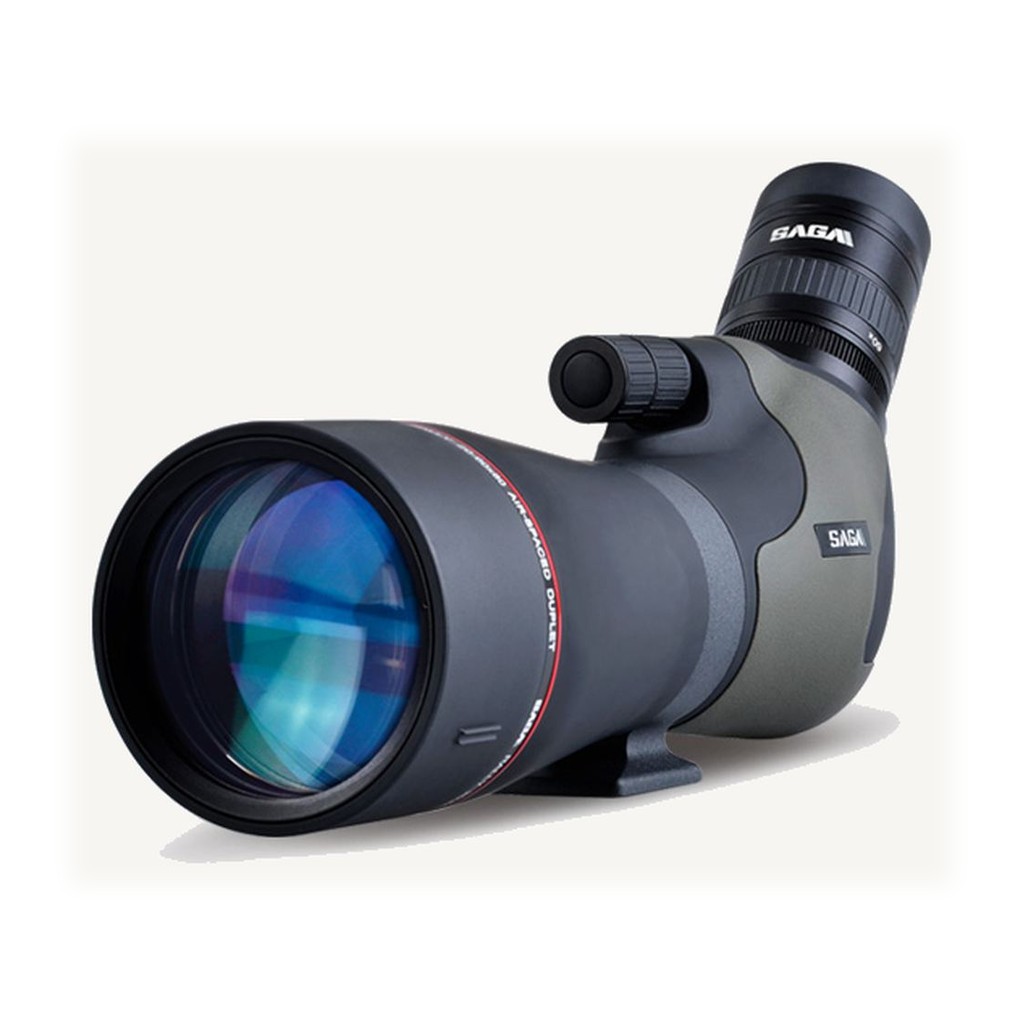

SAGA Hongyan II 20-60x80ED Spotting Scope Product Overview
SAGA Hongyan II is a professional ED spotting scope with 20-60x continuous zoom and an 80mm ED objective. Its 23mm large eyepiece with 6-group 9-element optics, fully broadband green multi-coating and FMC layers plus a 22.5mm BAK4 prism deliver sharp, true-color images. Coaxial dual-speed focusing, nitrogen-filled waterproofing and a metal body make it ideal for birdwatching, astronomy and scenic viewing on a tripod or camera adapter.
- 20–60x continuous zoom, 80 mm large ED spotting scope, all-terrain
- ED extra-low dispersion objective + 23 mm large eyepiece, 6-group/9-element eyepiece
- Full-surface broadband green coating + FMC multi-layer coating, high transmittance, reflectance <5%
- 22.5 mm BAK4 large prism, fully erect image, brighter and clearer
- Coaxial dual-speed focus, coarse + fine adjustment, fast target lock
- 4–1.3 mm exit pupil, 19–17 mm eye relief, comfortable observation
- 6 m close focus, excellent near-detail observation
- Nitrogen-filled waterproof and anti-fog, all-weather outdoor reliability
- Metal body, standard 1/4" tripod mount, sturdy and durable
- Pairs with DSLR / mirrorless photo kit (mount sold separately)
- 20–60x continuous zoom, 80 mm large ED spotting scope, fits varied observation
- ED extra-low dispersion objective + 23 mm large eyepiece, 6-group/9-element eyepiece structure
- Full-surface broadband green coating + FMC multi-layer coating, reduces light reflection loss
- 22.5 mm BAK4 large prism, fully erect output, optimizes image brightness
- Coaxial dual-speed focus system, coarse + fine, locks onto target smoothly
- 4–1.3 mm exit pupil, 19–17 mm eye relief, comfortable observation
- 6 m close focus, near-detail observation
- Nitrogen-filled waterproof and anti-fog structure, fits varied outdoor environments
- Metal body, with standard 1/4" tripod mount, sturdy structure
- Pairs with DSLR / mirrorless photo kit (mount sold separately), records observation
SAGA Hongyan II 20-60x80ED Spotting Scope Product Features
20–60x continuous zoom
80 mm large ED spotting scope, all-terrain
ED extra-low dispersion objective + 23 mm large eyepiece
6-group/9-element eyepiece
Full-surface broadband green coating + FMC multi-layer coating
high transmittance, reflectance <5%
22.5 mm BAK4 large prism
fully erect image, brighter and clearer
Coaxial dual-speed focus
coarse + fine adjustment, fast target lock
4–1.3 mm exit pupil
19–17 mm eye relief, comfortable observation
6 m close focus
excellent near-detail observation
Nitrogen-filled waterproof and anti-fog
all-weather outdoor reliability
Metal body
standard 1/4" tripod mount, sturdy and durable
Pairs with DSLR / mirrorless photo kit (mount sold separately)
20–60x continuous zoom
80 mm large ED spotting scope, fits varied observation
ED extra-low dispersion objective + 23 mm large eyepiece
6-group/9-element eyepiece structure
Full-surface broadband green coating + FMC multi-layer coating
reduces light reflection loss
22.5 mm BAK4 large prism
fully erect output, optimizes image brightness
Coaxial dual-speed focus system
coarse + fine, locks onto target smoothly
4–1.3 mm exit pupil
19–17 mm eye relief, comfortable observation
6 m close focus
near-detail observation
Nitrogen-filled waterproof and anti-fog structure
fits varied outdoor environments
Metal body
with standard 1/4" tripod mount, sturdy structure
Pairs with DSLR / mirrorless photo kit (mount sold separately)
records observation
SAGA Hongyan II 20-60x80ED Spotting Scope Package Contents
Frequently Asked Questions
What are the key specifications?
Zoom Range: 20-60x; Zoom System: Stepless continuous zoom; Objective Aperture: 80mm; Eyepiece Design: 6-group 9-element, large eyepiece; Eyepiece Size: 23mm; Exit Pupil Diameter: 4-1.3mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Spotting Scope Unit, Eyepiece Cap, Objective Cap, Lens Cloth, Portable Case, Case Shoulder Strap, User Manual, Packaging Box.
What are the main features?
20–60x continuous zoom, 80 mm large ED spotting scope, all-terrain; ED extra-low dispersion objective + 23 mm large eyepiece, 6-group/9-element eyepiece; Full-surface broadband green coating + FMC multi-layer coating, high transmittance, reflectance <5%.
