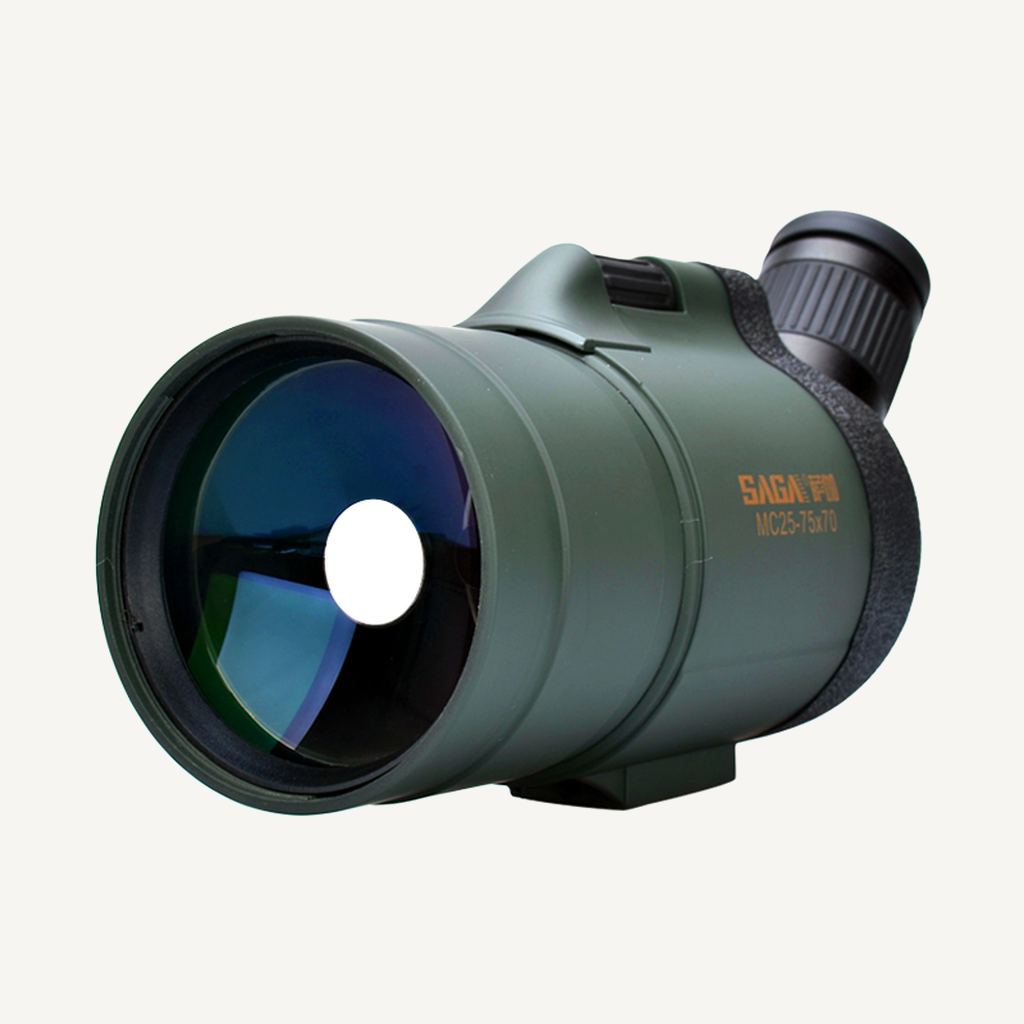

SAGA Mak-Cass II 25-75x70 Spotting Scope
Companion Software
Key Specs
Product Videos
SAGA Mak-Cass II 25-75x70 Spotting Scope Full Specifications
| Zoom Range | 25-75x |
|---|---|
| Zoom System | Stepless continuous zoom |
| Objective Aperture | 70mm |
| Optical Structure | Maksutov-Cassegrain catadioptric |
| Eyepiece Size | 22mm |
| Eyepiece OD | 47mm |
| Prism Type | BaK-4 prism (20mm large) |
| Optical Coating | FMC multi-layer broadband green coating |
| Objective Focal Length | 780mm (f/11.2) |
| Field of View | 20-35m@1000m |
| Exit Pupil Diameter | 2.8-0.93mm |
| Eye Relief | 15-13mm |
| Close Focus | 4.5m |
| Waterproof | Nitrogen-filled waterproof |
| Body Material | Metal + ABS engineering plastic |
| Tripod Mount | 1/4" standard tripod mount |
| Dimensions | 250 x 83 x 135mm (L x W x H) |
| Net Weight | 850g |
| Model No. | Maksutov II |
Never look at the sun through the telescope — it can cause permanent eye damage or blindness.
SAGA Mak-Cass II 25-75x70 Spotting Scope Product Overview
The SAGA Mak-Cass II 25-75x70 spotting scope uses a Maksutov-Cassegrain catadioptric design that packs a 780mm objective focal length into a 250mm body, delivering true 25-75x continuous zoom with powerful close-up views. A 70mm objective, 5-element eyepiece (with 2 cemented groups) and 22mm eyepiece produce bright, comfortable images, while FMC broadband multi-coating and a large 20mm BAK4 prism enhance light transmission and clarity. With a 33% wider field of view than its predecessor and a 30mm shorter body, it balances high magnification with portability. Nitrogen-filled waterproofing makes it ideal for birdwatching, scenic viewing and lunar observation.
- Maksutov catadioptric structure, 250 mm short body delivers 780 mm objective focal length, high effective magnification
- True 25–75x continuous zoom, strong high-mag pull-in, no false specs
- 70 mm large objective, large light intake, bright and clear imaging
- 5-element eyepiece (with 2 cemented groups), upgrade from previous generation, sharper
- 22 mm large eyepiece, 4 mm larger than previous generation, more comfortable long viewing
- FMC multi-layer broadband green coating, high transmittance, significant upgrade over previous blue coating
- Field of view at 1 km: 20–35 m, 33% improvement over previous generation
- 20 mm BAK4 large prism, clear imaging, good contrast
- Body 30 mm shorter than previous generation, smaller size among same-aperture spotting scopes, more portable
- Nitrogen-filled waterproof and anti-fog, fits humid outdoor conditions
- Maksutov catadioptric structure, 250 mm short body delivers 780 mm objective focal length, higher effective magnification
- 25–75x continuous zoom, supports multi-magnification adjustment
- 70 mm large objective, optimizes light intake
- 5-element eyepiece (with 2 cemented groups), optical configuration upgrade over previous generation
- 22 mm large eyepiece; 4 mm larger than previous generation
- FMC multi-layer broadband green coating, reduces light loss; replaces previous generation blue coating
- Field of view at 1 km: 20–35 m; 33% improvement over previous generation
- 20 mm BAK4 large prism, optimizes image clarity and contrast
- Compared to previous generation, body length reduced by 30 mm, more compact
- Nitrogen-filled waterproof and anti-fog structure, fits humid outdoor conditions
SAGA Mak-Cass II 25-75x70 Spotting Scope Product Features
Maksutov catadioptric structure
250 mm short body delivers 780 mm objective focal length, high effective magnification
True 25–75x continuous zoom
strong high-mag pull-in, no false specs
70 mm large objective
large light intake, bright and clear imaging
5-element eyepiece (with 2 cemented groups)
upgrade from previous generation, sharper
22 mm large eyepiece
4 mm larger than previous generation, more comfortable long viewing
FMC multi-layer broadband green coating
high transmittance, significant upgrade over previous blue coating
Field of view at 1 km
20–35 m, 33% improvement over previous generation
20 mm BAK4 large prism
clear imaging, good contrast
Body 30 mm shorter than previous generation
smaller size among same-aperture spotting scopes, more portable
Nitrogen-filled waterproof and anti-fog
fits humid outdoor conditions
Maksutov catadioptric structure
250 mm short body delivers 780 mm objective focal length, higher effective magnification
25–75x continuous zoom
supports multi-magnification adjustment
70 mm large objective
optimizes light intake
5-element eyepiece (with 2 cemented groups)
optical configuration upgrade over previous generation
22 mm large eyepiece; 4 mm larger than previous generation
FMC multi-layer broadband green coating
reduces light loss; replaces previous generation blue coating
Field of view at 1 km
20–35 m; 33% improvement over previous generation
20 mm BAK4 large prism
optimizes image clarity and contrast
Compared to previous generation
body length reduced by 30 mm, more compact
Nitrogen-filled waterproof and anti-fog structure
fits humid outdoor conditions
SAGA Mak-Cass II 25-75x70 Spotting Scope Package Contents
Frequently Asked Questions
What are the key specifications?
Zoom Range: 25-75x; Zoom System: Stepless continuous zoom; Objective Aperture: 70mm; Optical Structure: Maksutov-Cassegrain catadioptric; Eyepiece Size: 22mm; Eyepiece OD: 47mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Telescope Unit, Eyepiece Cap, Objective Cap, Premium Soft Case, Case Strap, Instruction Manual, Lens Cloth, Packaging Box.
What are the main features?
Maksutov catadioptric structure, 250 mm short body delivers 780 mm objective focal length, high effective magnification; True 25–75x continuous zoom, strong high-mag pull-in, no false specs; 70 mm large objective, large light intake, bright and clear imaging.
