SAGA HDMI CCD Digital Microscope Camera (Blue)
Companion Software
Choose Variant
Selected:4K
Key Specs
Product Videos
SAGA HDMI CCD Digital Microscope Camera (Blue) Full Specifications
| Parameter | 4K | 1080P |
|---|---|---|
| ModelDiff | HUD-4K-SPC | HUD-1080P-SBC |
| Body Color | Blue metal | Blue metal |
| Image Sensor | SONY IMX678 CMOS | SONY IMX678 CMOS |

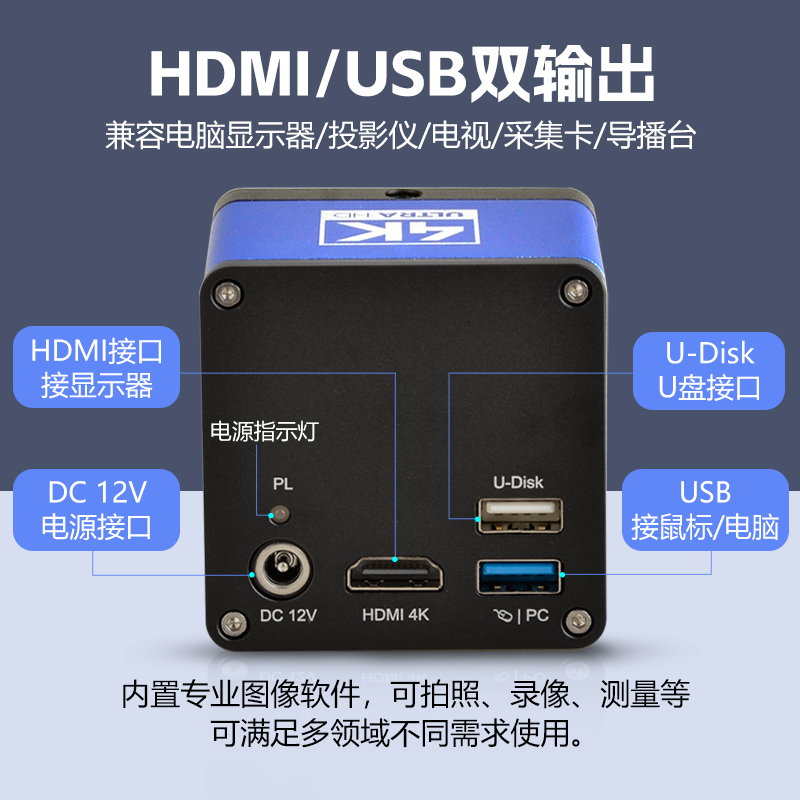

| Output Interface | HDMI / USB dual output | HDMI / USB dual output |
| Supported Outputs | PC monitor / projector / TV / capture card / switcher | PC monitor / projector / TV / capture card / switcher |
| Camera Interface | Standard C-mount | Standard C-mount |
| Power Supply | DC 12V power adapter | DC 12V power adapter |
| Sensor | SONY IMX678 | SONY IMX678 |
| Storage ModeDiff | USB flash drive | Micro SD / TF card |
| Operating System | Hypervision 2.0 | Hypervision 2.0 |
| Functions | Photo, video, live preview, pro measurement | Photo, video, live preview, pro measurement |
| Measuring Function | Length, angle, radius, area, perimeter, two-point distance | Length, angle, radius, area, perimeter, two-point distance |
| Application | Industrial inspection, electronics repair, PCB, semiconductors, research, specimen observation | Industrial inspection, electronics repair, PCB, semiconductors, research, specimen observation |
| PixelDiff | 8.3MP | 2MP |
| ResolutionDiff | 3840×2160 | 1920×1080 |
| Sensor FormatDiff | 1/1.8″ | 1/2.8″ |
| Body DimensionsDiff | 63×63×52mm | 52×52×54mm |
SAGA HDMI CCD Digital Microscope Camera (Blue) Product Overview

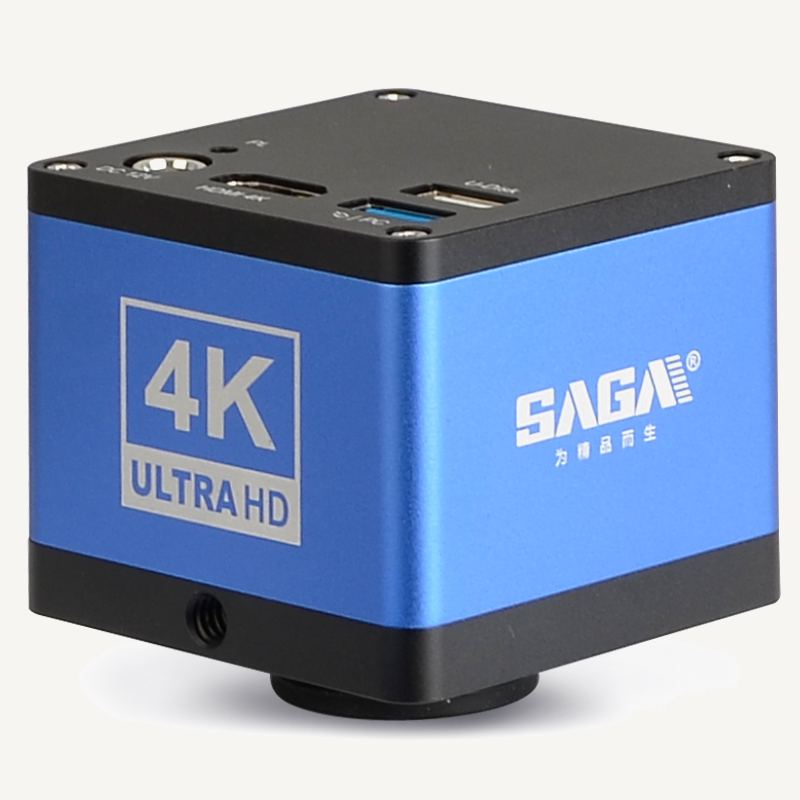

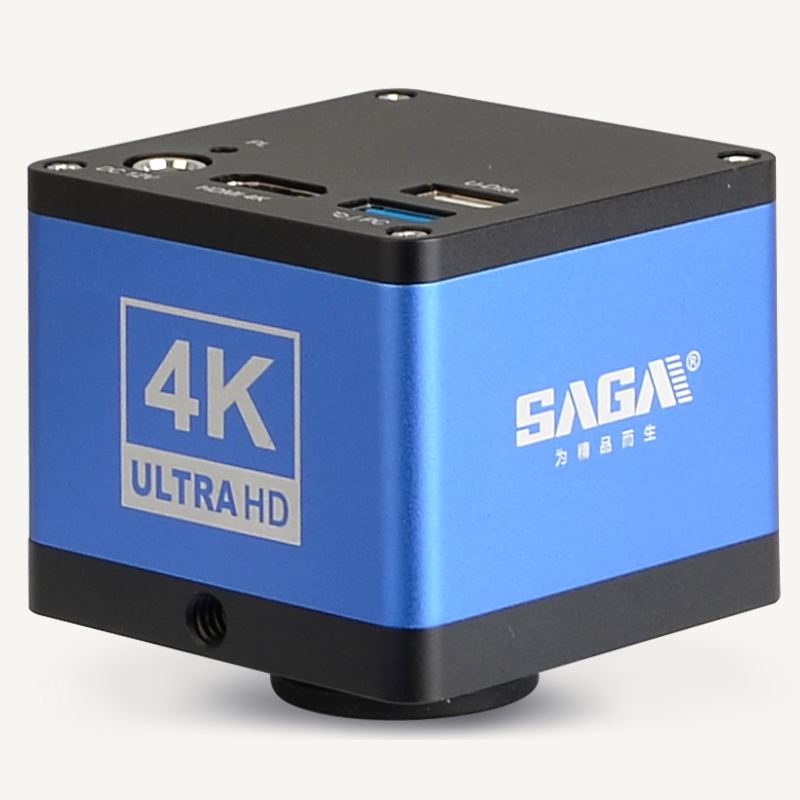

SAGA HDMI CCD Digital Eyepiece (Blue Version). Plug‑and‑play unit that outputs images from microscopes and stereo microscopes directly to monitors, projectors, TVs, capture cards or switchers without a PC. Equipped with Sony IMX678 high‑sensitivity CMOS sensor in a classic blue metal housing. Two versions are available: 4K (8.3 MP, 3840×2160, large 1/1.8″ sensor target) and 1080P (2 MP, 1920×1080, 1/2.8″ sensor). Both support HDMI high‑definition output and USB connection for real‑time PC preview. Bundled professional image processing software enables photo capture, video recording and metrology functions: length, angle, circumference, area, radius, two‑point distance and more. Suitable for industrial inspection and scientific‑teaching applications including hardware, plastics, electronic components, PCB, semiconductors, medical research and specimen observation. Standard accessories: lens cap, tube adapter and power adapter. A practical upgrade for microscope HDMI output, classroom projection and industrial measurement tasks.
- Sony IMX678 high‑sensitivity CMOS sensor housed in classic blue metal casing
- Direct HDMI output, works with monitor / projector / TV / capture card / switcher, no computer required

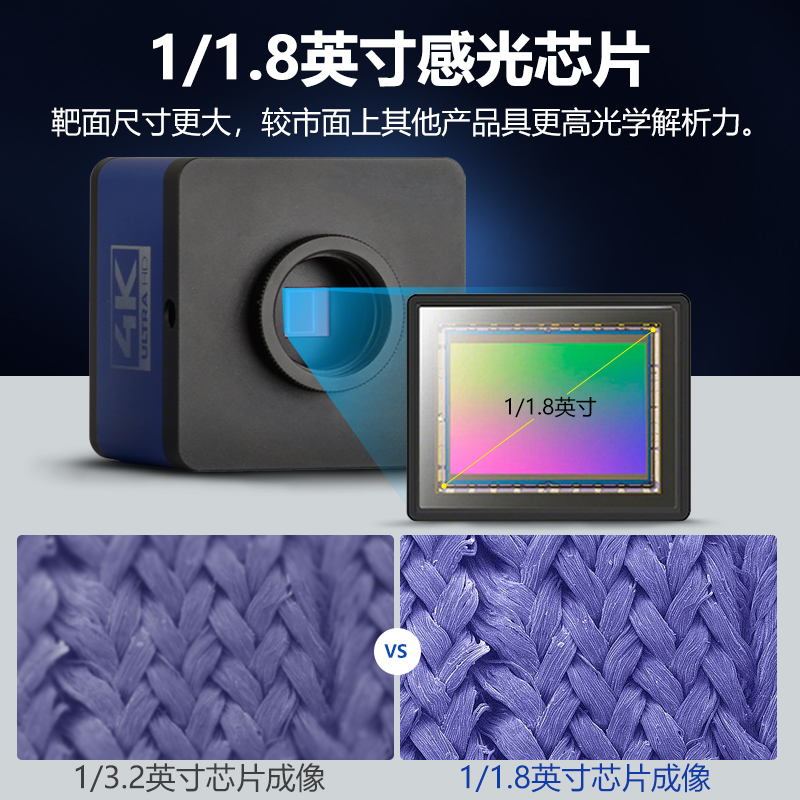

- 4K Version: 8.3 MP, 3840×2160 resolution, large 1/1.8″ sensor target
- 1080P Version: 2 MP, 1920×1080 resolution, 1/2.8″ sensor
- Photo & video recording; dual HDMI + USB output for real‑time preview on PC
- Professional bundled software: measure length, angle, radius, area, circumference, two‑point distance etc.

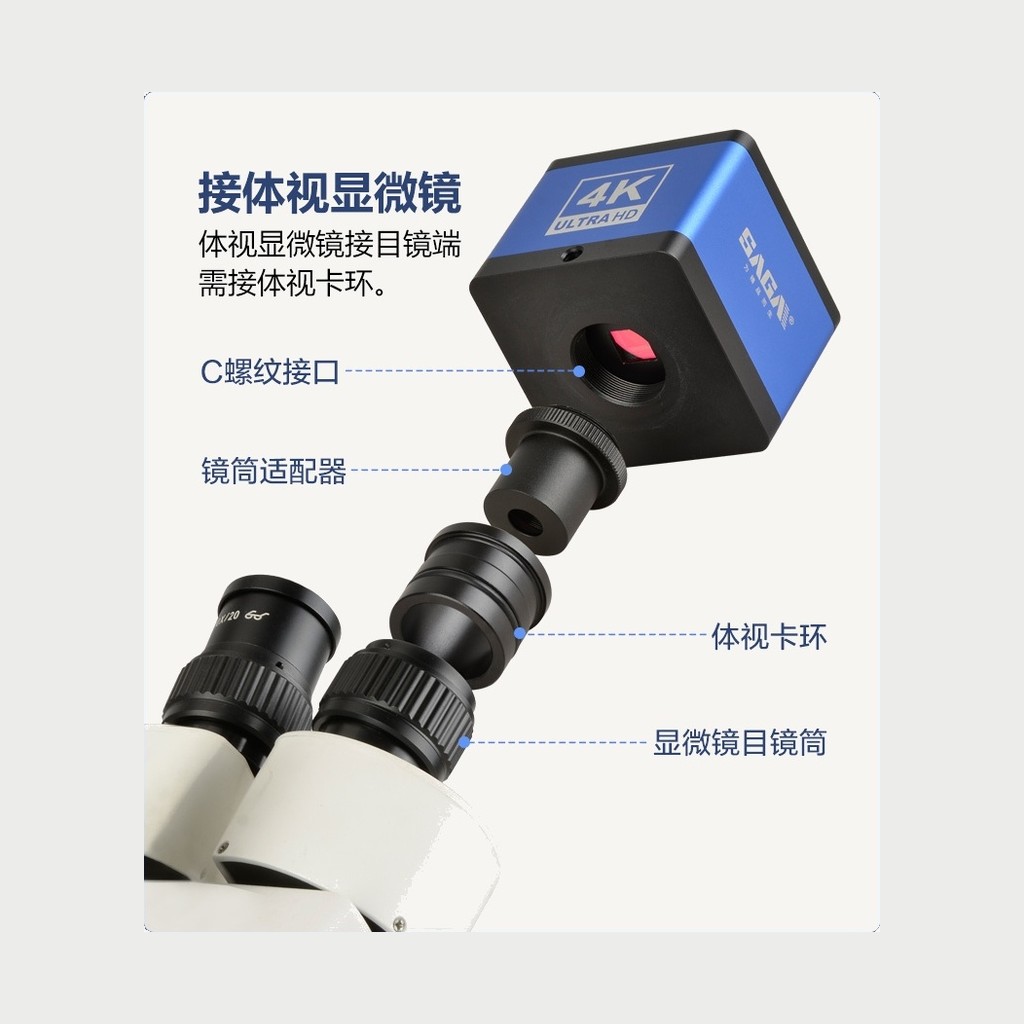

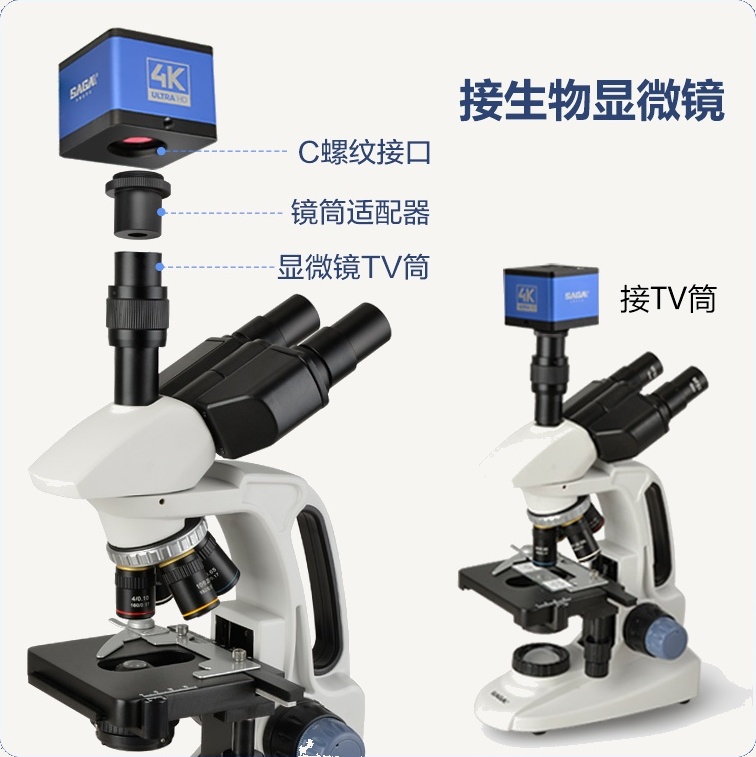

- Universal C‑mount interface with tube adapter, compatible with most microscopes & stereo microscopes
- Supplied with lens cap, tube adapter and power adapter for plug‑and‑play operation
SAGA HDMI CCD Digital Microscope Camera (Blue) Product Features
Sony IMX678 high‑sensitivity CMOS sensor housed in classic blue metal casing
Direct HDMI output
works with monitor / projector / TV / capture card / switcher, no computer required
4K Version
8.3 MP, 3840×2160 resolution, large 1/1.8″ sensor target
1080P Version
2 MP, 1920×1080 resolution, 1/2.8″ sensor
Photo & video recording; dual HDMI + USB output for real‑time preview on PC
Professional bundled software
measure length, angle, radius, area, circumference, two‑point distance etc.
Universal C‑mount interface with tube adapter
compatible with most microscopes & stereo microscopes
Supplied with lens cap
tube adapter and power adapter for plug‑and‑play operation
SAGA HDMI CCD Digital Microscope Camera (Blue) Package Contents
Frequently Asked Questions
How many versions are available for this product?
2 versions: 4K, 1080P. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Model: HUD-4K-SPC / HUD-1080P-SBC; Body Color: Blue metal; Image Sensor: SONY IMX678 CMOS; Output Interface: HDMI HD output + USB to PC; Camera Interface: Standard C-mount; Power Supply: DC 12V power adapter. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: HDMI-output CCD Eyepiece Camera Unit, HDMI HD Video Cable, Power Adapter, USB 2.0 Cable, Software CD, Camera Lens Cap, Tube Adapter, 16G memory card.
What are the main features?
Sony IMX678 high‑sensitivity CMOS sensor housed in classic blue metal casing; Direct HDMI output, works with monitor / projector / TV / capture card / switcher, no computer required; 4K Version: 8.3 MP, 3840×2160 resolution, large 1/1.8″ sensor target.
