SAGA WiFi Digital Eyepiece for Telescopes

SAGA HDMI CCD Digital Microscope Camera (Blue)

4K / 1080P dual format / Sony IMX678 / Direct HDMI output / 1/1.8" & 1/2.8" / Universal C-mount

SAGA HDMI CCD Digital Eyepiece (Blue Version). Plug‑and‑play unit that outputs images from microscopes and stereo microscopes directly to monitors, projectors, TVs, capture cards or switchers without a PC. Equipped with Sony IMX678 high‑sensitivity CMOS sensor in a classic blue metal housing. Two versions are available: 4K (8.3 MP, 3840×2160, large 1/1.8″ sensor target) and 1080P (2 MP, 1920×1080, 1/2.8″ sensor). Both support HDMI high‑definition output and USB connection for real‑time PC preview. Bundled professional image processing software enables photo capture, video recording and metrology functions: length, angle, circumference, area, radius, two‑point distance and more. Suitable for industrial inspection and scientific‑teaching applications including hardware, plastics, electronic components, PCB, semiconductors, medical research and specimen observation. Standard accessories: lens cap, tube adapter and power adapter. A practical upgrade for microscope HDMI output, classroom projection and industrial measurement tasks.

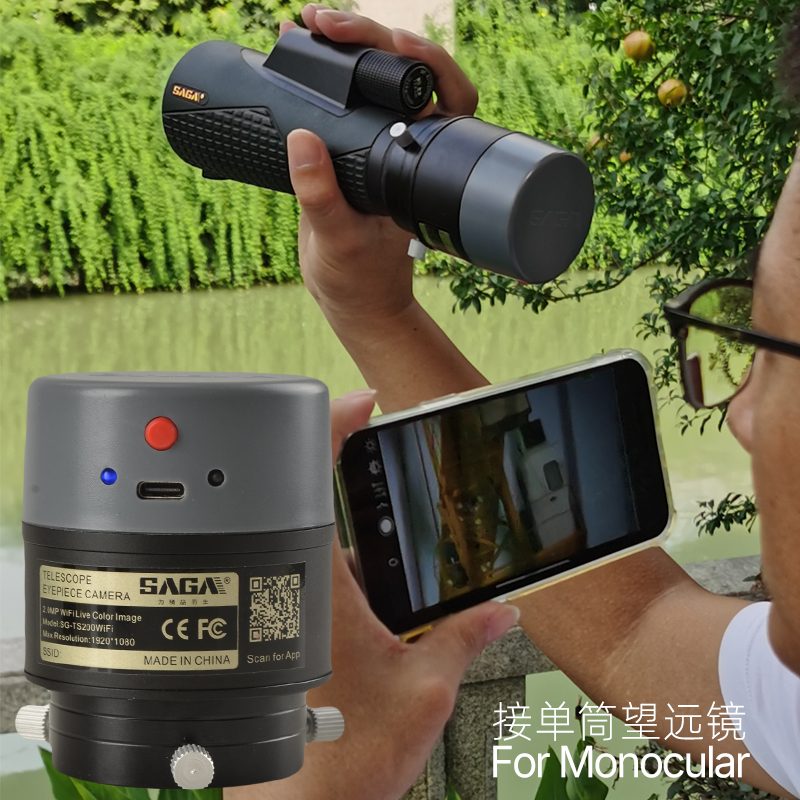

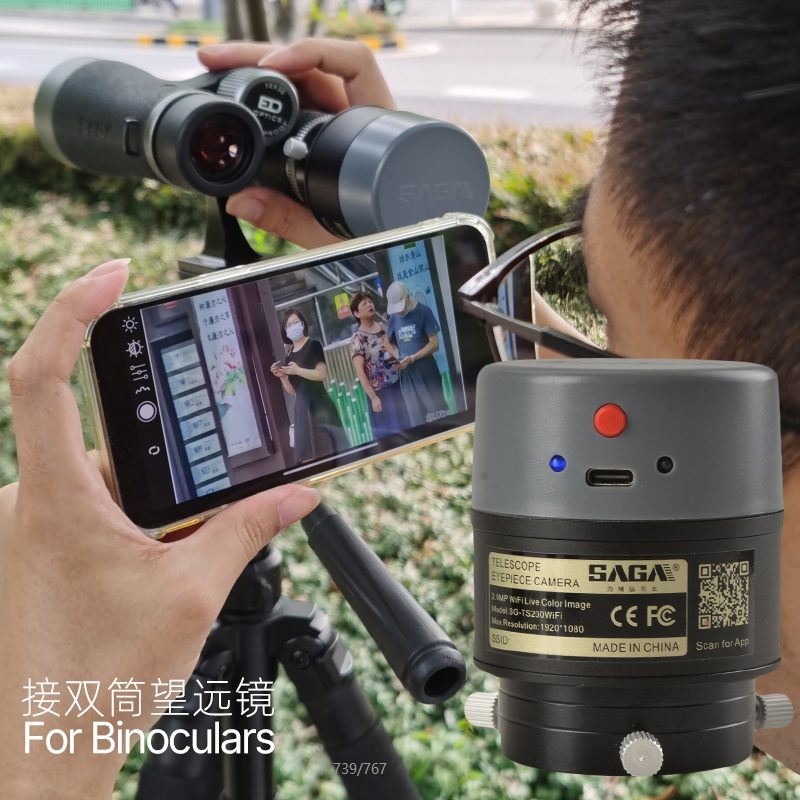

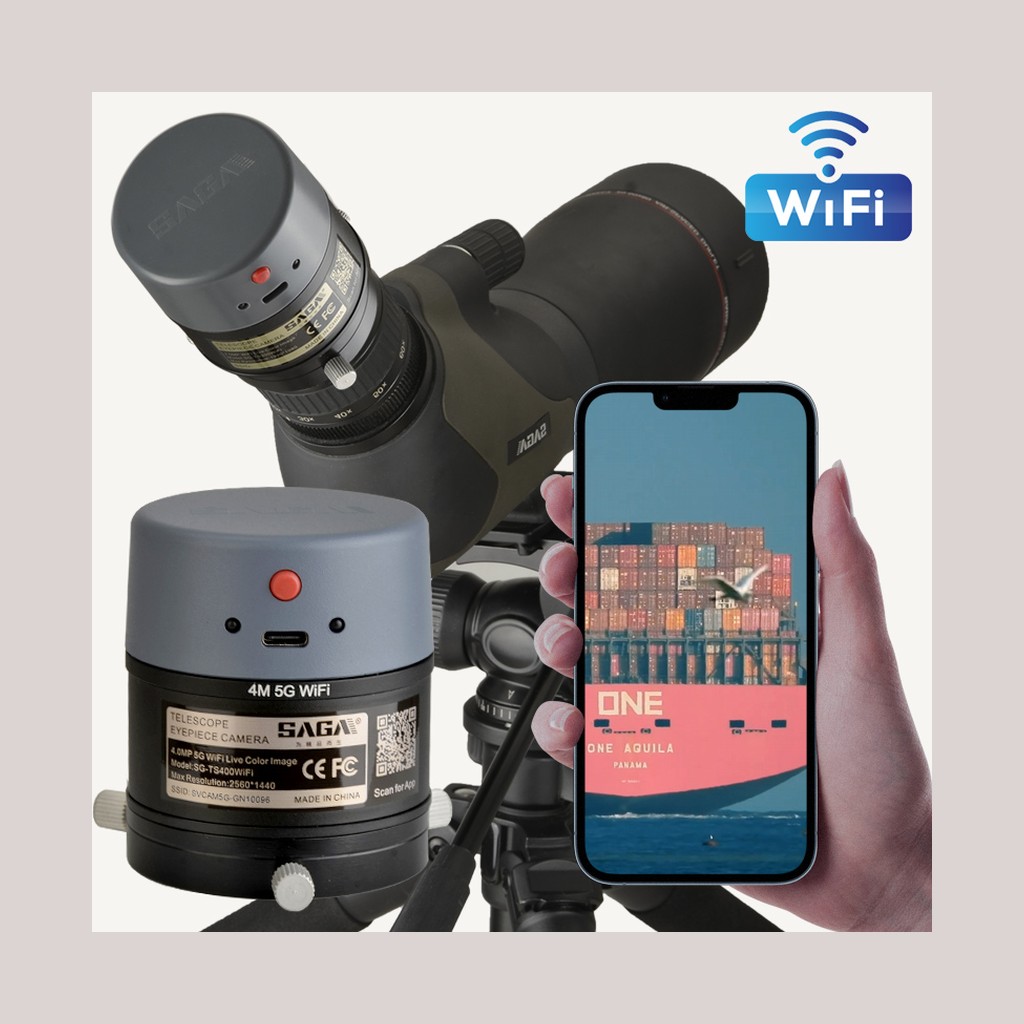

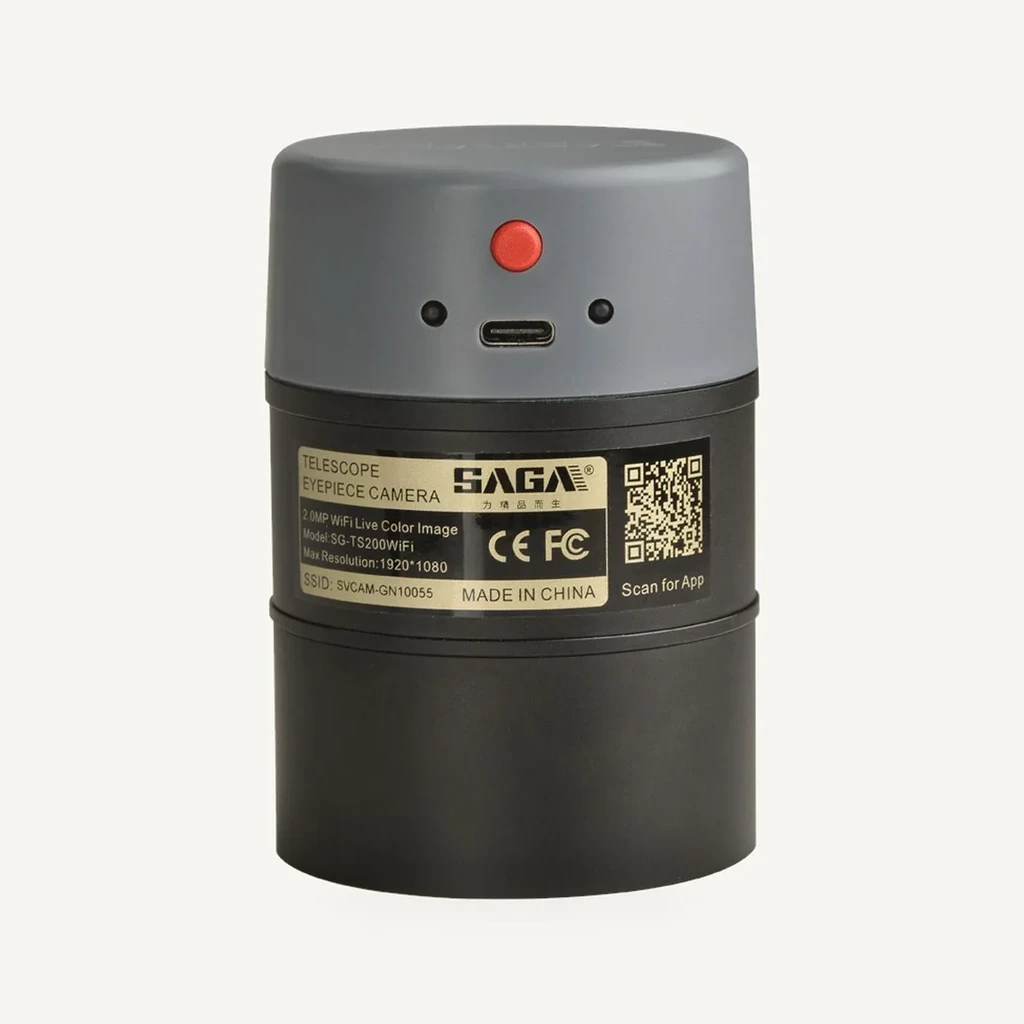

SAGA WiFi Digital Eyepiece for Microscope & Telescope (Antenna)

WiFi direct / 2.4G & 5G dual-band / 2MP & 4MP / for both microscopes and astronomical telescopes

SAGA WiFi Digital Eyepiece (Antenna Version). Plug‑and‑play for biological microscopes and astronomical telescopes. Wirelessly connect to smartphones or tablets for real‑time preview, photo capture and video recording. Dual‑band WiFi provides high‑speed anti‑interference transmission with approximately 30‑meter signal range, enabling comfortable viewing away from the optical device. Two optional versions: 2.4G with 2 MP sensor; 5G with 4 MP sensor (2560×1440). The 5G version delivers 2K high‑definition output for improved detail performance. Supports up to 3 mobile devices connected simultaneously for shared viewing experience.

SAGA 195 Plan-Achromatic Microscope Objectives

4X-100X six-step magnification / Universal 20.2mm RMS thread / 195 Plan Achromatic optical system

SAGA 195 Plan‑Achromatic Objective for microscopes, built on standard 195 optical system. The objective barrel is made of solid copper with chrome‑plated finish for robust durability. It adopts universal 20.2 mm RMS standard thread for direct fitting on standard biological microscopes. Six magnification options are available: 4X, 10X, 20X, 40X, 60X and 100X. The 40X / 60X / 100X versions feature spring‑loaded mechanism to protect lens and glass slides; the 100X is designed for oil‑immersion observation. It delivers flat and sharp image quality to meet diverse observation needs for teaching, laboratory experiments and scientific research.

SAGA Infinity Plan Achromatic Objectives for Microscopes (4X-100X)

4X-100X six-step magnification / Universal 20.2mm RMS thread / Infinity Plan Achromatic optical system

SAGA Infinity‑Corrected Plan‑Achromatic Objective is designed for microscopes with infinity‑corrected (∞) optical system. The objective barrel is made of solid copper with chrome‑plated finish for robust durability. It adopts universal 20.2 mm RMS standard thread to fit biological microscopes of infinity optical system. Six magnification options are available: 4X, 10X, 20X, 40X, 60X and 100X. The 40X / 60X / 100X versions feature spring‑loaded mechanism to protect lens and glass slides; the 100X supports oil‑immersion observation. It delivers flat, sharp‑edged images with low chromatic aberration to meet observation requirements in teaching, laboratory experiments and scientific research.
