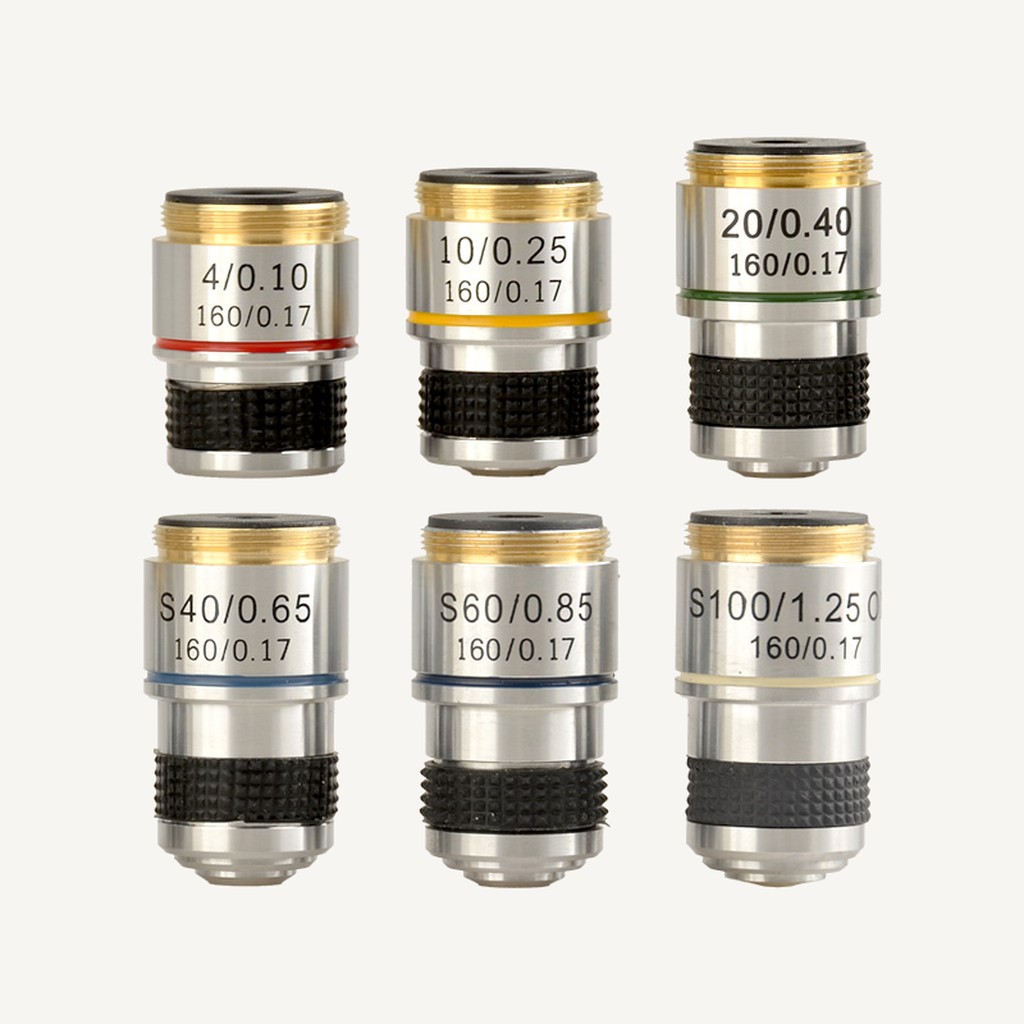

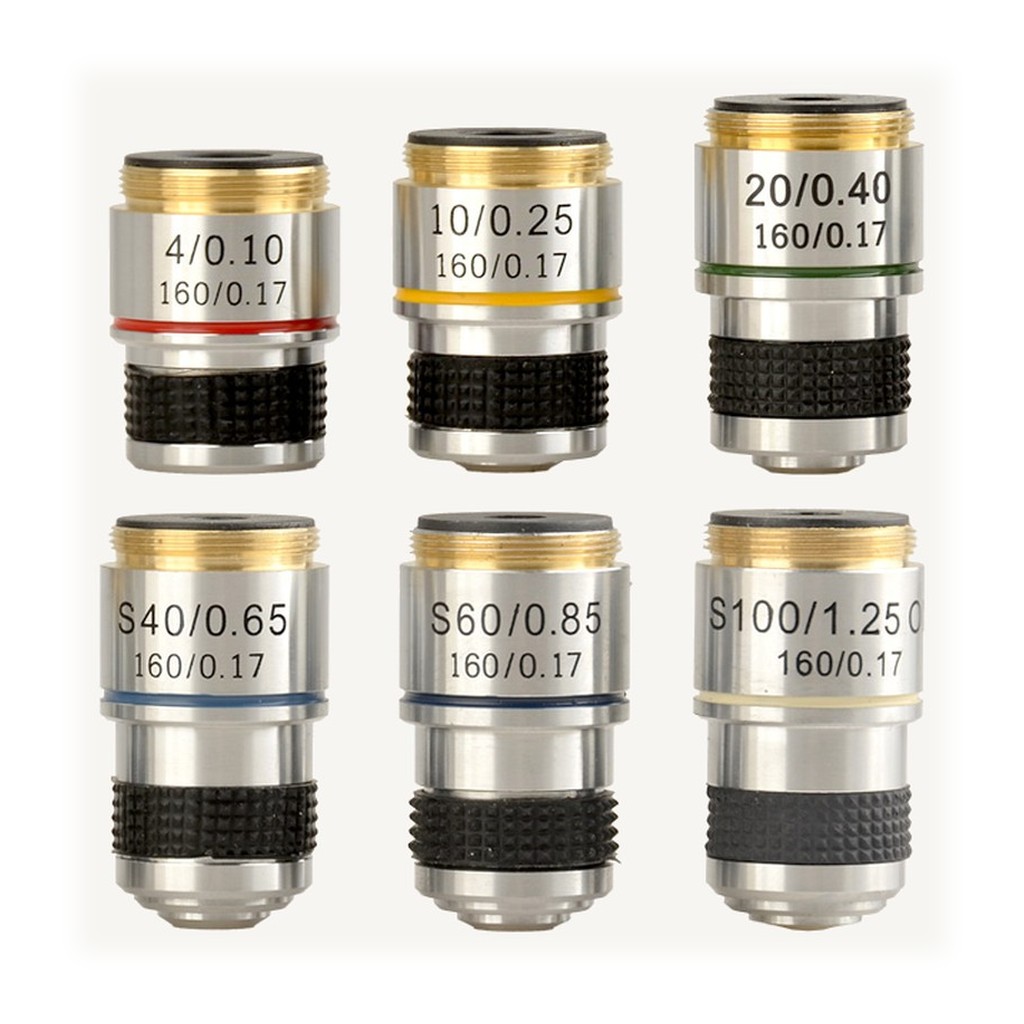

SAGA 185 Achromatic Microscope Objectives
Companion Software
Choose Variant
Selected:185 Achromatic 4X
Key Specs
Product Videos
SAGA 185 Achromatic Microscope Objectives Full Specifications
| Parameter | 185 Achromatic 4X | 185 Achromatic 10X | 185 Achromatic 20X | 185 Achromatic 40X | 185 Achromatic 60X | 185 Achromatic 100X |
|---|---|---|---|---|---|---|
| TypeDiff | 185 achromatic objective | 185 achromatic objective | 185 achromatic objective | 185 achromatic objective | 185 achromatic objective | 185 achromatic objective (oil) |
| MagnificationDiff | 4X | 10X | 20X | 40X | 60X | 100X |
| NADiff | 0.10 | 0.25 | 0.40 | 0.65 | 0.85 | 1.25 |
| Working DistanceDiff | 17.35mm | 2.04mm | 0.65mm | 0.56mm | 0.19mm | 0.18mm |
| Lens Length (excl. thread)Diff | 25mm | 27mm | 31mm | 34mm | 35mm | 35mm |
| Immersion MediumDiff | — | — | — | — | — | Oil |
| Spring-loaded (retractable)Diff | No | No | No | Yes | Yes | Yes |
| Color RingDiff | Red | Yellow | Green | Blue | Black | White |
| Optical System | Finite 160/0.17 | Finite 160/0.17 | Finite 160/0.17 | Finite 160/0.17 | Finite 160/0.17 | Finite 160/0.17 |
| Mechanical Tube Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
| Cover Glass | 0.17mm | 0.17mm | 0.17mm | 0.17mm | 0.17mm | 0.17mm |
| Interface | Standard RMS thread (20.2mm) | Standard RMS thread (20.2mm) | Standard RMS thread (20.2mm) | Standard RMS thread (20.2mm) | Standard RMS thread (20.2mm) | Standard RMS thread (20.2mm) |
| Body | Copper body + chrome-plated metal | Copper body + chrome-plated metal | Copper body + chrome-plated metal | Copper body + chrome-plated metal | Copper body + chrome-plated metal | Copper body + chrome-plated metal |
| Compatible | Standard biological microscope (160mm finite system) | Standard biological microscope (160mm finite system) | Standard biological microscope (160mm finite system) | Standard biological microscope (160mm finite system) | Standard biological microscope (160mm finite system) | Standard biological microscope (160mm finite system) |
SAGA 185 Achromatic Microscope Objectives Product Overview
SAGA 185 Achromatic Objective features standard 160/0.17 finite optical system. The copper‑made barrel adopts chrome‑plating process and fits mainstream biological microscopes.
- 185‑series achromatic objective, sharp imaging with accurate color reproduction for stained specimen observation
- Standard 160/0.17 finite optical system, compatible with mainstream biological microscopes
- Copper barrel with chrome‑plated finish, rust‑resistant and durable; magnification & NA marked on barrel
- Standard 20.2 mm RMS thread interface for easy installation and replacement
- Spring‑loaded structure for 40X / 60X / 100X to protect lens and specimens; 100X is oil‑immersion objective
SAGA 185 Achromatic Microscope Objectives Product Features
185‑series achromatic objective
sharp imaging with accurate color reproduction for stained specimen observation
Standard 160/0.17 finite optical system
compatible with mainstream biological microscopes
Copper barrel with chrome‑plated finish
rust‑resistant and durable; magnification & NA marked on barrel
Standard 20.2 mm RMS thread interface for easy installation and replacement
Spring‑loaded structure for 40X / 60X / 100X to protect lens and specimens; 100X is oil‑immersion objective
SAGA 185 Achromatic Microscope Objectives Package Contents
Frequently Asked Questions
How many versions are available for this product?
6 versions: 185 Achromatic 4X, 185 Achromatic 10X, 185 Achromatic 20X, 185 Achromatic 40X, 185 Achromatic 60X, 185 Achromatic 100X. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Type: 185 achromatic objective; Magnification: 4X / 10X / 20X / 40X / 60X / 100X; NA: 0.10/ 0.25/ 0.40/ 0.65/ 0.85/ 1.25(oil); Color Ring: Red / Yellow / Green / Blue / Dark blue / Yellow (oil); Optical System: Finite 160/0.17; Mechanical Tube Length: 160mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: 185 Achromatic Objective ×1, Dust-proof Box.
What are the main features?
185‑series achromatic objective, sharp imaging with accurate color reproduction for stained specimen observation; Standard 160/0.17 finite optical system, compatible with mainstream biological microscopes; Copper barrel with chrome‑plated finish, rust‑resistant and durable; magnification & NA marked on barrel.
