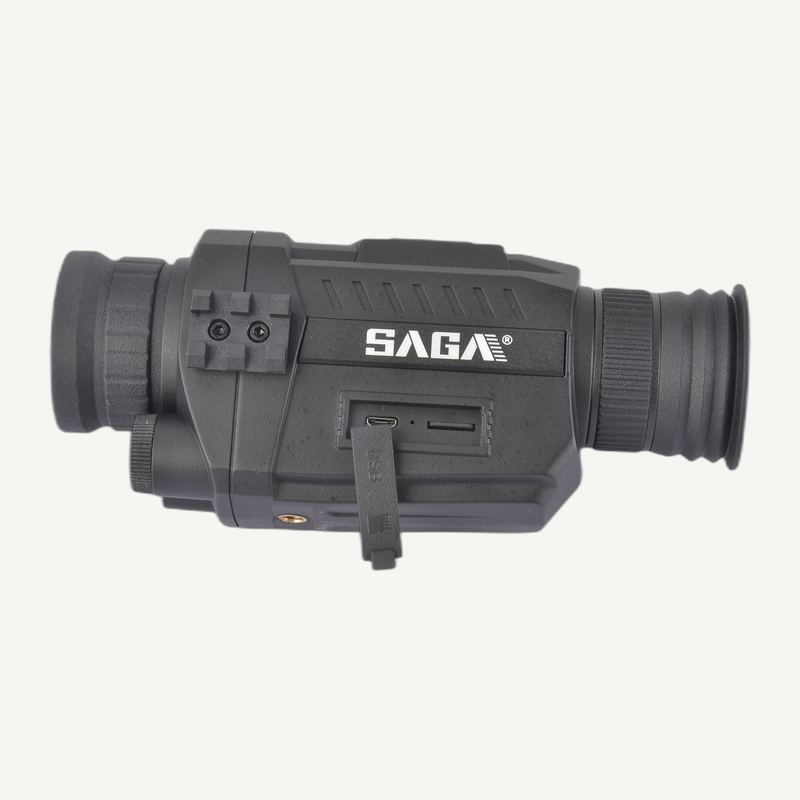

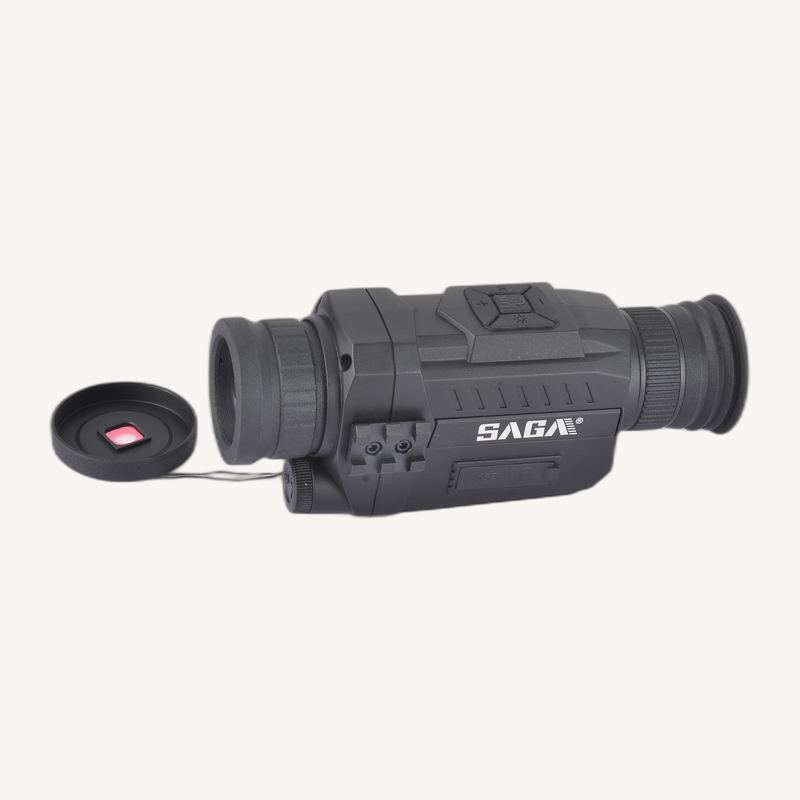

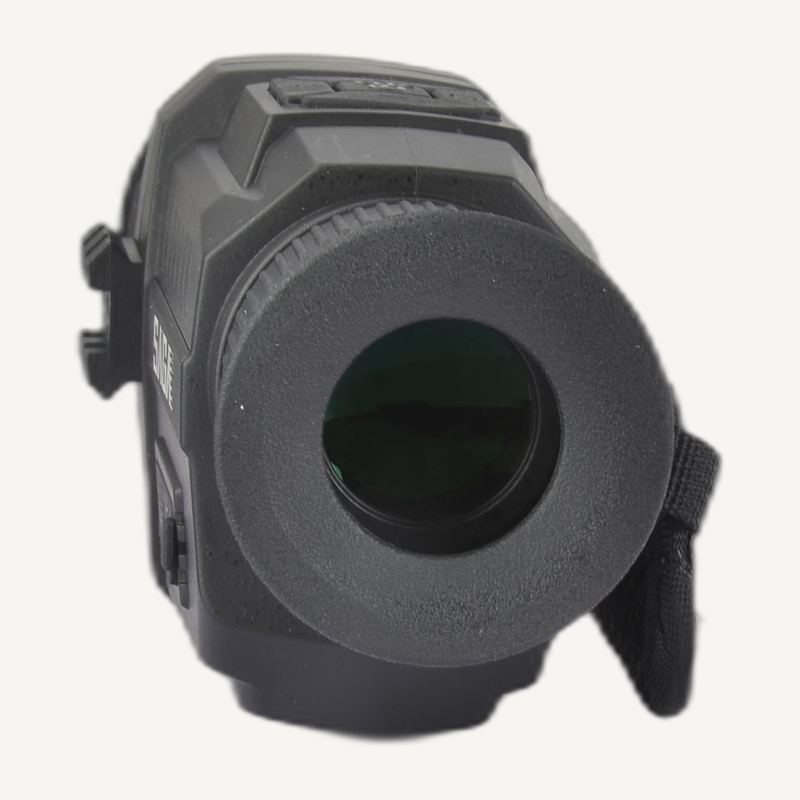

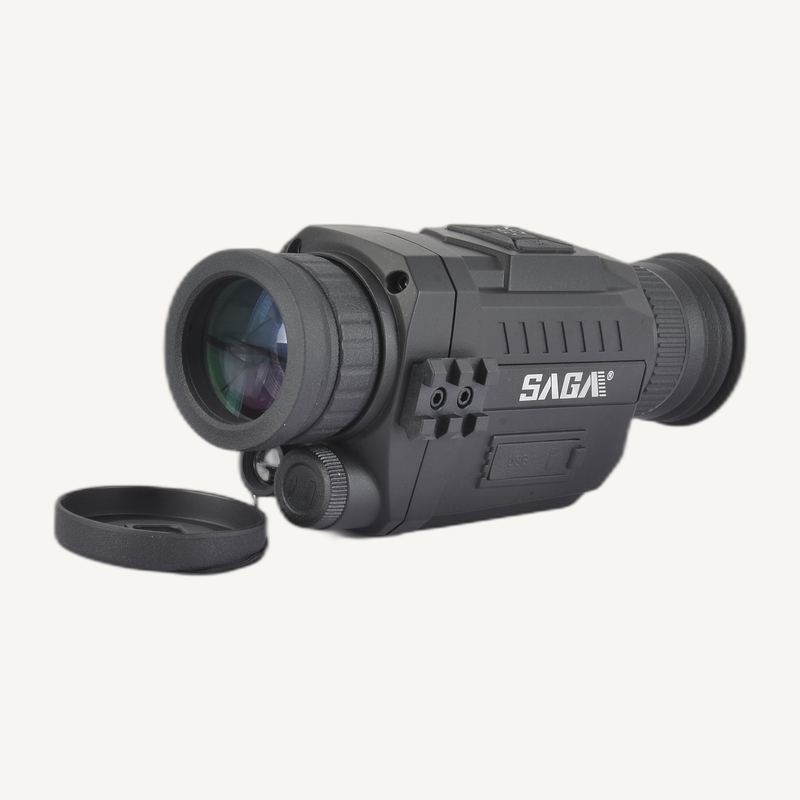

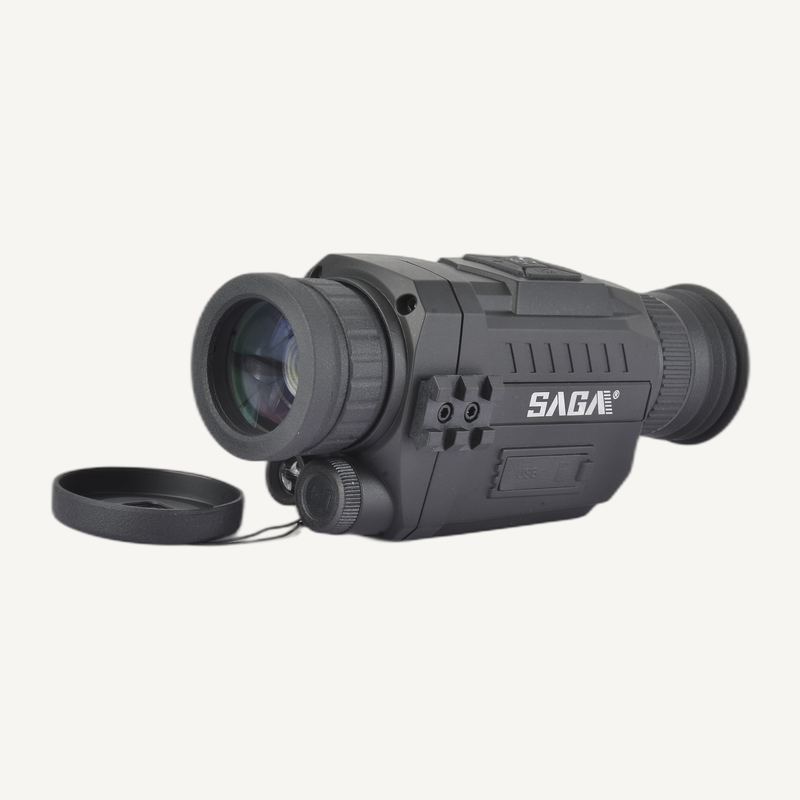

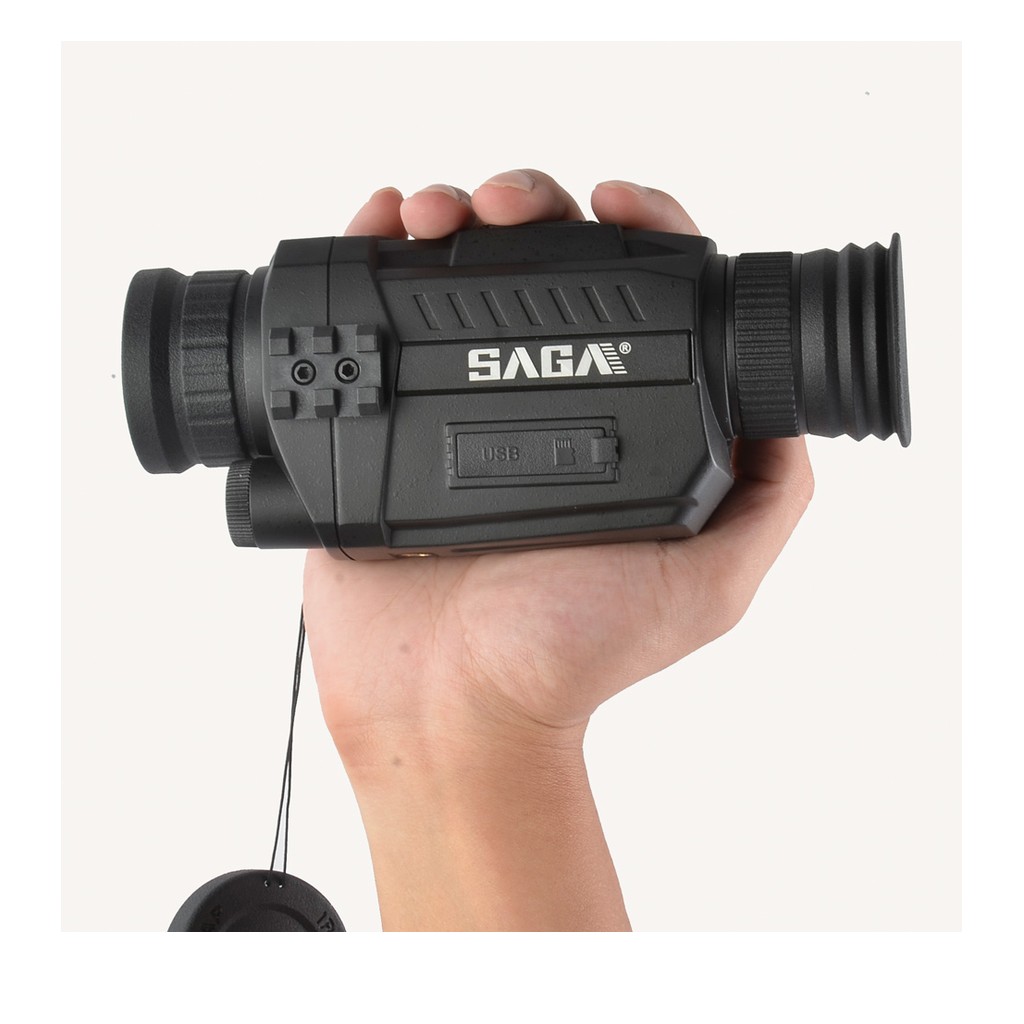

SAGA Night Vision 5X35

Key Specs

Model NV535
Magnification 5x (optical)
Digital Zoom 1-8x (up to approx. 40x combined)
Objective Aperture 35mm
Inquire Now Download Manual
SPECIFICATIONS

SAGA Night Vision 5X35 Full Specifications

Model NV535
Magnification 5x (optical)
Digital Zoom 1-8x (up to approx. 40x combined)
Objective Aperture 35mm
Eyepiece Aperture 24mm large eyepiece
Coating SMC ultra-broadband coating
Image Sensor 5th-gen starlight-level low-light 1/3" sensor
IR Enhancement 1-9 step adjustable IR assist light
Total Darkness Observation Range Approx. 200m (human-sized target)
Daytime Observation Range Waterfowl 100m / human 400m / buildings 2km
Display Screen Built-in display
Photo & Video Function Photo / video / audio recording, exportable to PC
Storage 8GB memory card included, USB cable for export
PC Camera Supported (connect to PC for monitoring)
Phone Connection Dedicated phone clip fits most phones
Power Supply Mode USB socket / power bank direct charge, no need to remove battery
Battery 3.7V 16340 rechargeable Li-ion battery
Battery Life 6-8 hours (approx. 4 hours with IR on)
Included Accessories Anti-shake wrist strap / 8GB card / lens cap
Net Weight Approx. 300g
Application Night outdoor observation, hunting, field monitoring, security
PRODUCT OVERVIEW

SAGA Night Vision 5X35 Product Overview

The SAGA 5X35 digital night vision monocular offers 5x optical magnification with 1-8x digital zoom (up to 40x combined) and a 35mm objective with SMC wide-band coating for sharp, saturated images. Its 5th-generation starlight-level low-light 1/3-inch sensor enhances images and reduces noise, while the 9-level adjustable infrared illuminator - invisible to the naked eye - reveals human-sized targets up to about 200m in total darkness. The built-in screen supports photo, video and audio recording with an included 8G memory card; files transfer to a computer via USB, and the unit doubles as a PC webcam for monitoring. With the optional phone adapter it works with most smartphones for livestreaming. A 24mm large eyepiece with soft eye cup ensures comfortable viewing, and at only ~300g with an included anti-shake wrist strap it is easy to hold steady. The rechargeable 16340 lithium battery charges via USB and lasts 6-8 hours (about 4 hours with IR on). Ideal for night outdoor activities, hunting observation, wildlife monitoring and home security.

  • 5x optical magnification + 1-8x electronic zoom, combined maximum magnification up to 40x
  • 35 mm objective, SMC ultra-broadband coating, full color rendition
  • 5th-gen starlight-grade 1/3" sensor, image enhancement & noise reduction, brighter in low-light
  • 1–9 levels IR enhancement adjustable, invisible IR for covert observation
  • Ideal total-dark reference: ~200 m to identify human targets, day and night dual-use
  • Built-in screen, photo / video / audio; 8 GB memory card included, USB file export to PC
  • Connects to PC as webcam; with dedicated phone clip for live streaming
  • 24 mm large eyepiece + skin-friendly eye-cup; net weight ~300 g, anti-shake wrist strap included
  • 16340 Li-ion battery, USB direct charge; runtime 6–8 h, ~4 h with IR on
WHY THIS ONE

SAGA Night Vision 5X35 Product Features

5x optical magnification + 1-8x electronic zoom

combined maximum magnification up to 40x

35 mm objective

SMC ultra-broadband coating, full color rendition

5th-gen starlight-grade 1/3" sensor

image enhancement & noise reduction, brighter in low-light

1–9 levels IR enhancement adjustable

invisible IR for covert observation

Ideal total-dark reference

~200 m to identify human targets, day and night dual-use

Built-in screen

photo / video / audio; 8 GB memory card included, USB file export to PC

Connects to PC as webcam; with dedicated phone clip for live streaming

24 mm large eyepiece + skin-friendly eye-cup; net weight ~300 g

anti-shake wrist strap included

16340 Li-ion battery

USB direct charge; runtime 6–8 h, ~4 h with IR on

IN THE BOX

SAGA Night Vision 5X35 Package Contents

NV535 Digital Night Vision UnitStabilizing Wrist Strap8GB Memory Card16340 Rechargeable Li-ion BatteryUSB Charging CableLens CapInstruction ManualColor Box Packaging
FAQ

Frequently Asked Questions

What are the key specifications?

Model: NV535; Magnification: 5x (optical); Digital Zoom: 1-8x (up to approx. 40x combined); Objective Aperture: 35mm; Eyepiece Aperture: 24mm large eyepiece; Coating: SMC ultra-broadband coating. Full parameters are listed in the specification table above.

What is included in the box?

Standard package: NV535 Digital Night Vision Unit, Stabilizing Wrist Strap, 8GB Memory Card, 16340 Rechargeable Li-ion Battery, USB Charging Cable, Lens Cap, Instruction Manual, Color Box Packaging.

What are the main features?

5x optical magnification + 1-8x electronic zoom, combined maximum magnification up to 40x; 35 mm objective, SMC ultra-broadband coating, full color rendition; 5th-gen starlight-grade 1/3" sensor, image enhancement & noise reduction, brighter in low-light.

MORE CHOICES

You May Also Like

BUYING GUIDE

What to Consider When Choosing Night Vision

Imaging Principle

Digital night vision uses a highly light-sensitive CMOS sensor, suited to observing animals, night fishing and similar uses. Choose by budget and purpose.

Magnification

Too much power darkens the image at night. 4x-8x is the common handheld range, balancing field of view and brightness.

Observation Range

Effective range depends on ambient light. Choose a model with IR illumination so you can see clearly in complete darkness.

IR Wavelength

850nm IR is brighter and reaches further but may show a faint red glow; 940nm is fully covert and does not disturb animals. Choose by use.

Protection Rating

Outdoor night use inevitably meets moisture. A model with some splash resistance gives peace of mind (IPX4).

Screen & Recording

A larger screen is more comfortable to view. Models with photo/video capture and WiFi transfer let you share what you record any time.

Learn more about optics Go to Optics Insights →
COMPARE

Compare Products

Current Product
SAGA Night Vision 5X35
SAGA Night Vision 5X35
  • ModelNV535
  • Magnification5x (optical)
  • Digital Zoom1-8x (up to approx. 40x combined)
  • Objective Aperture35mm
