SAGA Mini Digital Night Vision P4-0118
Companion Software
Key Specs
Product Videos
SAGA Mini Digital Night Vision P4-0118 Full Specifications
| Model | P4-0118 |
|---|---|
| Magnification | 5x |
| Objective Aperture | Φ18mm |
| Field of View | 16.5° (220m/1000m) |
| Eyepiece Adjustment Range | ±5 diopter |
| Low-Light Observation Range | 2m~∞ |
| Total Darkness Observation Range | Approx. 100m |
| IR Illuminator | 1W IR LED, adjustable focus |
| Imaging Mode | Color by day (IR mask on) / B&W at night (mask off) |
| Working Voltage | 3.7V DC |
| Battery | 14500 3.7V 750mAh Li-ion (AA-size, replaceable) |
| Power Supply Mode | Li-ion battery / power bank / DC — three power options |
| Charging Power Supply | 5.0V / 1000mA adapter |
| Storage | TF card, 8GB included |
| Video Output | AV video output, connect to external TV |
| Data Interface | USB port, export photos/videos to PC |
| Mounting Interface | Tripod base + Picatinny rail mount |
| Dimensions | 102×76×49mm |
| Net Weight | 170g |
| Application | Night animal viewing, camping, security (ponds/warehouses/orchards), scientific observation |
SAGA Mini Digital Night Vision P4-0118 Product Overview

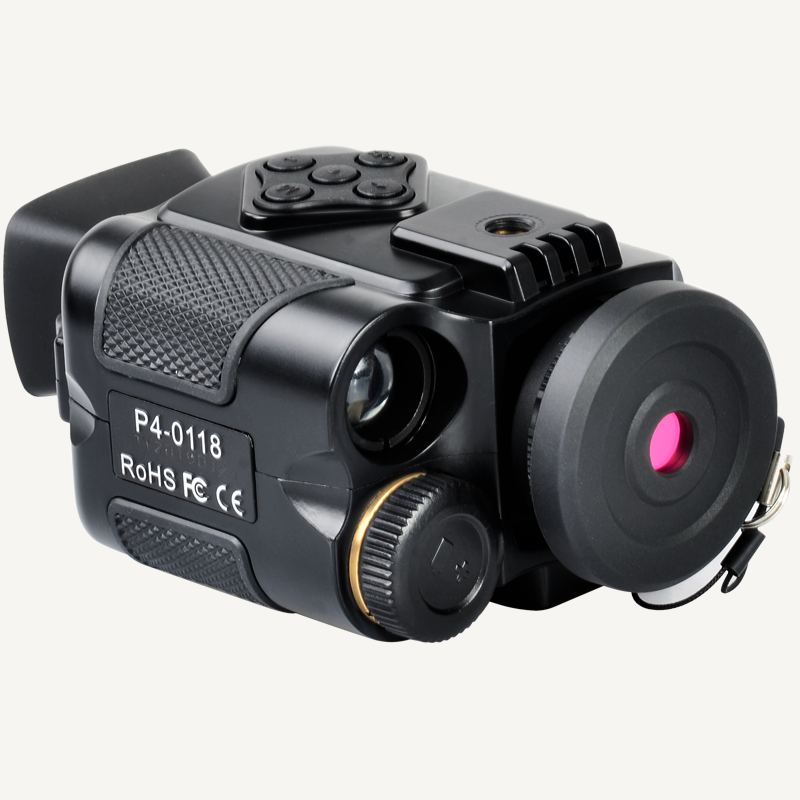

The SAGA P4-0118 mini digital night vision monocular weighs only 170g and measures 102x76x49mm - a genuinely pocketable night vision device. It offers 5x magnification with an 18mm objective lens and a wide 16.5-degree field of view (220m/1000m), observing from 2m to infinity in low light and up to about 100m in total darkness via its focus-adjustable 1W infrared LED. Dual day/night use: cover the IR shield for full-color daytime viewing, remove it for black-and-white night vision. Supports photo shooting, cyclic video recording and playback with an 8GB TF card included. The AV output connects to a TV for big-screen viewing, while the USB port exports files to a computer. Three power options (replaceable AA-size rechargeable Li-ion battery / power bank / DC supply) ensure uninterrupted use. A tripod socket and Picatinny rail interface allow fixed-mount recording - ideal for wildlife watching, camping, property surveillance and scientific observation.

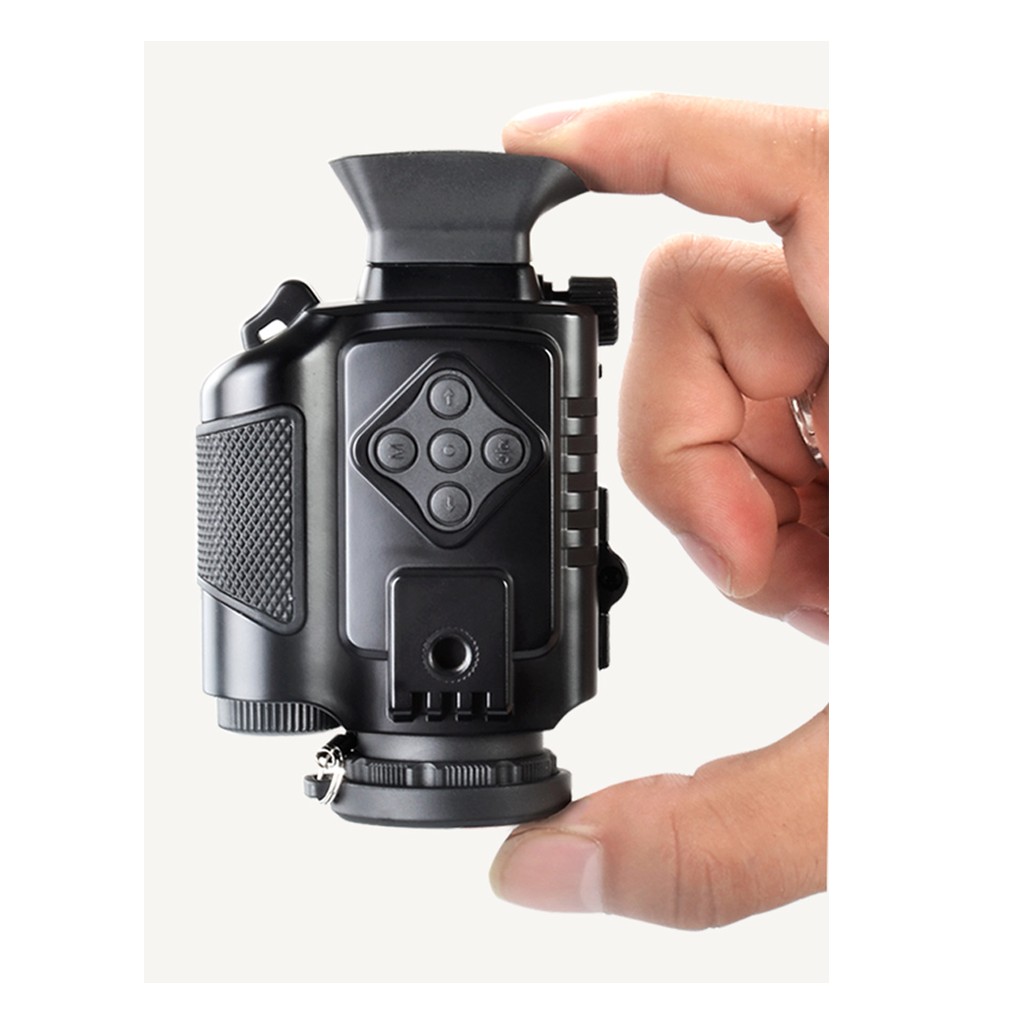

- Pocket-sized body: only 170 g, 102×76×49 mm, single-hand hold, with lanyard for carry
- 5x magnification + Φ18 mm objective, 16.5° large field (220 m at 1000 m), low-light 2 m to infinity
- 1 W IR LED focus adjustable; ideal total-dark reference night vision ~100 m
- Day & night dual use: with IR shade on for day color imaging; remove at night for B&W night vision
- Photo / loop recording / playback; standard 8 GB TF card, USB direct PC file export
- AV video output, external TV for large-screen display
- Three power modes: replaceable AA rechargeable Li-ion / power bank / DC supply
- Tripod base + Picatinny rail interface, external mount for long-duration recording
SAGA Mini Digital Night Vision P4-0118 Product Features
Pocket-sized body
only 170 g, 102×76×49 mm, single-hand hold, with lanyard for carry
5x magnification + Φ18 mm objective
16.5° large field (220 m at 1000 m), low-light 2 m to infinity
1 W IR LED focus adjustable; ideal total-dark reference night vision ~100 m
Day & night dual use
with IR shade on for day color imaging; remove at night for B&W night vision
Photo / loop recording / playback; standard 8 GB TF card
USB direct PC file export
AV video output
external TV for large-screen display
Three power modes
replaceable AA rechargeable Li-ion / power bank / DC supply
Tripod base + Picatinny rail interface
external mount for long-duration recording
SAGA Mini Digital Night Vision P4-0118 Package Contents
Frequently Asked Questions
What are the key specifications?
Model: P4-0118; Magnification: 5x; Objective Aperture: Φ18mm; Field of View: 16.5° (220m/1000m); Eyepiece Adjustment Range: ±5 diopter; Low-Light Observation Range: 2m~∞. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Mini Digital Night Vision Unit, Shockproof Nylon Soft Case, Accessory Bag, Power Adapter, Lanyard, User Manual (EN/CN), AV Video Cable, USB Cable.
What are the main features?
Pocket-sized body: only 170 g, 102×76×49 mm, single-hand hold, with lanyard for carry; 5x magnification + Φ18 mm objective, 16.5° large field (220 m at 1000 m), low-light 2 m to infinity; 1 W IR LED focus adjustable; ideal total-dark reference night vision ~100 m.
