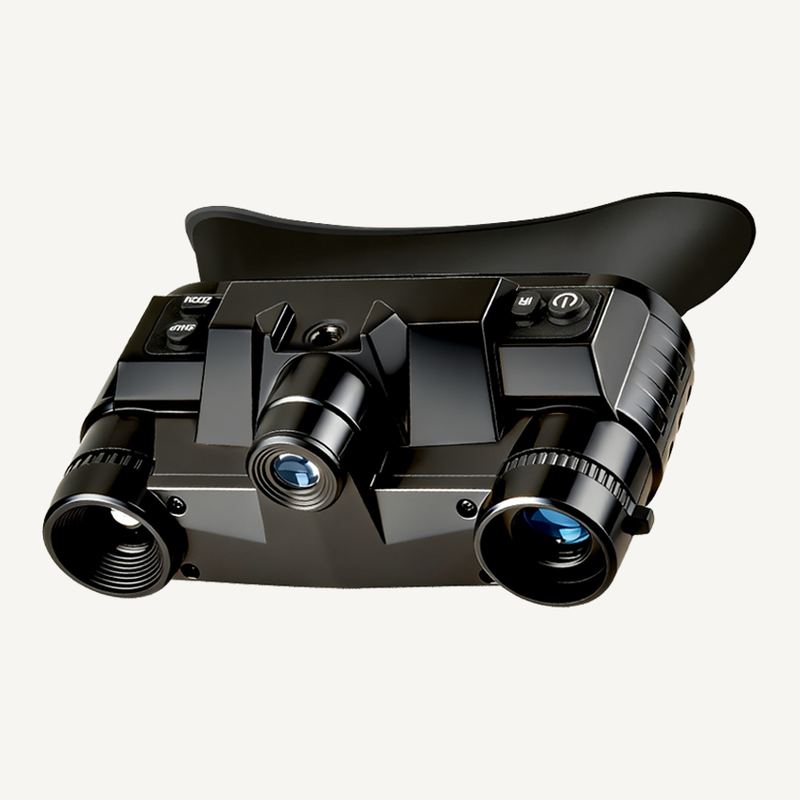

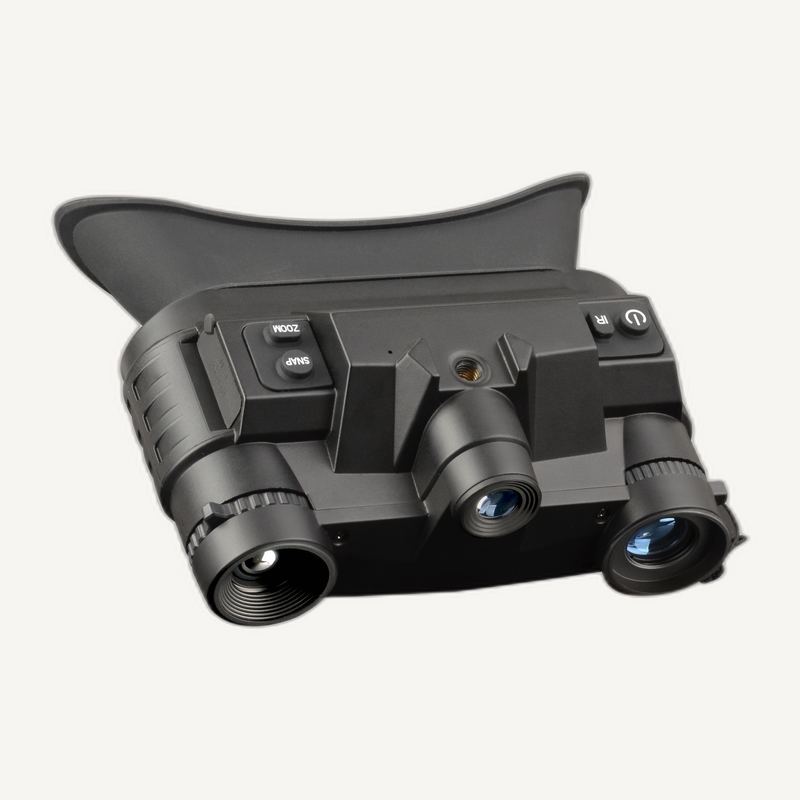

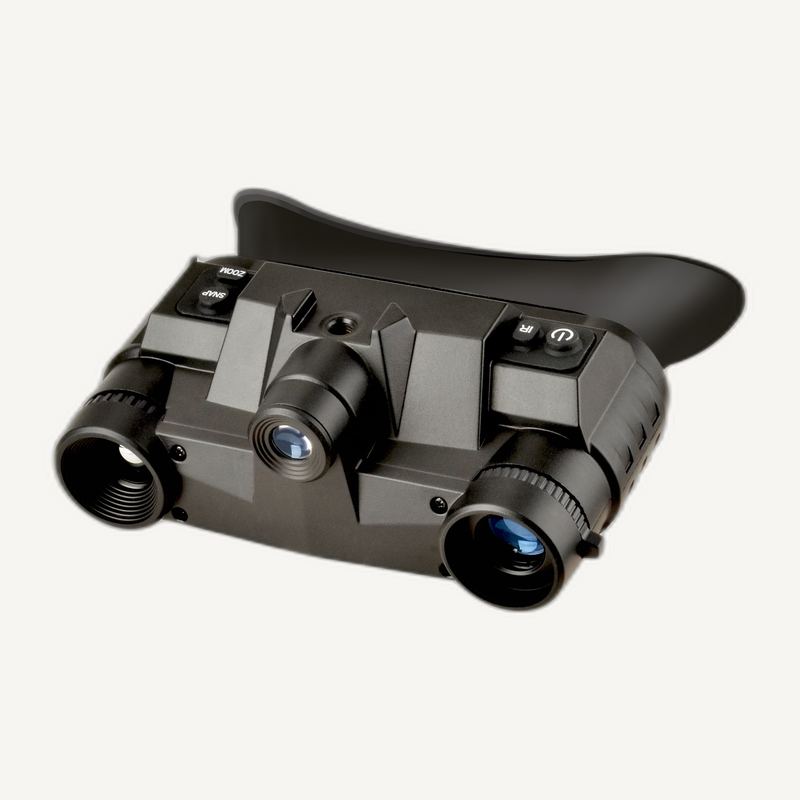

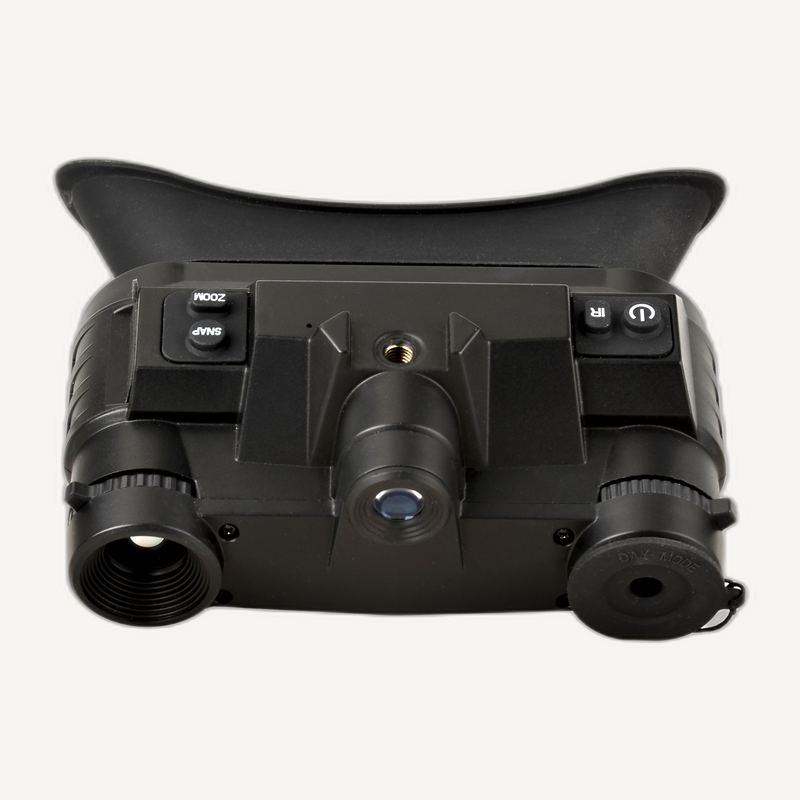

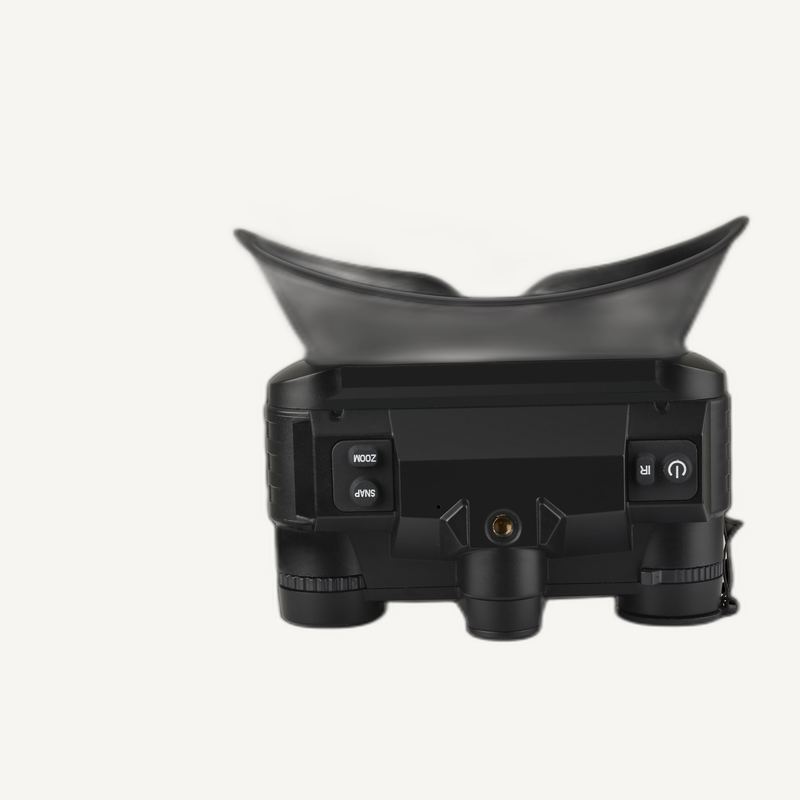

SAGA Night Vision & Thermal Imaging Binocular
Companion Software
Key Specs
Product Videos
SAGA Night Vision & Thermal Imaging Binocular Full Specifications
| Model | Head-mounted binocular thermal night vision |
|---|---|
| Functions | IR night vision + thermal imaging, two-in-one |
| Magnification | 1x optical (suitable for walking with head mount) |
| Digital Magnification | 3.5x |
| Objective Aperture | Φ15mm |
| Eye Relief | 40mm |
| Field of View | 22° (FOV approx. 328m/1000m) |
| Low-Light Observation Range | 1m~∞ |
| Total Darkness Observation Range | 300m (IR night vision) |
| Night Vision Sensor | 1/2.8" 2MP CMOS (1920×1080), IR-enhanced |
| Night Vision Video Resolution | 1856×848 |
| Night Vision Display Mode | 4 palettes: full-color / B&W / night green / red |
| Thermal Imaging Resolution | 640×480 |
| Thermal Palette | 4 palettes: B&W / red-yellow / blue-green / white-black |
| Display Screen | 536×240 OLED HD wide screen, dual/split/full-screen switchable |
| IR Illuminator | 3W 940nm IR LED, ultra-low red glow, 5-step (external power) / 3-step (battery) |
| Power Supply Mode | 18650 Li-ion / Type-C direct / 5V/2A DC |
| Battery Life | Approx. 6 hours (sustained use with IR on) |
| Wearing Style | Three carry modes: helmet mount / head strap / handheld |
| Remote Control | Wireless remote support (IR / capture / zoom / mode switch) |
| Storage | TF card, 32GB included; night vision & thermal saved in separate folders |
| Data Interface | USB Type-C (charge + data), connect to PC as monitor |
| Dimensions | 160×80×56mm |
| Net Weight | 375g (incl. battery) |
| Application | Exploration, hunting, night fishing, security, fire rescue (smoke penetration / search), industrial inspection |
SAGA Night Vision & Thermal Imaging Binocular Product Overview
The SAGA Night Vision & Thermal Imaging Binocular combines a professional digital night vision device and a high-resolution thermal imager in one head-mounted binocular. The night vision channel amplifies ambient light or IR illumination to reveal details up to 300m in total darkness, while the 640x480 thermal sensor detects body heat without any light - seeing through darkness, brush and fog. 1x optical magnification with a wide 22-degree field of view (~328m/1000m) suits head-mounted walking, plus 3.5x digital zoom. 8 viewing modes: 4 night-vision palettes (color/B&W/green/red) and 4 thermal palettes (white-hot/red-hot/ironbow/arctic). The 536x240 OLED widescreen shows both channels side by side by default; long-press R to switch NV or thermal full screen. The 3W 940nm IR illuminator is nearly invisible beyond 5m. Both channels record simultaneously into separate folders on the included 32GB TF card. USB Type-C charges the device, connects to a computer as a monitor, and a wireless remote is included. Runs about 6 hours on an 18650 battery even with IR on. Weighing only 375g with battery (160x80x56mm), it mounts on tactical helmets, an elastic head strap, or works hand-held - ideal for search & rescue, hunting, security, firefighting and industrial inspection.
- All-in-one: professional night vision + HD thermal imaging; night vision reveals dark details, thermal identifies heat sources; dual-screen simultaneous display
- Night vision ideal total-dark reference 300 m, restores object detail; thermal 640×480, light-independent, suits low-light, vegetation, foggy environments for heat source identification
- 8 observation modes: night vision (full color / B&W / green / red); thermal palettes (B&W / red-yellow / blue-green / white-black)
- OLED HD wide screen with default dual-screen display; long-press R to switch night vision / thermal full-screen; ~328 m field width at 1000 m
- 3 W 940 nm IR light, weak glow, red dot hard to detect beyond 5 m, covert observation
- Night vision & thermal synchronous recording, auto-folder file save; standard 32 GB memory card, wireless remote included
- Total weight 375 g with battery, compact; ~6 h runtime with IR; Type-C direct charge, power bank and DC supply compatible
- Professional helmet / head strap / handheld three wearing modes; 1x optical large field, low burden when head-mounted
SAGA Night Vision & Thermal Imaging Binocular Product Features
All-in-one
professional night vision + HD thermal imaging; night vision reveals dark details, thermal identifies heat sources; dual-screen simultaneous display
Night vision ideal total-dark reference 300 m
restores object detail; thermal 640×480, light-independent, suits low-light, vegetation, foggy environments for heat source identification
8 observation modes
night vision (full color / B&W / green / red); thermal palettes (B&W / red-yellow / blue-green / white-black)
OLED HD wide screen with default dual-screen display; long-press R to switch night vision / thermal full-screen; ~328 m field width at 1000 m
3 W 940 nm IR light
weak glow, red dot hard to detect beyond 5 m, covert observation
Night vision & thermal synchronous recording
auto-folder file save; standard 32 GB memory card, wireless remote included
Total weight 375 g with battery
compact; ~6 h runtime with IR; Type-C direct charge, power bank and DC supply compatible

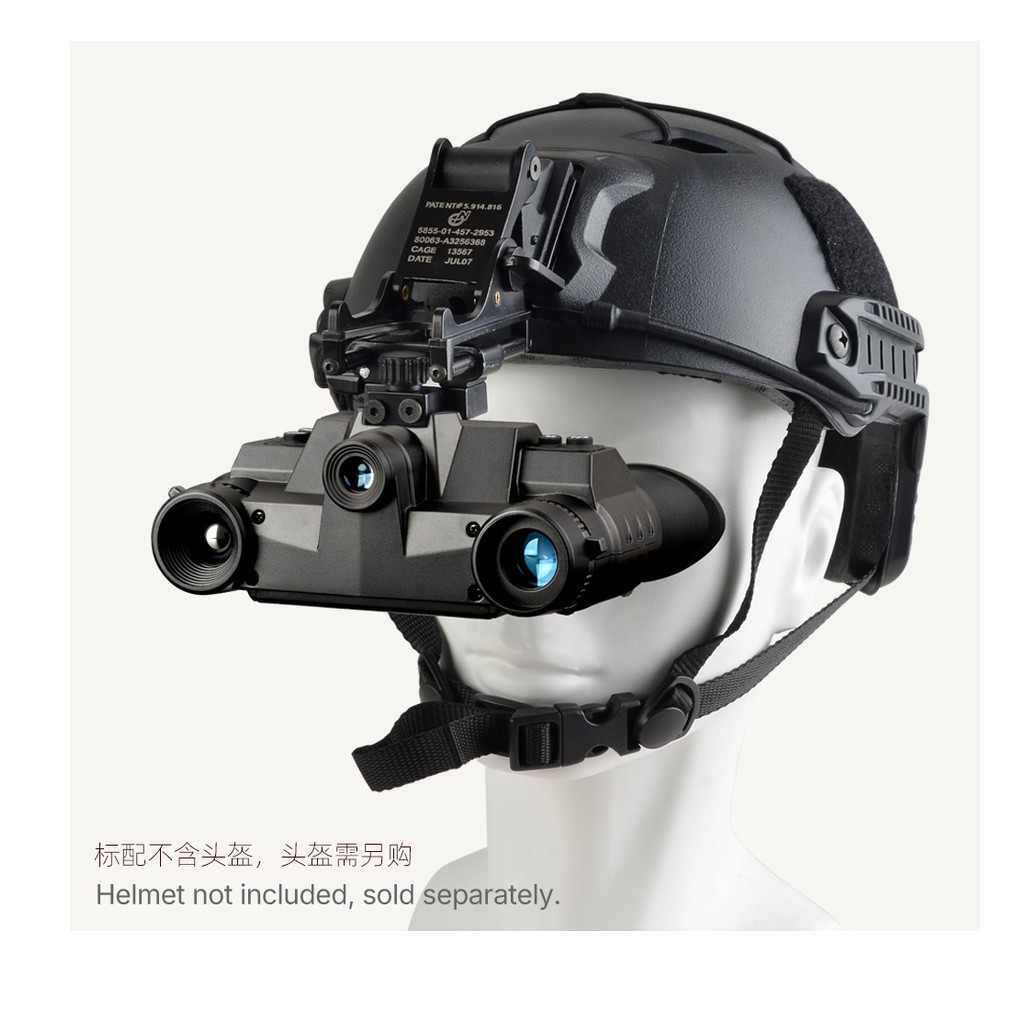

Professional helmet / head strap / handheld three wearing modes; 1x optical large field
low burden when head-mounted
SAGA Night Vision & Thermal Imaging Binocular Package Contents
Frequently Asked Questions
What are the key specifications?
Model: Head-mounted binocular thermal night vision; Functions: IR night vision + thermal imaging, two-in-one; Magnification: 1x optical (suitable for walking with head mount); Digital Magnification: 3.5x; Objective Aperture: Φ15mm; Eye Relief: 40mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Thermal Imaging All-in-one Unit, Hard-shell Shockproof Carry Case, Head Strap, 32GB Memory Card, Mounting Screws, USB Cable, 18650 Rechargeable Li-ion Battery, Charger.
What are the main features?
All-in-one: professional night vision + HD thermal imaging; night vision reveals dark details, thermal identifies heat sources; dual-screen simultaneous display; Night vision ideal total-dark reference 300 m, restores object detail; thermal 640×480, light-independent, suits low-light, vegetation, foggy environments for heat source identification; 8 observation modes: night vision (full color / B&W / green / red); thermal palettes (B&W / red-yellow / blue-green / white-black).
