SAGA Head-Mounted Night Vision Binocular NVG-G1

Key Specs

Magnification 1x optical (suitable for walking with head mount)
Low-Light Observation Range 1m~∞
Total Darkness Observation Range 300m
Battery Life Approx. 6 hours (IR on)
Inquire Now Download Manual
SPECIFICATIONS

SAGA Head-Mounted Night Vision Binocular NVG-G1 Full Specifications

Model NVG-G1
Magnification 1x optical (suitable for walking with head mount)
Digital Magnification 3.5x
Objective Aperture Φ15mm
Eye Relief 40mm
Field of View 22° (FOV approx. 328m at 1000m)
Low-Light Observation Range 1m~∞
Total Darkness Observation Range 300m
Image Sensor 1/2.8" high-sensitivity CMOS (1MP), IR-enhanced noise reduction
Image Resolution 1920×1080
Display Screen 240×536 OLED HD wide screen, comfortable binocular viewing
IR Illuminator 3W 940nm IR LED, red glow nearly invisible beyond 5m
IR Adjustment Power bank supply 5-step adjustable, Li-ion battery 3-step adjustable
Imaging Mode 4 palettes: color / B&W / green / red
Photo & Video Recording Photo, video, playback; can connect to PC as monitor
Storage TF card, 32GB included (6+ hours, 15-min auto split)
Power Supply Mode USB direct / power bank / battery dock — three charging options
External Battery 2x 16340 rechargeable Li-ion batteries (3.7V)
Charging Power Supply DC 5V/2A
Battery Life Approx. 6 hours (IR on)
Wearing Style Three carry modes: helmet mount / headband / handheld
Dimensions 140×75×58mm
Net Weight 330g (incl. battery)
Application Night search, exploration, hunting, night fishing, anti-theft, security
PRODUCT OVERVIEW

SAGA Head-Mounted Night Vision Binocular NVG-G1 Product Overview

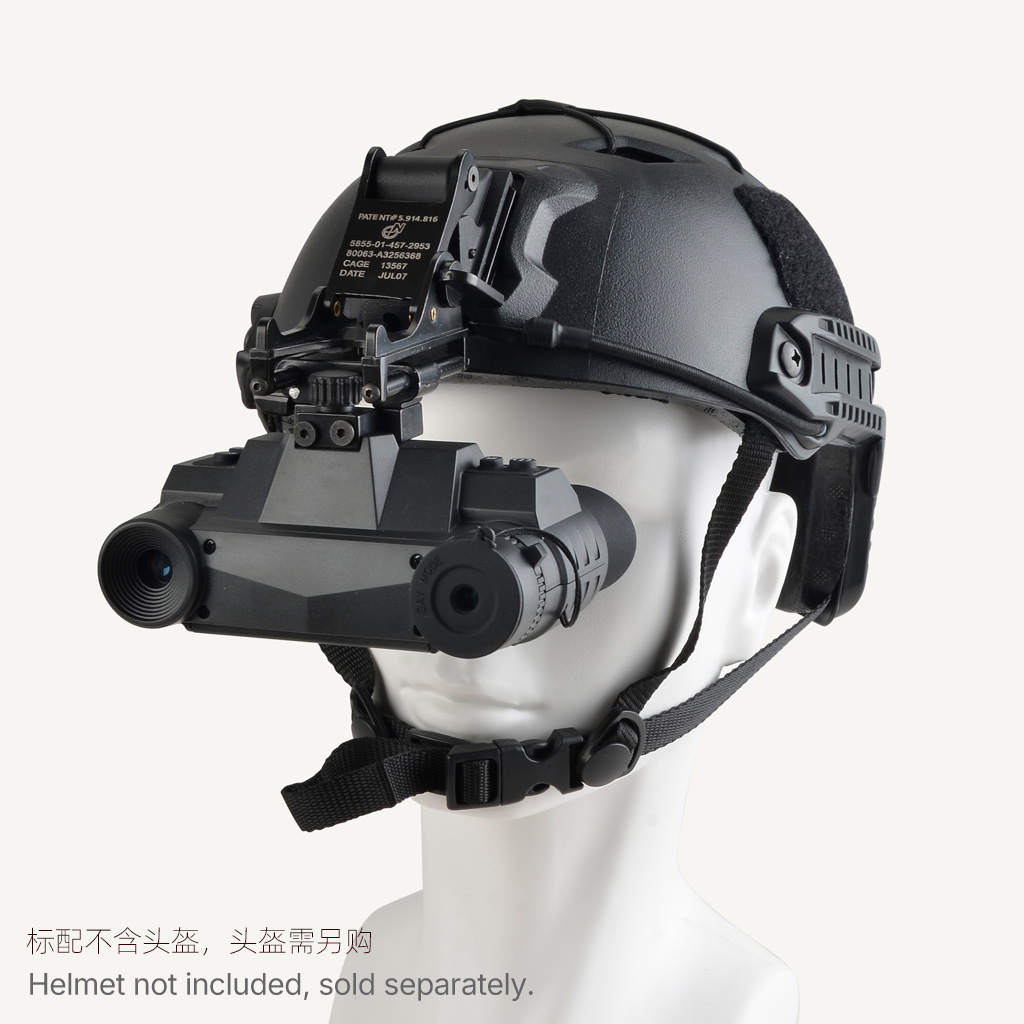

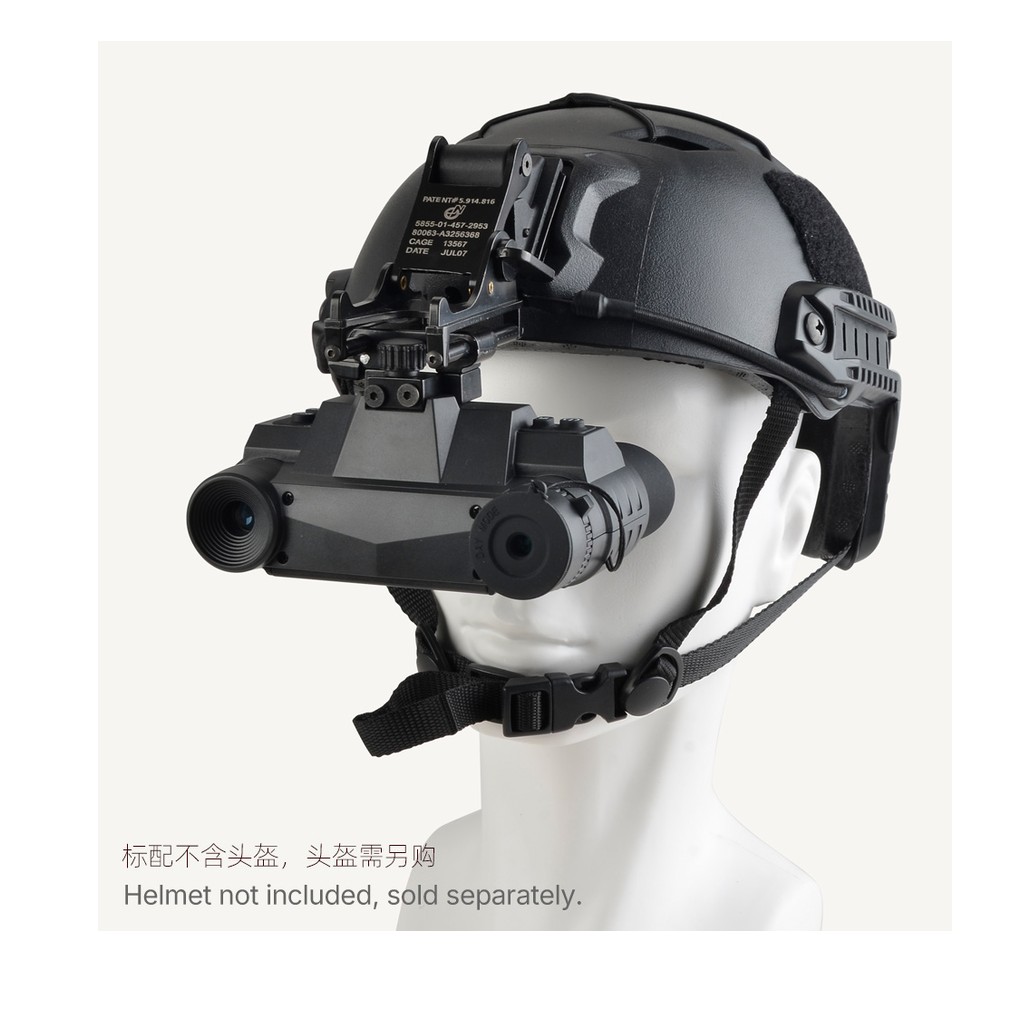

The SAGA NVG-G1 head-mounted night vision binocular works hand-held, on an elastic head strap, or mounted on a tactical helmet. The 2023 lightweight design weighs only 330g with batteries (140x75x58mm) for burden-free wearing. 1x optical magnification offers a wide, true-to-life 22-degree field of view (~328m/1000m) ideal for hands-free walking, plus 3.5x digital zoom. A 1/2.8-inch high-sensitivity CMOS sensor delivers 1920x1080 resolution on a 240x536 OLED dual-eyepiece widescreen that stays comfortable over long sessions. The 3W 940nm IR illuminator is nearly invisible beyond 5 meters, with 5 adjustable power levels on external power (3 on battery), revealing targets up to 300m in total darkness. Four viewing modes (daytime color; night B&W, green, red) support day and night use. Records photos and videos with playback, streams to a computer via USB as a monitor, and includes a 32GB TF card (6+ hours of footage, auto-split every 15 minutes). Two 16340 rechargeable batteries run about 6 hours with IR on; charge via USB, power bank, or desktop charger. A finger-controlled focus wheel, three wearing styles, and rugged build suit night searching, exploration, hunting, fishing, surveillance and security.

  • Handheld / head-mounted / helmet-mounted three modes; metal helmet flip-up storage, elastic headband included, hands-free
  • Lightweight body, 330 g with battery, 140×75×58 mm; 1x optical wide field, comfortable walking observation
  • 1/2.8" high-sensitivity CMOS + 3 W 940 nm IR; ideal total-dark reference 300 m, weak glow beyond 5 m, good covert performance
  • 1920×1080 HD resolution, 240×536 OLED binocular wide screen, comfortable near and far viewing
  • 4 imaging modes day and night: day color; night B&W / green / red optional
  • Photo / video / playback; USB PC webcam; standard 32 GB TF card, reference recording 6 h+
  • 2 × 16340 Li-ion, ~6 h with IR on; USB direct charge, power bank, dock charger three power modes
  • 3.5x digital zoom, finger-shift focus wheel, single-finger focus; ~328 m field width at 1000 m
WHY THIS ONE

SAGA Head-Mounted Night Vision Binocular NVG-G1 Product Features

Handheld / head-mounted / helmet-mounted three modes; metal helmet flip-up storage

elastic headband included, hands-free

Lightweight body

330 g with battery, 140×75×58 mm; 1x optical wide field, comfortable walking observation

1/2.8" high-sensitivity CMOS + 3 W 940 nm IR; ideal total-dark reference 300 m

weak glow beyond 5 m, good covert performance

1920×1080 HD resolution

240×536 OLED binocular wide screen, comfortable near and far viewing

4 imaging modes day and night

day color; night B&W / green / red optional

Photo / video / playback; USB PC webcam; standard 32 GB TF card

reference recording 6 h+

2 × 16340 Li-ion

~6 h with IR on; USB direct charge, power bank, dock charger three power modes

3.5x digital zoom

finger-shift focus wheel, single-finger focus; ~328 m field width at 1000 m

IN THE BOX

SAGA Head-Mounted Night Vision Binocular NVG-G1 Package Contents

Head-mounted Digital Night Vision UnitHard-shell Shockproof Carry Case32GB Memory Card (included)Head Strap (included)Mounting Screws16340 Rechargeable Li-ion Battery × 2ChargerUSB CablePremium Lens ClothInstruction ManualColor Box Packaging
FAQ

Frequently Asked Questions

What are the key specifications?

Model: NVG-G1; Magnification: 1x optical (suitable for walking with head mount); Digital Magnification: 3.5x; Objective Aperture: Φ15mm; Eye Relief: 40mm; Field of View: 22° (FOV approx. 328m at 1000m). Full parameters are listed in the specification table above.

What is included in the box?

Standard package: Head-mounted Digital Night Vision Unit, Hard-shell Shockproof Carry Case, 32GB Memory Card (included), Head Strap (included), Mounting Screws, 16340 Rechargeable Li-ion Battery × 2, Charger, USB Cable.

What are the main features?

Handheld / head-mounted / helmet-mounted three modes; metal helmet flip-up storage, elastic headband included, hands-free; Lightweight body, 330 g with battery, 140×75×58 mm; 1x optical wide field, comfortable walking observation; 1/2.8" high-sensitivity CMOS + 3 W 940 nm IR; ideal total-dark reference 300 m, weak glow beyond 5 m, good covert performance.

MORE CHOICES

You May Also Like

BUYING GUIDE

What to Consider When Choosing Night Vision

Imaging Principle

Digital night vision uses a highly light-sensitive CMOS sensor, suited to observing animals, night fishing and similar uses. Choose by budget and purpose.

Magnification

Too much power darkens the image at night. 4x-8x is the common handheld range, balancing field of view and brightness.

Observation Range

Effective range depends on ambient light. Choose a model with IR illumination so you can see clearly in complete darkness.

IR Wavelength

850nm IR is brighter and reaches further but may show a faint red glow; 940nm is fully covert and does not disturb animals. Choose by use.

Protection Rating

Outdoor night use inevitably meets moisture. A model with some splash resistance gives peace of mind (IPX4).

Screen & Recording

A larger screen is more comfortable to view. Models with photo/video capture and WiFi transfer let you share what you record any time.
