SAGA Night Vision NV800

Choose Variant

Selected:850nm

Key Specs

Magnification 7.2x
Low-Light Observation Range 1m~∞
Total Darkness Observation Range 300m
Battery Life 10h
Inquire Now Download Manual
SPECIFICATIONS

SAGA Night Vision NV800 Full Specifications

Parameter 850nm940nm
Model NV800NV800
IR WavelengthDiff 850nm940nm
Magnification 7.2x7.2x
Objective Aperture 31mm31mm
Eye Relief 30mm30mm
Field of View 7°7°
Low-Light Observation Range 1m~∞1m~∞
Total Darkness Observation Range 300m300m
Image Sensor High-sensitivity CMOS sensorHigh-sensitivity CMOS sensor
Resolution 1280×9601280×960
Display Screen 640×480 TFT display640×480 TFT display
Digital Magnification 2x2x
IR Illuminator 5W high power5W high power
Power Supply Mode USB direct charge / power bankUSB direct charge / power bank
External Battery 18650 rechargeable Li-ion battery18650 rechargeable Li-ion battery
Operating Voltage 7-8.4V7-8.4V
Battery Life 10h10h
Dimensions 193×150×64mm193×150×64mm
Net Weight 655g655g
Application Night outdoor observation, forestry & site security, field studyNight outdoor observation, forestry & site security, field study
PRODUCT OVERVIEW

SAGA Night Vision NV800 Product Overview

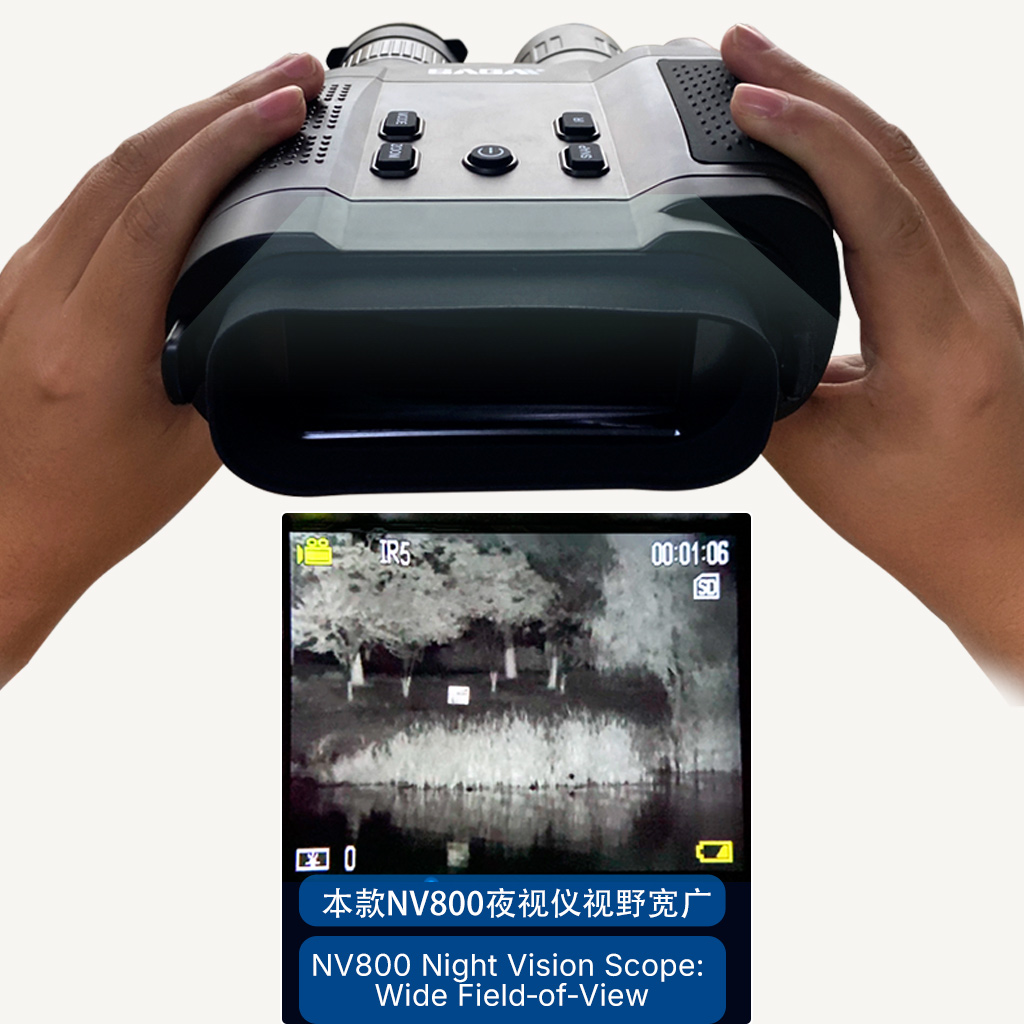

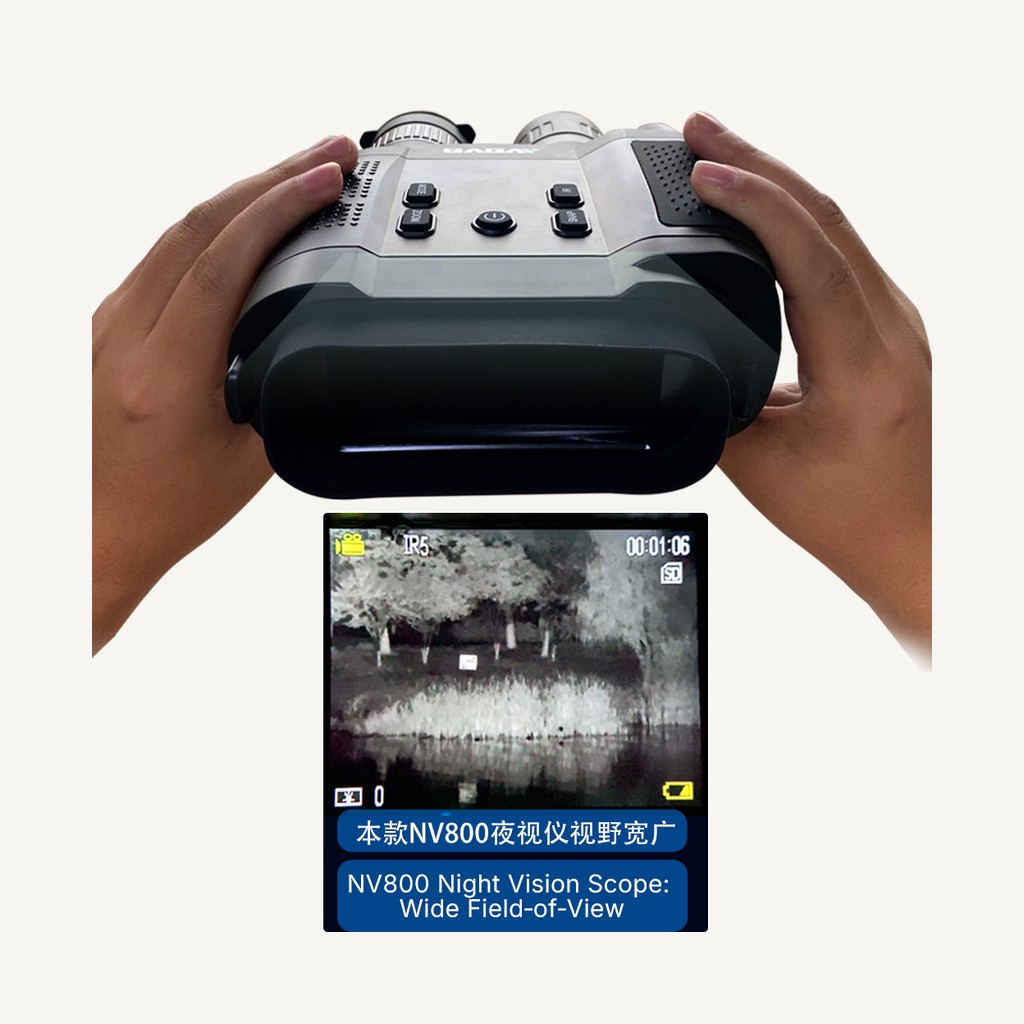

The SAGA digital night vision binocular NV800 features 7.2x optical magnification plus 2x digital zoom, a 31mm objective lens, and a 640×480 TFT display. It uses a high-sensitivity CMOS sensor with 1280×960 resolution and supports color daytime viewing plus black/white/green/amber night modes. Available in 850nm and 940nm IR versions: 850nm delivers longer IR range, while 940nm offers covert operation with no visible red glow. It supports photo, video, and audio recording, AV video output to TVs, USB direct charging or power-bank power supply, and approximately 10 hours of runtime with 18650 lithium batteries. Ideal for night observation, security patrol, and outdoor field study.

  • 7.2x optical zoom + 2x digital zoom, up to 14.4x combined magnification
  • 31 mm objective, 1 m to infinity in low-light, up to 300 m in total-dark
  • High-sensitivity CMOS image sensor, 1280×960 output resolution
  • 3.5" / 640×480 TFT HD large screen, day color / night multi-mode imaging
  • 850 nm / 940 nm dual-wavelength optional: long-range IR or no-glow covert
  • Photo / video / audio recording; AV video output to TV monitor
  • USB direct charge / power bank dual power, 18650 battery, ~10 h runtime
  • 7.2x optical + 2x digital zoom, up to 14.4x combined magnification
  • 31 mm objective, low-light observation 1 m to infinity; ideal total-dark reference 300 m
  • High-sensitivity CMOS image sensor, 1280×960 output
  • 3.5" / 640×480 TFT HD screen; day color / night multi-color mode
  • 850 nm / 940 nm dual IR wavelength optional: long-range IR / minimal-glow covert
  • Photo / video / audio recording; AV video output, external TV as monitor
  • USB direct charge / power bank dual power, 18650 Li-ion, ~10 h runtime
WHY THIS ONE

SAGA Night Vision NV800 Product Features

7.2x optical zoom + 2x digital zoom

up to 14.4x combined magnification

31 mm objective

1 m to infinity in low-light, up to 300 m in total-dark

High-sensitivity CMOS image sensor

1280×960 output resolution

3.5" / 640×480 TFT HD large screen

day color / night multi-mode imaging

850 nm / 940 nm dual-wavelength optional

long-range IR or no-glow covert

Photo / video / audio recording; AV video output to TV monitor

USB direct charge / power bank dual power

18650 battery, ~10 h runtime

7.2x optical + 2x digital zoom

up to 14.4x combined magnification

31 mm objective

low-light observation 1 m to infinity; ideal total-dark reference 300 m

High-sensitivity CMOS image sensor

1280×960 output

3.5" / 640×480 TFT HD screen; day color / night multi-color mode

850 nm / 940 nm dual IR wavelength optional

long-range IR / minimal-glow covert

Photo / video / audio recording; AV video output

external TV as monitor

USB direct charge / power bank dual power

18650 Li-ion, ~10 h runtime

IN THE BOX

SAGA Night Vision NV800 Package Contents

NV800 Digital Night Vision UnitHard-shell Shockproof Carry CaseNight Vision Strap32GB Memory CardColor Box PackagingAV Video CableUSB CableInstruction ManualPremium Lens Cloth
FAQ

Frequently Asked Questions

How many versions are available for this product?

2 versions: 850nm, 940nm. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.

What are the key specifications?

Model: NV800; IR Wavelength: 850nm / 940nm; Magnification: 7.2x; Objective Aperture: 31mm; Eye Relief: 30mm; Field of View: 7°. Full parameters are listed in the specification table above.

What is included in the box?

Standard package: NV800 Digital Night Vision Unit, Hard-shell Shockproof Carry Case, Night Vision Strap, 32GB Memory Card, Color Box Packaging, AV Video Cable, USB Cable, Instruction Manual.

What are the main features?

7.2x optical zoom + 2x digital zoom, up to 14.4x combined magnification; 31 mm objective, 1 m to infinity in low-light, up to 300 m in total-dark; High-sensitivity CMOS image sensor, 1280×960 output resolution.

MORE CHOICES

You May Also Like

BUYING GUIDE

What to Consider When Choosing Night Vision

Imaging Principle

Digital night vision uses a highly light-sensitive CMOS sensor, suited to observing animals, night fishing and similar uses. Choose by budget and purpose.

Magnification

Too much power darkens the image at night. 4x-8x is the common handheld range, balancing field of view and brightness.

Observation Range

Effective range depends on ambient light. Choose a model with IR illumination so you can see clearly in complete darkness.

IR Wavelength

850nm IR is brighter and reaches further but may show a faint red glow; 940nm is fully covert and does not disturb animals. Choose by use.

Protection Rating

Outdoor night use inevitably meets moisture. A model with some splash resistance gives peace of mind (IPX4).

Screen & Recording

A larger screen is more comfortable to view. Models with photo/video capture and WiFi transfer let you share what you record any time.
