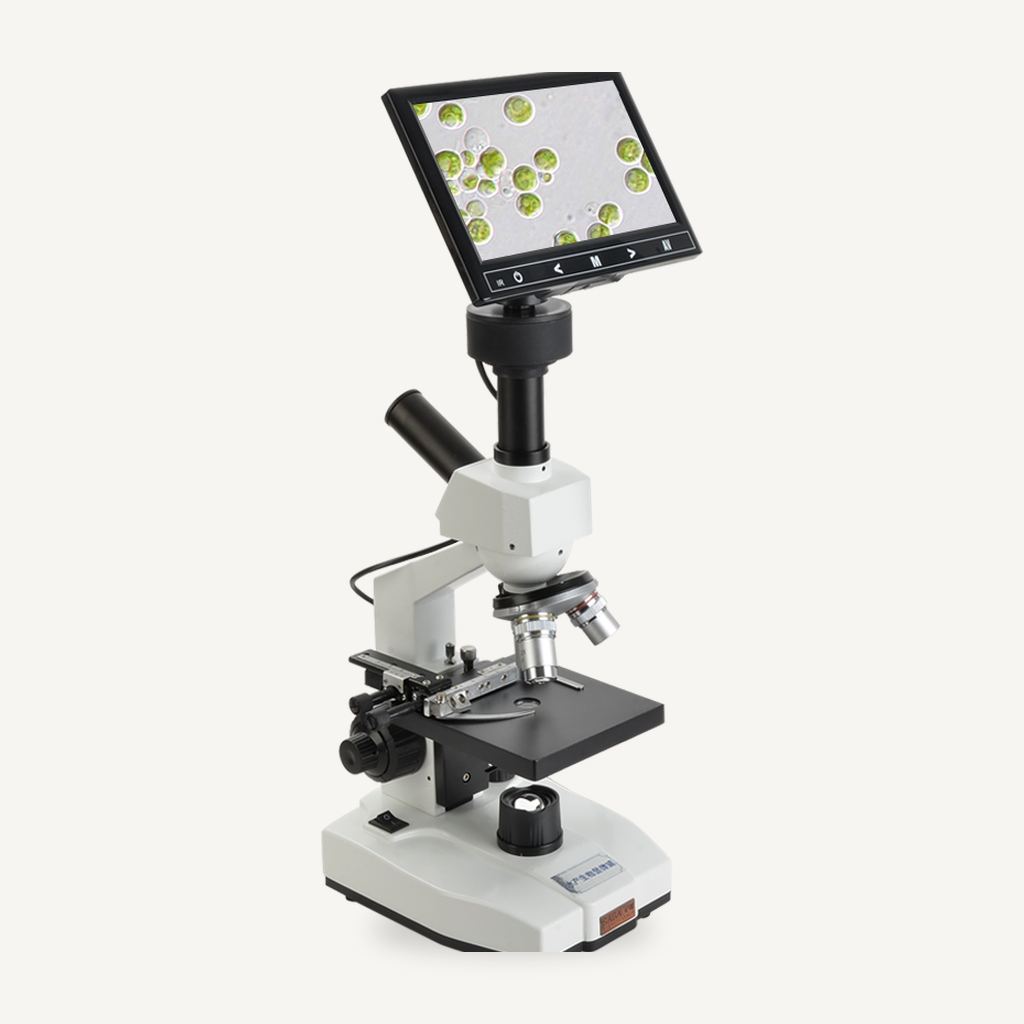

SAGA All-in-One Screen Microscope for Aquaculture
Companion Software
Key Specs
Product Videos
SAGA All-in-One Screen Microscope for Aquaculture Full Specifications
| Magnification | 40x-400x |
|---|---|
| Eyepiece | WF10x wide-field eyepiece / 5MP digital eyepiece |
| Objective | 185 achromatic 4x/ 10x/ 40x |
| Bottom LED Light | LED bottom illumination |
| Focus System | Coaxial dual-speed coarse/fine focus |
| Condenser | Abbe condenser (adjustable iris) |
| Viewing Head | Single-side 30° incline / HD camera + 7" LCD |
| Caliper Travel | Longitudinal 30mm, lateral 50mm |
| Nosepiece | Triple nosepiece |
| Stage | Stage 109×119mm |
| Power | AC100V-240V 50/60Hz |
| Dimensions | 175X130X503mm |
| Net Weight | Approx. 2.6kg |
| Gross Weight | Approx. 5.8kg |
| Application | Plankton, algae, fish & shrimp parasites, gill/body-surface, water quality testing |
SAGA All-in-One Screen Microscope for Aquaculture Product Overview
The SAGA all-in-one screen microscope for aquaculture is designed for fish and shrimp disease testing. It features a built-in HD display for real-time observation without an external computer. Quickly inspect plankton, algae, parasites (ciliates, Trichodina, Zoothamnium, Dactylogyrus) and gill, body-surface and water samples. 40x-1600x optical magnification, 185 achromatic objectives, adjustable LED illumination and coaxial coarse/fine focusing make it ideal for daily on-site inspection at fish ponds, shrimp farms, hatcheries and aquaculture stations.
- Built-in HD display, ready for observation on power-on, no external computer / phone needed
- Designed for aquaculture testing: plankton, algae, fish & shrimp parasites and water samples
- 40x–1600x optical magnification, equipped with 185 achromatic objectives
- LED adjustable illumination, coaxial coarse & fine focus structure
- Aluminum carrying case for easy on-site inspection at ponds and farms
SAGA All-in-One Screen Microscope for Aquaculture Product Features
Built-in HD display
ready for observation on power-on, no external computer / phone needed
Designed for aquaculture testing
plankton, algae, fish & shrimp parasites and water samples
40x–1600x optical magnification
equipped with 185 achromatic objectives
LED adjustable illumination
coaxial coarse & fine focus structure
Aluminum carrying case for easy on-site inspection at ponds and farms
SAGA All-in-One Screen Microscope for Aquaculture Package Contents
Frequently Asked Questions
What are the key specifications?
Magnification: 40x-400x; Eyepiece: WF10x wide-field eyepiece / 5MP digital eyepiece; Objective: 185 achromatic 4x/ 10x/ 40x; Bottom LED Light: LED bottom illumination; Focus System: Coaxial dual-speed coarse/fine focus; Condenser: Abbe condenser (adjustable iris). Full parameters are listed in the specification table above.
What is included in the box?
Standard package: All-in-one Microscope Unit with Screen, WF10x Eyepiece, 3 objective lenses: 4x/10x/40x (mounted on the unit), 7-inch LCD screen, Aluminum carrying case, Aluminum case key, Power cord, LCD screen connector.
What are the main features?
Built-in HD display, ready for observation on power-on, no external computer / phone needed; Designed for aquaculture testing: plankton, algae, fish & shrimp parasites and water samples; 40x–1600x optical magnification, equipped with 185 achromatic objectives.
