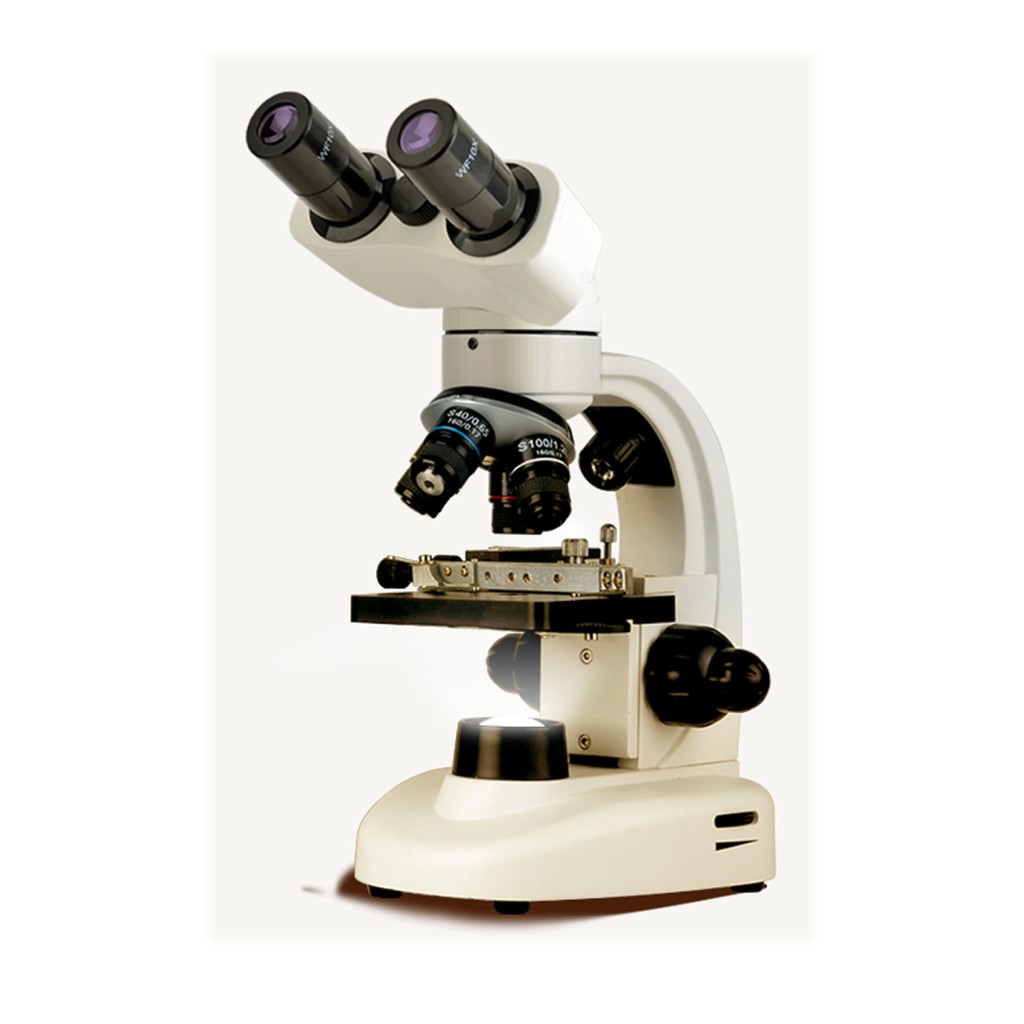

SAGA XSP-003 Binocular Biological Microscope
Companion Software
Choose Variant
Selected:Slide-clip Ver.
Key Specs
Product Videos
SAGA XSP-003 Binocular Biological Microscope Full Specifications
| Parameter | Slide-clip Ver. | Mechanical Stage Ver. |
|---|---|---|
| Magnification | 40x-1600x | 40x-1600x |
| Eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece |
| Objective | Achromatic 4x/ 10x/ 40x/ 100x oil | Achromatic 4x/ 10x/ 40x/ 100x oil |
| Nosepiece | Brass quadruple nosepiece | Brass quadruple nosepiece |
| StageDiff | Slide clips | 9×9cm metal mechanical stage |
| Light Source | LED top & bottom illumination | LED top & bottom illumination |
| Focus System | Coaxial coarse/fine focus | Coaxial coarse/fine focus |
| Power | AA battery + USB dual power (5V safe voltage) | AA battery + USB dual power (5V safe voltage) |
| Material | Metal + ABS + optical glass | Metal + ABS + optical glass |
| Dimensions | 300X170X135mm | 300X170X135mm |
| Net Weight | 1600g | 1600g |
| Interpupillary Distance | 54-75mm | 54-75mm |
SAGA XSP-003 Binocular Biological Microscope Product Overview
The SAGA XSP-003 binocular biological microscope features a four-position nosepiece with 4x/10x/40x/100x achromatic objectives for a 40x-1600x magnification range. LED top/bottom dual illumination and coaxial coarse/fine focusing deliver clear images. Choose the basic clip-stage version or the upgraded 9×9 cm mechanical stage with graduated rulers — ideal for student science and home observation.
- 40x–1600x wide magnification, 4x/10x/40x/100x four-hole achromatic objectives
- Binocular 45° inclined tube, fatigue-free long observation
- LED upper & lower illumination, transparent and opaque specimens both observable
- Coaxial coarse & fine focus, quick image finding and precise focusing
- Basic version with slide clip / upgraded version with 9×9 cm metal travel stage
- 40x–1600x wide magnification, 4x/10x/40x/100x four-hole achromatic objectives
- Binocular 45° inclined tube, optimizes long-duration observation experience
- LED upper & lower illumination, transparent and opaque specimens both observable
- Coaxial coarse & fine focus, easy specimen adjustment and image positioning
- Basic version with slide clip / upgraded version with 9×9 cm metal travel stage, two configurations optional
SAGA XSP-003 Binocular Biological Microscope Product Features
40x–1600x wide magnification
4x/10x/40x/100x four-hole achromatic objectives
Binocular 45° inclined tube
fatigue-free long observation
LED upper & lower illumination
transparent and opaque specimens both observable
Coaxial coarse & fine focus
quick image finding and precise focusing
Basic version with slide clip / upgraded version with 9×9 cm metal travel stage
40x–1600x wide magnification
4x/10x/40x/100x four-hole achromatic objectives
Binocular 45° inclined tube
optimizes long-duration observation experience
LED upper & lower illumination
transparent and opaque specimens both observable
Coaxial coarse & fine focus
easy specimen adjustment and image positioning
Basic version with slide clip / upgraded version with 9×9 cm metal travel stage
two configurations optional
SAGA XSP-003 Binocular Biological Microscope Package Contents
Frequently Asked Questions
How many versions are available for this product?
2 versions: Slide-clip Ver., Mechanical Stage Ver.. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 40x-1600x; Eyepiece: WF10x / WF16x wide-field eyepiece; Objective: Achromatic 4x/ 10x/ 40x/ 100x oil; Nosepiece: Brass quadruple nosepiece; Stage: Slide clips / 9×9cm metal mechanical stage; Light Source: LED top & bottom illumination. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Microscope Unit, 2 Pairs: Wide-field Eyepieces WF10x / WF16x, 4 Achromatic Objectives: 4x/10x/40x/100x, Power Adapter, Dust Cover, Prepared Slides ×5, Tweezers, Portable Storage Pouch.
What are the main features?
40x–1600x wide magnification, 4x/10x/40x/100x four-hole achromatic objectives; Binocular 45° inclined tube, fatigue-free long observation; LED upper & lower illumination, transparent and opaque specimens both observable.
