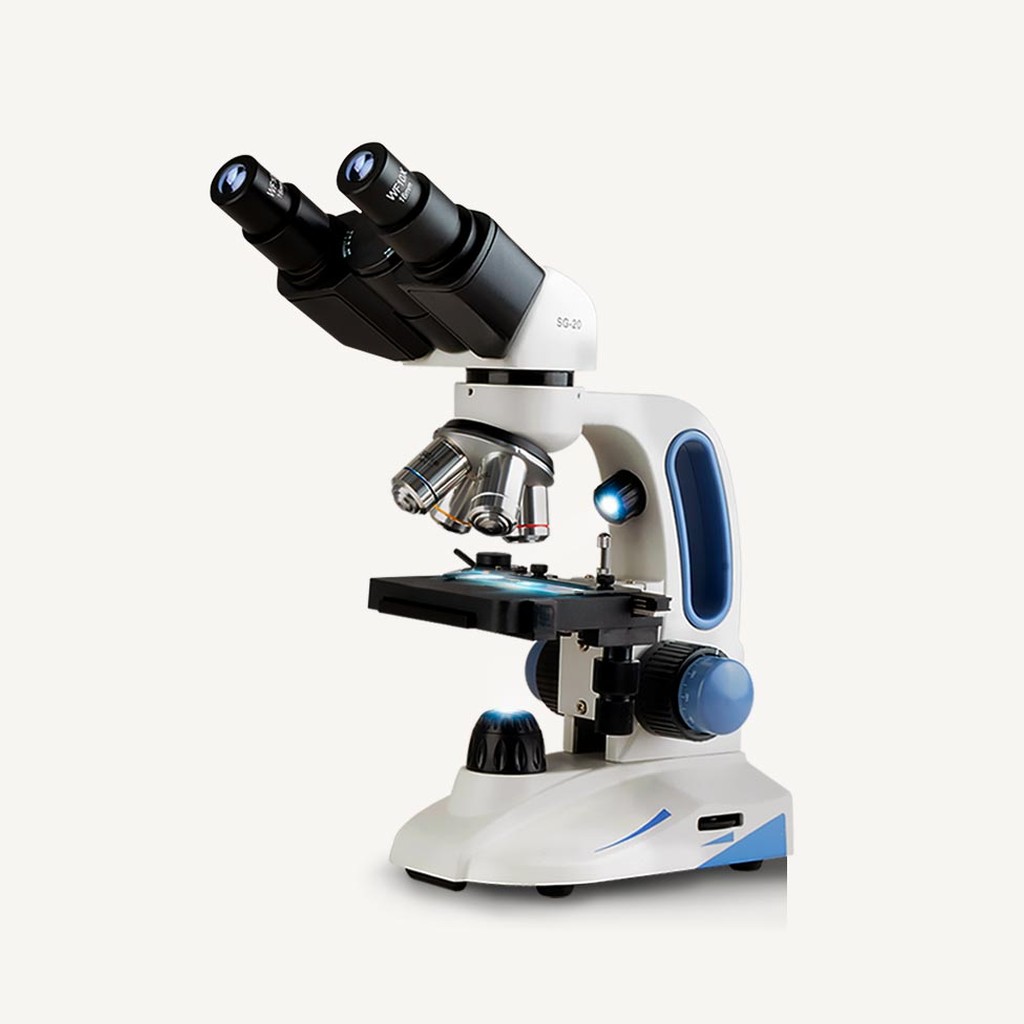

SAGA SG20 Biological Microscope
SAGA SG20 Biological Microscope 1

SAGA SG20 Biological Microscope

Kids & Family ScienceLab ResearchAgriculture Sample CheckLive Blood Test

Key Specs

Magnification 40x-1600x
Eyepiece WF10x / WF16x wide-field eyepiece
Objective Achromatic 4x/10x/40x/100x
Nosepiece Quadruple nosepiece
Inquire Now Download Manual
SPECIFICATIONS

SAGA SG20 Biological Microscope Full Specifications

Magnification 40x-1600x
Eyepiece WF10x / WF16x wide-field eyepiece
Objective Achromatic 4x/10x/40x/100x
Nosepiece Quadruple nosepiece
Stage Double-layer mechanical stage
Light Source LED dual illumination, top & bottom (dimmable)
Focus System Coaxial coarse/fine focus
Material Metal + ABS + optical glass
Interpupillary Distance 54-75mm
Eyepiece Base 30° incline, 360° rotation
Caliper Travel Vertical 30mm / Horizontal 60mm
Material Aluminum alloy
Power AC100V-240V 50/ 60Hz + 3x AA battery dual power
Dimensions 330X190X140mm
Net Weight Approx. 2.6kg
Gross Weight 3.2kg
PRODUCT OVERVIEW

SAGA SG20 Biological Microscope Product Overview

The SAGA SG20 biological microscope meets new curriculum standards. With 4x/10x/40x/100x achromatic objectives and WF10x/WF16x wide-field eyepieces, it delivers a 40x-1600x magnification range. The hinged binocular head features adjustable interpupillary distance; LED top/bottom dual illumination is brightness-adjustable. A double-layer mechanical stage and built-in prism provide standard inverted imaging for student science and classroom experiments.

  • Aligned with new curriculum standards, designed for middle school courses
  • 40x–1600x wide magnification, 4x/10x/40x/100x achromatic objectives
  • Hinged binocular, adjustable interpupillary distance, fatigue-free long observation
  • LED upper & lower illumination, brightness adjustable
  • Double-layer mechanical stage, built-in prism delivers textbook-standard inverted image
  • Meets middle school biology experiment requirements
  • 40x–1600x wide magnification, 4x/10x/40x/100x achromatic objectives with WF10x / WF16x wide-field eyepieces
  • Hinged binocular tube, adjustable interpupillary distance, optimizes long-duration observation
  • LED upper & lower illumination, brightness adjustable
  • Double-layer mechanical stage, easy specimen movement and adjustment
  • Built-in prism, outputs textbook-standard inverted image
WHY THIS ONE

SAGA SG20 Biological Microscope Product Features

Aligned with new curriculum standards

designed for middle school courses

40x–1600x wide magnification

4x/10x/40x/100x achromatic objectives

Hinged binocular

adjustable interpupillary distance, fatigue-free long observation

LED upper & lower illumination

brightness adjustable

Double-layer mechanical stage

built-in prism delivers textbook-standard inverted image

Meets middle school biology experiment requirements

40x–1600x wide magnification

4x/10x/40x/100x achromatic objectives with WF10x / WF16x wide-field eyepieces

Hinged binocular tube

adjustable interpupillary distance, optimizes long-duration observation

LED upper & lower illumination

brightness adjustable

Double-layer mechanical stage

easy specimen movement and adjustment

Built-in prism

outputs textbook-standard inverted image

IN THE BOX

SAGA SG20 Biological Microscope Package Contents

Microscope Unit4 Objectives: 4x/10x/40x/100x2 Eyepiece Pairs: WF10x / WF16xCarry Bag (40×28×21 cm)Power CableUser ManualOuter Packaging
FAQ

Frequently Asked Questions

What are the key specifications?

Magnification: 40x-1600x; Eyepiece: WF10x / WF16x wide-field eyepiece; Objective: Achromatic 4x/10x/40x/100x; Nosepiece: Quadruple nosepiece; Stage: Double-layer mechanical stage; Light Source: LED dual illumination, top & bottom (dimmable). Full parameters are listed in the specification table above.

What is included in the box?

Standard package: Microscope Unit, 4 Objectives: 4x/10x/40x/100x, 2 Eyepiece Pairs: WF10x / WF16x, Carry Bag (40×28×21 cm), Power Cable, User Manual, Outer Packaging.

What are the main features?

Aligned with new curriculum standards, designed for middle school courses; 40x–1600x wide magnification, 4x/10x/40x/100x achromatic objectives; Hinged binocular, adjustable interpupillary distance, fatigue-free long observation.

MORE CHOICES

You May Also Like

BUYING GUIDE

What to Consider When Choosing a Microscope

Magnification

Biological observation commonly spans 40x-1600x. The range determines the level of detail you can see — look at total range, not a single figure.

Viewing Mode

Monocular suits basic learning; binocular is more comfortable for long sessions; trinocular supports a camera. Choose to match your users.

Stage & Focusing

A mechanical stage makes specimen positioning easy, and coaxial coarse/fine dual-speed focusing finds and sharpens the image faster.

Illumination Type

LED illumination is even and long-lasting; transmitted light suits biological slides, and adjustable brightness is more practical.

Objective Setup

Achromatic objectives (10X/40X/100X) are standard; the 100X oil objective reveals bacteria-level detail. Check that objectives are complete.

Interface & Expansion

Models with a screen or digital port allow group viewing, photography and video — ideal for teaching and aquaculture inspection.
