SAGA SG-DM20 Digital Microscope
Companion Software
规格选择
已选：3-hole Ver.
Key Specs
Product Videos
SAGA SG-DM20 Digital Microscope Full Specifications
| 参数 | 3-hole Ver. | 4-hole Ver. |
|---|---|---|
| Total Magnification (objective + head + digital)差异 | 179.2x-1792x | 179.2x-4480x |
| Magnification差异 | 51.2x-512x | 51.2x-1280x |
| Magnification (objective)差异 | 4x/10x/40x | 4x/10x/40x/100x |
| Magnification (digital) | 3.5 | 3.5 |
| Magnification (viewing head) | 12.8 | 12.8 |
| Screen Resolution | 1024X600P | 1024X600P |
| Screen Size | 7" IPS touchscreen, 153×85mm | 7" IPS touchscreen, 153×85mm |
| Camera Sensor | 1/3" 1080 CMOS | 1/3" 1080 CMOS |
| Photo & Video Function | 5MP still / 2MP video @ 30fps | 5MP still / 2MP video @ 30fps |
| Storage Expansion | 16GB TF card included, supports up to 512GB | 16GB TF card included, supports up to 512GB |
| Objective差异 | 185 achromatic 4x/ 10x/ 40x | 185 achromatic 4x/10x/40x/100x oil |
| Nosepiece差异 | Triple nosepiece | Quadruple nosepiece |
| Stage | Double-layer mechanical stage 105x95mm | Double-layer mechanical stage 105x95mm |
| Light Source | LED top & bottom illumination | LED top & bottom illumination |
| Focus System | Coaxial dual-speed coarse/fine focus | Coaxial dual-speed coarse/fine focus |
| Data Interface | Type-C power, USB (flash drive), HDMI output | Type-C power, USB (flash drive), HDMI output |
| Power Supply Mode | Type-C direct / power bank / 18650 Li-ion | Type-C direct / power bank / 18650 Li-ion |
| HDMI Output | 1920X1080@30fps | 1920X1080@30fps |
| Material | Metal + ABS + optical glass | Metal + ABS + optical glass |
| Net Weight | Approx. 2.1kg | Approx. 2.1kg |
| Gross Weight | Approx. 3.2kg | Approx. 3.2kg |
| Application | Kids science, teaching labs, aquaculture, water quality testing | Kids science, teaching labs, aquaculture, water quality testing |
SAGA SG-DM20 Digital Microscope Product Overview

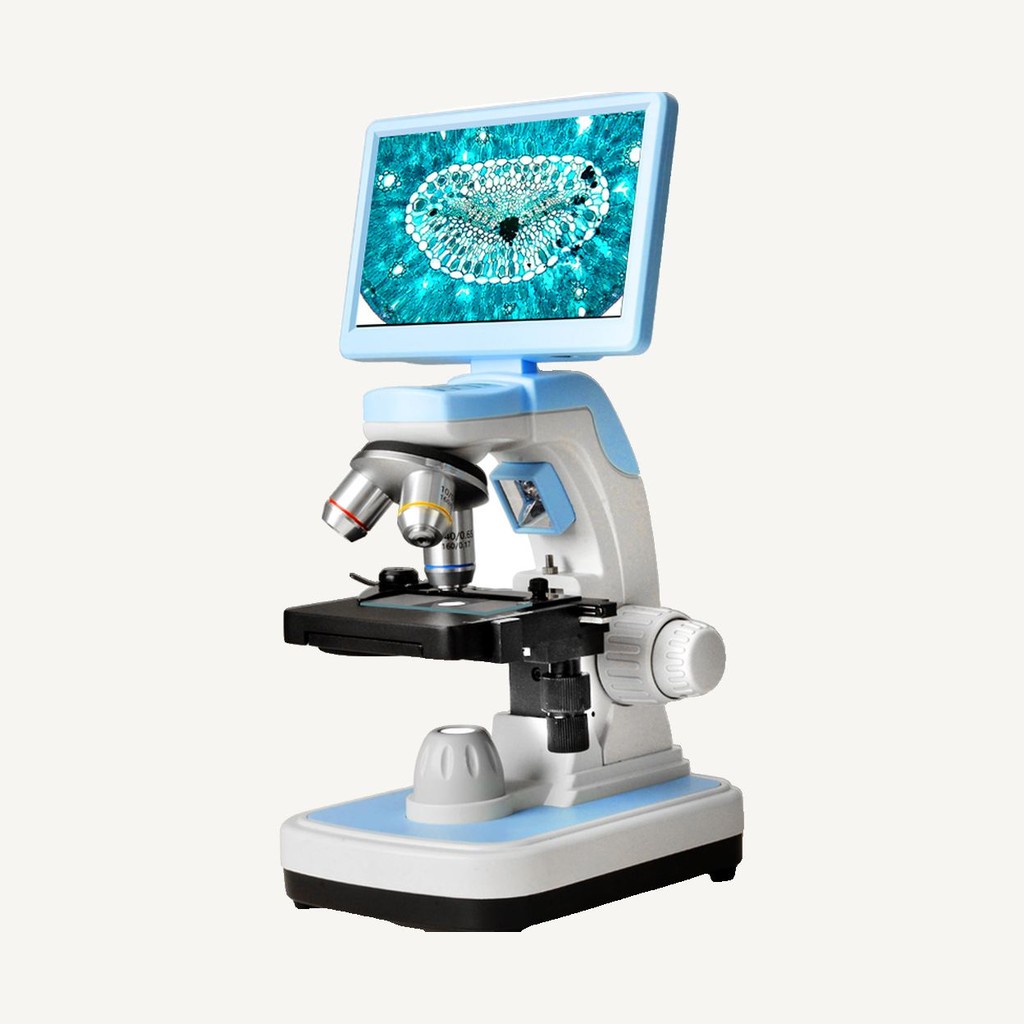

The SAGA SG-DM20 digital all-in-one microscope features a built-in 7-inch IPS touch screen and 1/3" CMOS digital imaging for photo, video, and group viewing. With 4x/10x/40x (3-hole version) or 4x/10x/40x/100x oil (4-hole version) 185 achromatic objectives, it delivers 40x-640x to 40x-1600x magnification. Supporting Type-C, power bank, and 18650 Li-ion power, it connects to computers, TVs, projectors, and monitors — ideal for kids' science, classroom teaching, aquaculture, and water quality inspection.
- 7-inch IPS touch screen, observe / photo / video without eyepiece
- 1/3" CMOS digital imaging, 5 MP still photo / 2 MP video
- 3-hole 4x/10x/40x, 4-hole adds 100x oil objective, 40x–1600x magnification
- Type-C / power bank / 18650 Li-ion battery, three power modes, indoor and outdoor
- HDMI + USB output, connects to computer, TV, projector and monitor
- 7-inch IPS touch screen, observe / photo / video without eyepiece
- 1/3" CMOS digital imaging, 5 MP still / 2 MP video recording
- 3-hole version with 4x/10x/40x objectives; 4-hole adds 100x oil, 40x–1600x magnification
- Type-C / power bank / 18650 Li-ion three power modes, indoor and outdoor
- HDMI + USB output ports, connect to computer, TV, projector and monitor
SAGA SG-DM20 Digital Microscope Product Features
7-inch IPS touch screen
observe / photo / video without eyepiece
1/3" CMOS digital imaging
5 MP still photo / 2 MP video
3-hole 4x/10x/40x
4-hole adds 100x oil objective, 40x–1600x magnification
Type-C / power bank / 18650 Li-ion battery
three power modes, indoor and outdoor
HDMI + USB output
connects to computer, TV, projector and monitor
7-inch IPS touch screen
observe / photo / video without eyepiece
1/3" CMOS digital imaging
5 MP still / 2 MP video recording
3-hole version with 4x/10x/40x objectives; 4-hole adds 100x oil
40x–1600x magnification
Type-C / power bank / 18650 Li-ion three power modes
indoor and outdoor
HDMI + USB output ports
connect to computer, TV, projector and monitor
SAGA SG-DM20 Digital Microscope Package Contents
Frequently Asked Questions
How many versions are available for this product?
2 versions: 3-hole Ver., 4-hole Ver.. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 51.2x-1280x; Magnification (digital): 3.5; Magnification (viewing head): 12.8; Screen Resolution: 1024X600P; Screen Size: 7" IPS touchscreen, 153×85mm; Camera Sensor: 1/3" 1080 CMOS. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Digital Microscope Unit (with 7-inch Touchscreen), Dust Cover, Carry Bag, 4x/10x/40x Achromatic Objectives (3-hole) / Extra 100x Oil Objective (4-hole), HDMI Cable (1.5 m), 16GB TF Card (pre-installed), Power Cable (1.5 m), Computer Connection Cable (1.5 m).
What are the main features?
7-inch IPS touch screen, observe / photo / video without eyepiece; 1/3" CMOS digital imaging, 5 MP still photo / 2 MP video; 3-hole 4x/10x/40x, 4-hole adds 100x oil objective, 40x–1600x magnification.
