SAGA Microscope SG40 Monocular/Monocular TV/Binocular/Binocular TV
Companion Software
Choose Variant
Selected:Monocular
Key Specs
Product Videos
SAGA Microscope SG40 Monocular/Monocular TV/Binocular/Binocular TV Full Specifications
| Parameter | Monocular | Monocular TV | Binocular | Binocular TV |
|---|---|---|---|---|
| Viewing HeadDiff | Monocular head | Monocular head + vertical TV port (accepts digital eyepiece / CCD / DSLR kit) | Binocular head | Binocular head + vertical TV port (for digital eyepiece / CCD / DSLR) |
| Magnification | 40x-1600x | 40x-1600x | 40x-1600x | 40x-1600x |
| Eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece |
| Objective | 195 high-grade achromatic 4x/10x/40x/100x oil | 195 high-grade achromatic 4x/10x/40x/100x oil | 195 high-grade achromatic 4x/10x/40x/100x oil | 195 high-grade achromatic 4x/10x/40x/100x oil |
| Nosepiece | Quadruple nosepiece | Quadruple nosepiece | Quadruple nosepiece | Quadruple nosepiece |
| Stage | Double-layer mechanical stage | Double-layer mechanical stage | Double-layer mechanical stage | Double-layer mechanical stage |
| Bottom LED Light | LED top & bottom illumination | LED top & bottom illumination | LED top & bottom illumination | LED top & bottom illumination |
| Focus System | Coaxial coarse/fine focus | Coaxial coarse/fine focus | Coaxial coarse/fine focus | Coaxial coarse/fine focus |
| Interpupillary Distance | 50-75mm | 50-75mm | 50-75mm | 50-75mm |
| Condenser | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray |
| Eyepiece Base | 30° incline, 360° rotation | 30° incline, 360° rotation | 30° incline, 360° rotation | 30° incline, 360° rotation |
| Caliper Travel | Vertical 30mm / Horizontal 70mm | Vertical 30mm / Horizontal 70mm | Vertical 30mm / Horizontal 70mm | Vertical 30mm / Horizontal 70mm |
| Illumination System | 2W LED illumination | 2W LED illumination | 2W LED illumination | 2W LED illumination |
| Power | AC 100-240V 50/60Hz + 3x AA batteries, dual power | AC 100-240V 50/60Hz + 3x AA batteries, dual power | AC 100-240V 50/60Hz + 3x AA batteries, dual power | AC 100-240V 50/60Hz + 3x AA batteries, dual power |
| Dimensions | 220×155×400mm | 220×155×400mm | 220×155×400mm | 220×155×400mm |
| Net Weight | Approx. 3.9kg | Approx. 3.9kg | Approx. 3.9kg | Approx. 3.9kg |
| Gross Weight | Approx. 5kg | Approx. 5kg | Approx. 5kg | Approx. 5kg |
SAGA Microscope SG40 Monocular/Monocular TV/Binocular/Binocular TV Product Overview

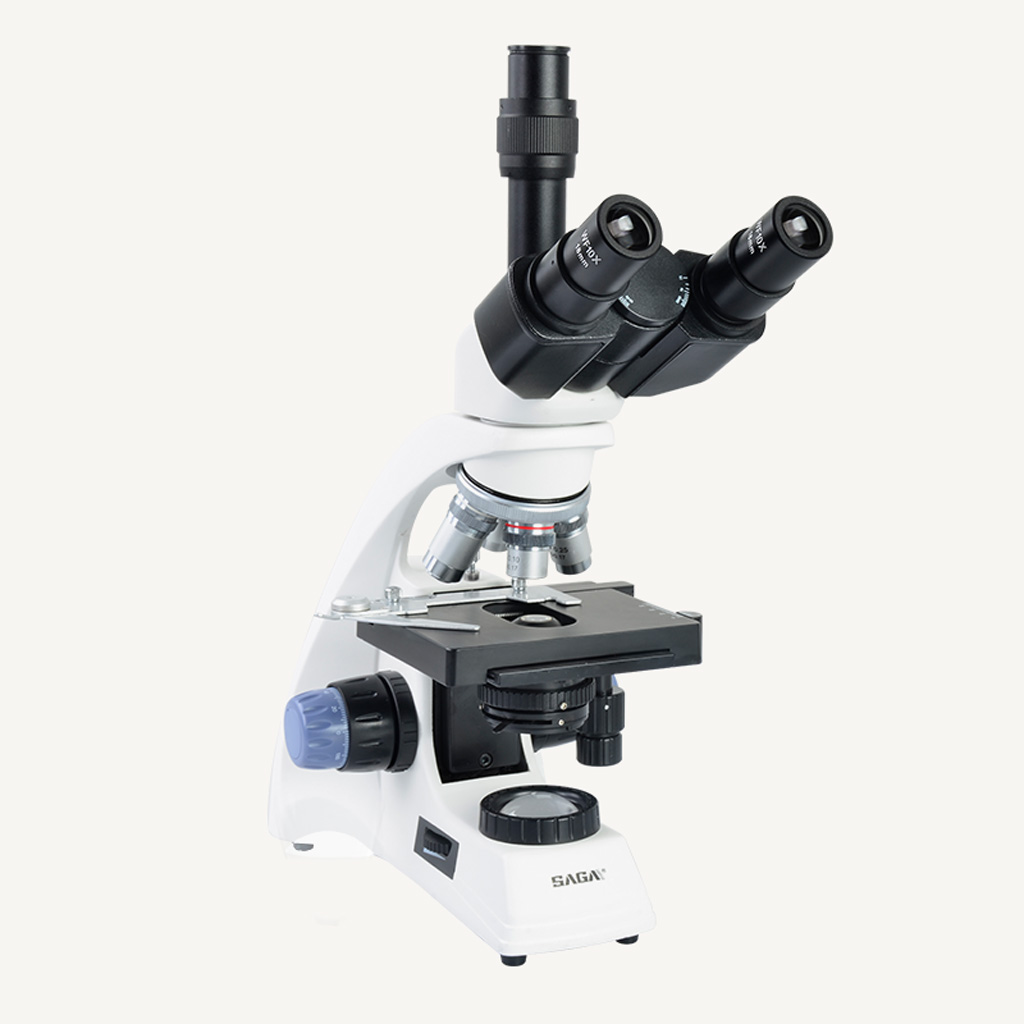

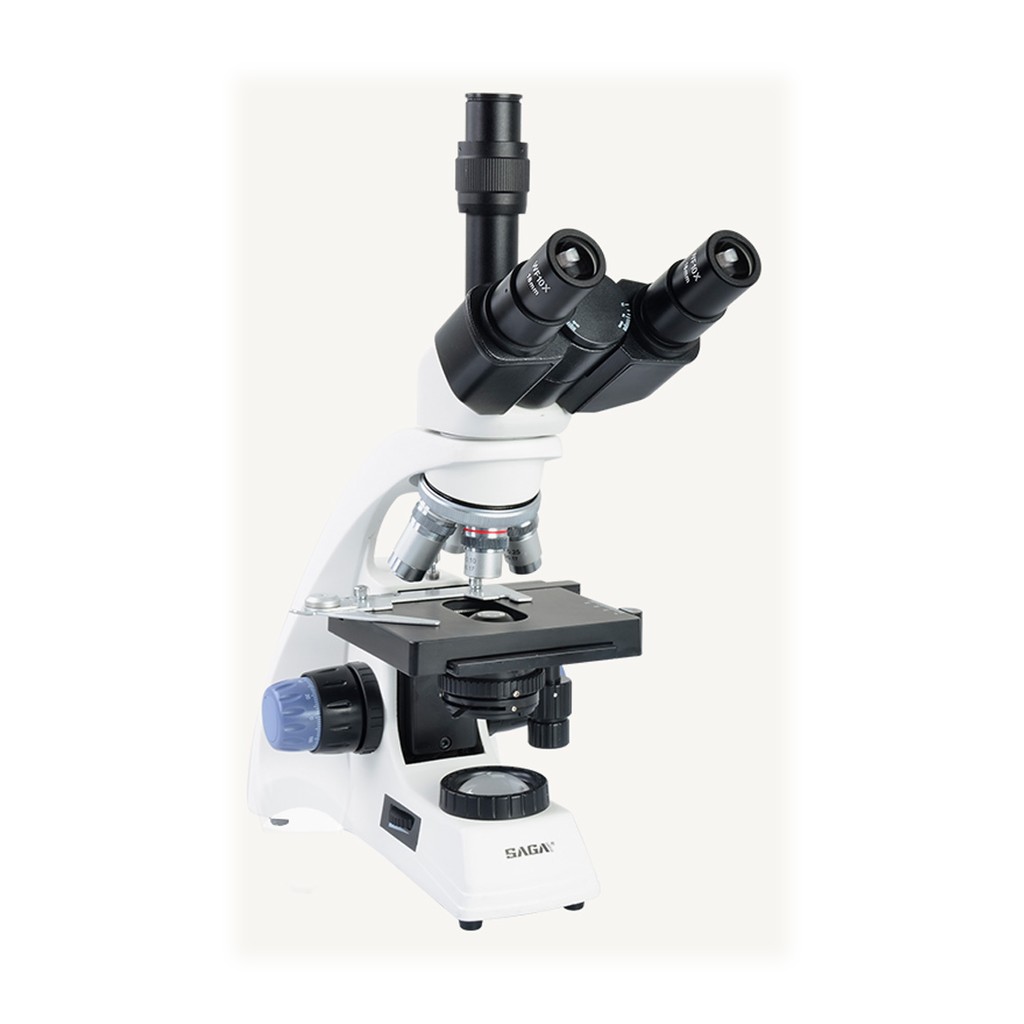

The SAGA SG40 biological microscope series offers four viewing head options: monocular, monocular TV, binocular, and binocular TV. It suits science education, school labs, clinical inspections, and entry-level laboratory research. All-metal body with smooth streamline design, quadruple nosepiece with 195 achromatic objectives, 40x-1600x magnification, LED top/bottom dual illumination, and battery/adapter dual power.
- Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes, free choice for teaching and research
- 195 high-grade achromatic objectives + four-hole nosepiece, 40x–1600x optical magnification
- Battery + adapter dual power, indoor and outdoor
- All-metal body, 3.9 kg net weight, sturdy and durable
- Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes, multiple configurations
- 195 achromatic objectives with four-hole nosepiece, 40x–1600x optical magnification
- Bottom LED light for transparent specimens
- Battery + adapter dual power, fits indoor and outdoor environments
- All-metal body, 3.9 kg net weight, sturdy and durable structure
- All-metal body, 3.9 kg net weight, sturdy and durable structure
SAGA Microscope SG40 Monocular/Monocular TV/Binocular/Binocular TV Product Features
Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes
free choice for teaching and research
195 high-grade achromatic objectives + four-hole nosepiece
40x–1600x optical magnification
Battery + adapter dual power
indoor and outdoor
All-metal body
3.9 kg net weight, sturdy and durable
Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes
multiple configurations
195 achromatic objectives with four-hole nosepiece
40x–1600x optical magnification
Bottom LED light for transparent specimens
Battery + adapter dual power
fits indoor and outdoor environments
All-metal body
3.9 kg net weight, sturdy and durable structure
All-metal body
3.9 kg net weight, sturdy and durable structure
SAGA Microscope SG40 Monocular/Monocular TV/Binocular/Binocular TV Package Contents
Frequently Asked Questions
How many versions are available for this product?
4 versions: Monocular, Monocular TV, Binocular, Binocular TV. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Viewing Head: Monocular / Monocular+TV / Binocular / Binocular+TV; Magnification: 40x-1600x; Eyepiece: WF10x / WF16x wide-field eyepiece; Objective: 195 high-grade achromatic 4x/10x/40x/100x oil; Nosepiece: Quadruple nosepiece; Stage: Double-layer mechanical stage. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Microscope Unit, WF10x / WF16x Eyepieces (1 each for monocular, 2 each for binocular), 4x/10x/40x/100x Achromatic Objectives, Double-layer Mechanical Stage, Power Adapter, Dust Cover, Lens Tissue, User Manual / Warranty Card.
What are the main features?
Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes, free choice for teaching and research; 195 high-grade achromatic objectives + four-hole nosepiece, 40x–1600x optical magnification; Battery + adapter dual power, indoor and outdoor.
You May Also Like

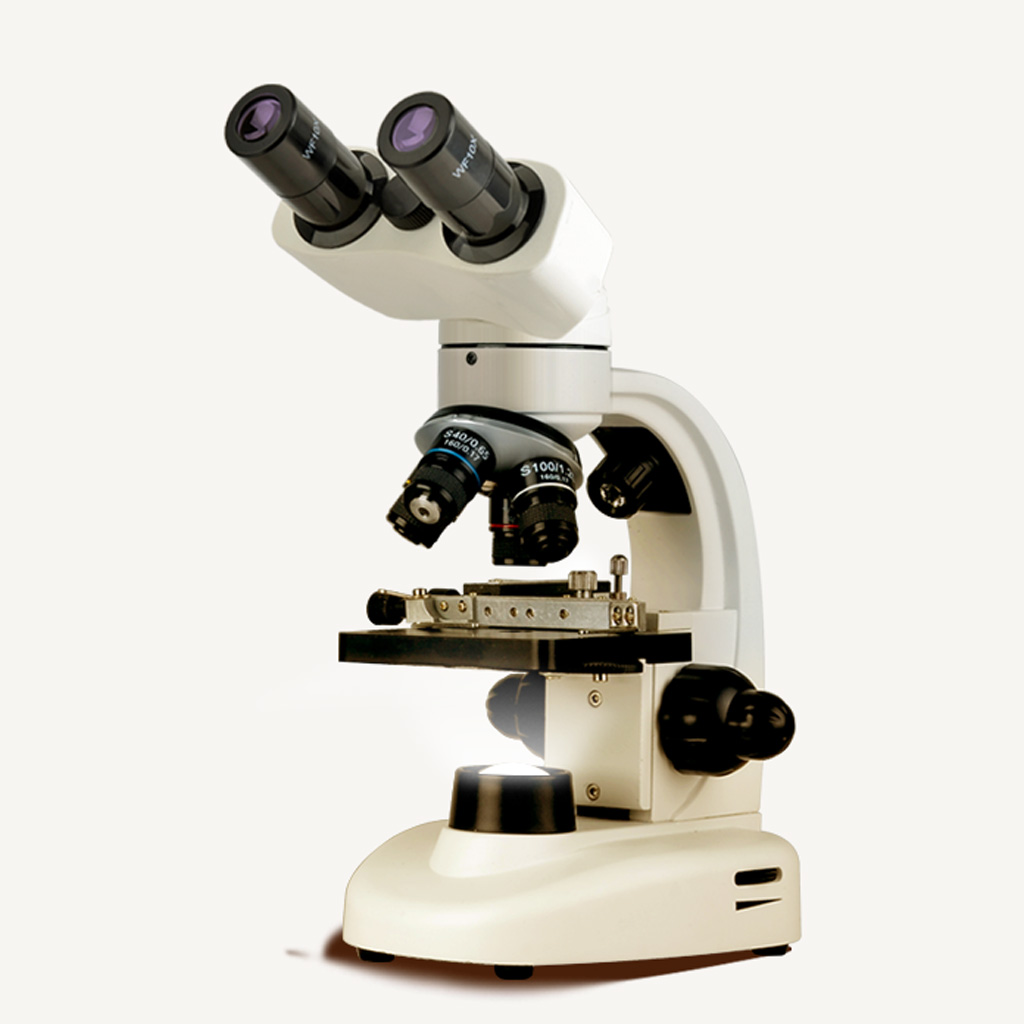

SAGA XSP-003 Binocular Biological Microscope
40x-1600x / LED / Binocular
The SAGA XSP-003 binocular biological microscope features a four-position nosepiece with 4x/10x/40x/100x achromatic objectives for a 40x-1600x magnification range. LED top/bottom dual illumination and coaxial coarse/fine focusing deliver clear images. Choose the basic clip-stage version or the upgraded 9×9 cm mechanical stage with graduated rulers — ideal for student science and home observation.

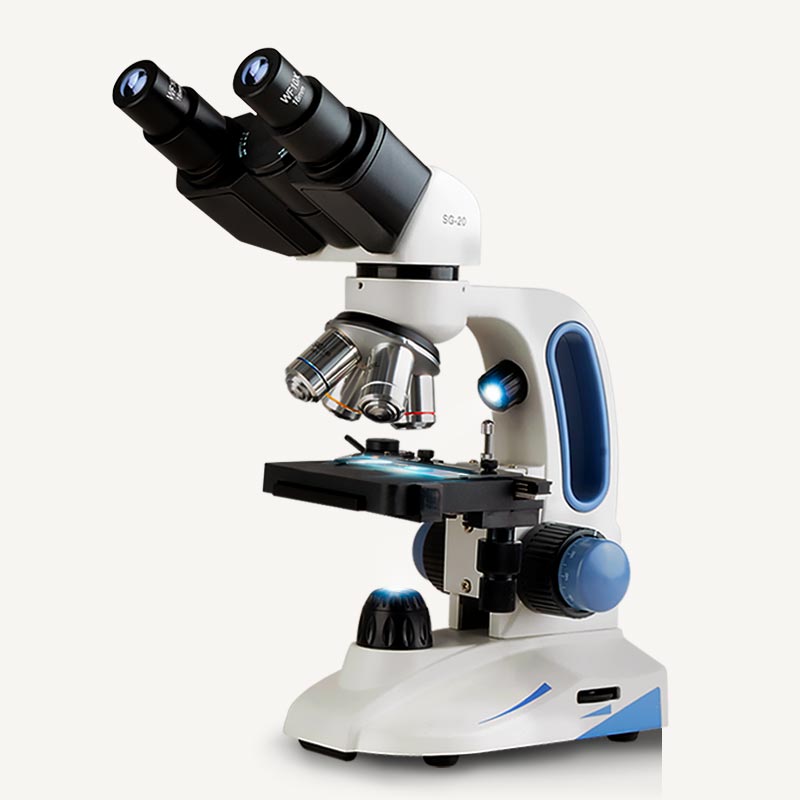

SAGA SG20 Biological Microscope
40x-1600x / LED / Binocular
The SAGA SG20 biological microscope meets new curriculum standards. With 4x/10x/40x/100x achromatic objectives and WF10x/WF16x wide-field eyepieces, it delivers a 40x-1600x magnification range. The hinged binocular head features adjustable interpupillary distance; LED top/bottom dual illumination is brightness-adjustable. A double-layer mechanical stage and built-in prism provide standard inverted imaging for student science and classroom experiments.

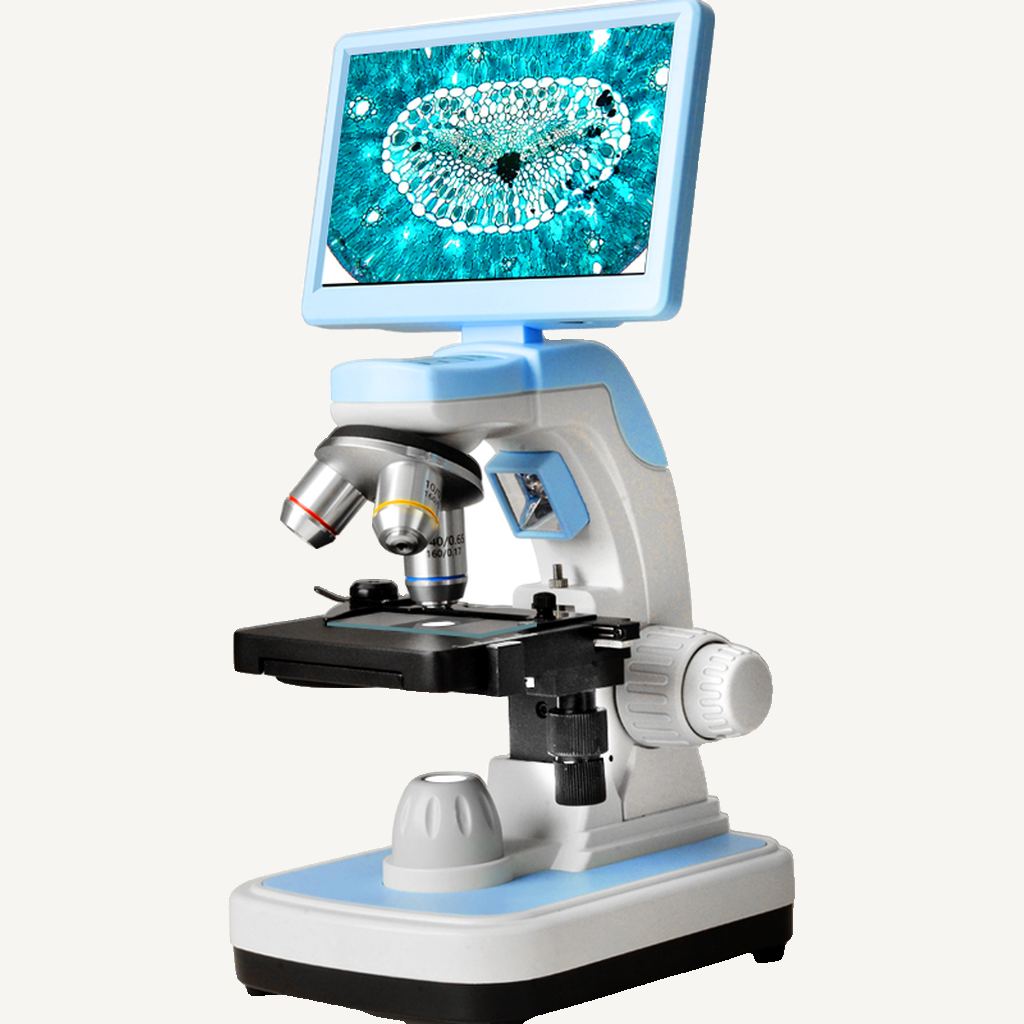

SAGA SG-DM20 Digital Microscope
40x-1600x / 7" touchscreen / Digital imaging
The SAGA SG-DM20 digital all-in-one microscope features a built-in 7-inch IPS touch screen and 1/3" CMOS digital imaging for photo, video, and group viewing. With 4x/10x/40x (3-hole version) or 4x/10x/40x/100x oil (4-hole version) 185 achromatic objectives, it delivers 40x-640x to 40x-1600x magnification. Supporting Type-C, power bank, and 18650 Li-ion power, it connects to computers, TVs, projectors, and monitors — ideal for kids' science, classroom teaching, aquaculture, and water quality inspection.

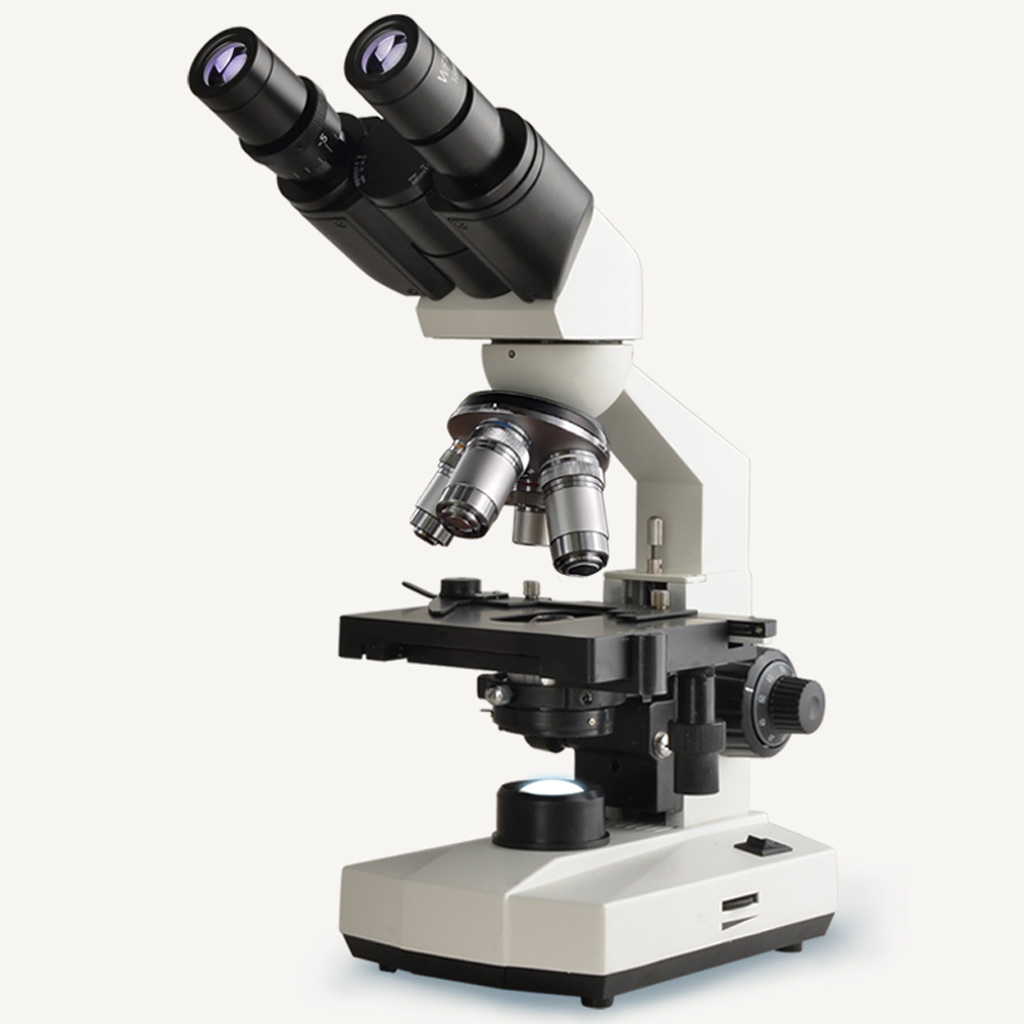

SAGA Microscope SG30 Monocular/Binocular
