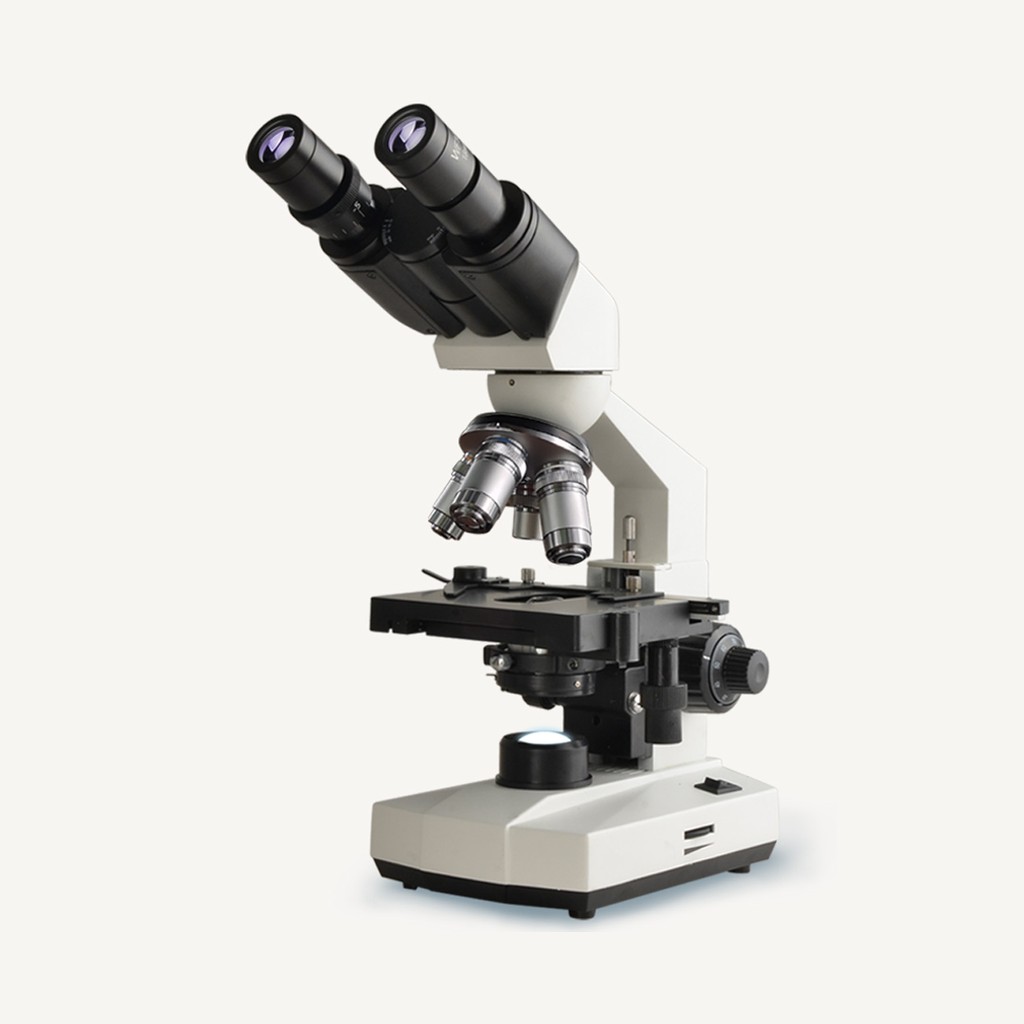

SAGA Microscope SG30 Monocular/Binocular
Companion Software
Choose Variant
Selected:Monocular 3-hole
Key Specs
Product Videos
SAGA Microscope SG30 Monocular/Binocular Full Specifications
| Parameter | Monocular 3-hole | Monocular 4-hole | Binocular 3-hole | Binocular 4-hole |
|---|---|---|---|---|
| Magnification | 40x-1600x | 40x-1600x | 40x-1600x | 40x-1600x |
| Viewing HeadDiff | Monocular head | Monocular head | Binocular head | Binocular head |
| NosepieceDiff | Triple nosepiece | Quadruple nosepiece | Triple nosepiece | Quadruple nosepiece |
| Eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece |
| Objective | 195 high-grade achromatic 4x/10x/40x/100x oil | 195 high-grade achromatic 4x/10x/40x/100x oil | 195 high-grade achromatic 4x/10x/40x/100x oil | 195 high-grade achromatic 4x/10x/40x/100x oil |
| Stage | Double-layer mechanical stage | Double-layer mechanical stage | Double-layer mechanical stage | Double-layer mechanical stage |
| Bottom LED Light | LED top & bottom illumination | LED top & bottom illumination | LED top & bottom illumination | LED top & bottom illumination |
| Focus System | Coaxial coarse/fine focus | Coaxial coarse/fine focus | Coaxial coarse/fine focus | Coaxial coarse/fine focus |
| Power | AC100V-240V 50/ 60Hz + 3x AA battery dual power | AC100V-240V 50/ 60Hz + 3x AA battery dual power | AC100V-240V 50/ 60Hz + 3x AA battery dual power | AC100V-240V 50/ 60Hz + 3x AA battery dual power |
| Eyepiece Base | 30° incline, 360° rotation | 30° incline, 360° rotation | 30° incline, 360° rotation | 30° incline, 360° rotation |
| Interpupillary Distance | 54-75mm | 54-75mm | 54-75mm | 54-75mm |
| Condenser | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray |
| Caliper Travel | Vertical 25mm / Horizontal 65mm | Vertical 25mm / Horizontal 65mm | Vertical 25mm / Horizontal 65mm | Vertical 25mm / Horizontal 65mm |
| Dimensions | 330×180×130mm | 330×180×130mm | 330×180×130mm | 330×180×130mm |
| Net Weight | Approx. 3.2kg | Approx. 3.2kg | Approx. 3.2kg | Approx. 3.2kg |
| Gross Weight | 4.5kg | 4.5kg | 4.5kg | 4.5kg |
SAGA Microscope SG30 Monocular/Binocular Product Overview
The SAGA SG30 biological microscope series offers monocular and binocular viewing head options, suitable for science education and entry-level laboratory observation. Professional optical performance with 40x-1600x magnification, quadruple nosepiece with 195 achromatic objectives, LED top/bottom dual illumination, and battery/adapter dual power.
- Monocular / binocular observation tubes, both teaching and lab use
- 40x–1600x optical magnification, four-hole nosepiece with 195 achromatic objectives
- Battery + adapter dual power, indoor and outdoor
- All-metal body, sturdy and durable
- Monocular / binocular observation tubes, both teaching and lab observation
- 40x–1600x optical magnification, four-hole nosepiece with 195 achromatic objectives
- Bottom LED light for transparent specimens
- Battery + adapter dual power, fits indoor and outdoor environments
- All-metal body, sturdy and durable structure
- All-metal body, sturdy and durable structure
SAGA Microscope SG30 Monocular/Binocular Product Features
Monocular / binocular observation tubes
both teaching and lab use
40x–1600x optical magnification
four-hole nosepiece with 195 achromatic objectives
Battery + adapter dual power
indoor and outdoor
All-metal body
sturdy and durable
Monocular / binocular observation tubes
both teaching and lab observation
40x–1600x optical magnification
four-hole nosepiece with 195 achromatic objectives
Bottom LED light for transparent specimens
Battery + adapter dual power
fits indoor and outdoor environments
All-metal body
sturdy and durable structure
All-metal body
sturdy and durable structure
SAGA Microscope SG30 Monocular/Binocular Package Contents
Frequently Asked Questions
How many versions are available for this product?
4 versions: Monocular 3-hole, Monocular 4-hole, Binocular 3-hole, Binocular 4-hole. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 40x-1600x; Viewing Head: Monocular / Binocular; Eyepiece: WF10x / WF16x wide-field eyepiece; Objective: 195 high-grade achromatic 4x/10x/40x/100x oil; Stage: Double-layer mechanical stage; Bottom LED Light: LED top & bottom illumination. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Microscope Unit, WF10x/WF16x Eyepiece, 4x/10x/40x/100x Achromatic Objectives, Objective Storage Box, Shockproof Bag, Dust Cover, Power Cor, User Manual.
What are the main features?
Monocular / binocular observation tubes, both teaching and lab use; 40x–1600x optical magnification, four-hole nosepiece with 195 achromatic objectives; Battery + adapter dual power, indoor and outdoor.
