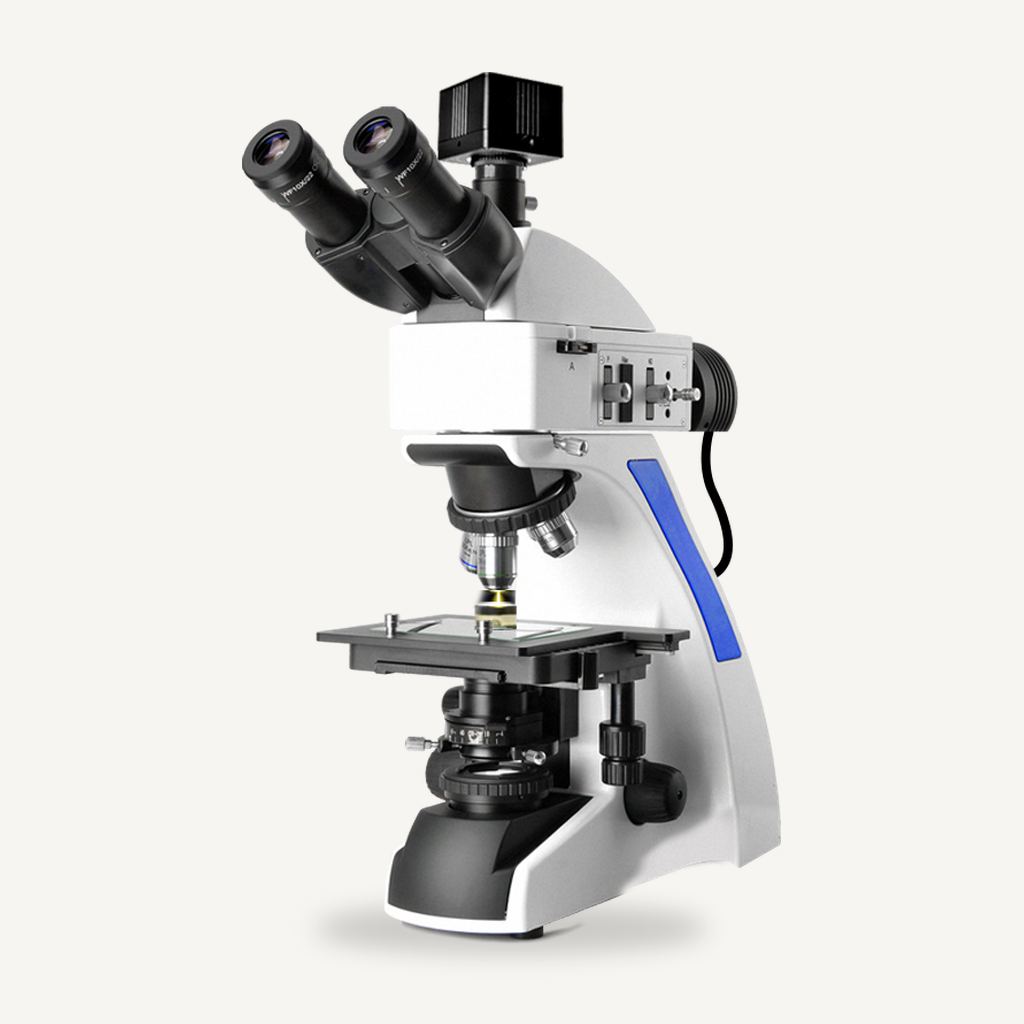

SAGA Metallurgical Microscope MG3000
Companion Software
Key Specs
Product Videos
SAGA Metallurgical Microscope MG3000 Full Specifications
| Model | MG3000 |
|---|---|
| Optical System | Infinity-corrected optical system |
| Magnification | 40X-1000X |
| Viewing Head | Hinged trinocular head, 30° incline |
| Eyepiece | WF10x wide-field eyepiece |
| Objective | Plan achromatic 4x/10x/40x/100x |
| Nosepiece | Quadruple inward-tilting nosepiece |
| Observation Mode | Bright-field + polarization |
| Illumination | LED dual illumination (reflected / transmitted) |
| Condenser | Abbe condenser N.A.1.25 |
| Stage | Double-layer mechanical stage |
| Focus System | Coaxial coarse/fine focus |
| Power | AC100V-240V 50/60Hz |
| Dimensions | 470×320×420mm |
| Net Weight | Approx. 9kg |
| Application | Metallographic analysis, metal material testing, semiconductors, PCB and ore identification |
SAGA Metallurgical Microscope MG3000 Product Overview
The SAGA upright metallurgical microscope MG3000 features an infinity-corrected optical system with 40X-1000X magnification, plan achromatic objectives (4x/10x/40x/100x) and a WF10x wide-field eyepiece for sharp, clear imaging. The hinged trinocular viewing head is inclined at 30° and can connect to a camera or computer for photo, video and image analysis. It offers bright-field and polarization observation with LED dual illumination — reflected light for inspecting the surface of opaque samples such as metals, ores and semiconductors, and transmitted light for transparent thin sections. A double-layer mechanical stage and coaxial coarse/fine focusing make it ideal for metallographic analysis, metal material testing, casting and heat treatment, semiconductors, PCB and ore identification.
- Upright metallurgical microscope with infinity-corrected optical system for sharp imaging
- 40X-1000X magnification, plan achromatic objectives 4x/10x/40x/100x
- Hinged trinocular head at 30° incline, camera / computer connection
- Bright-field + polarization dual observation modes for metallographic analysis
- LED dual illumination for both reflected and transmitted light
- Double-layer mechanical stage for smooth, precise positioning
- Coaxial coarse/fine focus for easy operation
SAGA Metallurgical Microscope MG3000 Product Features
Upright metallurgical microscope with infinity-corrected optical system for sharp imaging
40X-1000X magnification
plan achromatic objectives 4x/10x/40x/100x
Hinged trinocular head at 30° incline
camera / computer connection
Bright-field + polarization dual observation modes for metallographic analysis
LED dual illumination for both reflected and transmitted light
Double-layer mechanical stage for smooth
precise positioning
Coaxial coarse/fine focus for easy operation
SAGA Metallurgical Microscope MG3000 Package Contents
Frequently Asked Questions
What are the key specifications?
Model: MG3000; Optical System: Infinity-corrected optical system; Magnification: 40X-1000X; Viewing Head: Hinged trinocular head, 30° incline; Eyepiece: WF10x wide-field eyepiece; Objective: Plan achromatic 4x/10x/40x/100x. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Metallurgical Microscope Unit, WF10x Eyepiece, Objectives: 4x/10x/40x/100x, Polarizer, Analyzer, Power Cord, Dust Cover, Instruction Manual.
What are the main features?
Upright metallurgical microscope with infinity-corrected optical system for sharp imaging; 40X-1000X magnification, plan achromatic objectives 4x/10x/40x/100x; Hinged trinocular head at 30° incline, camera / computer connection.
