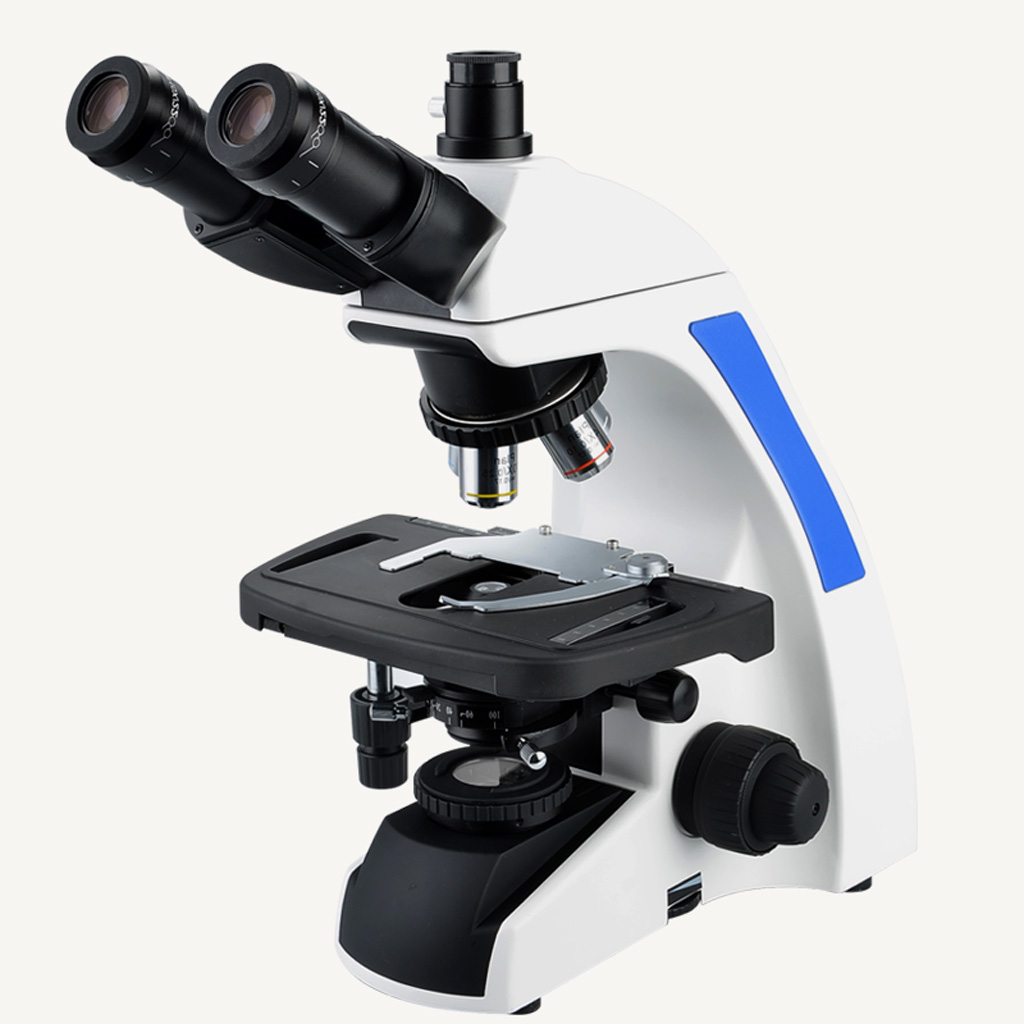

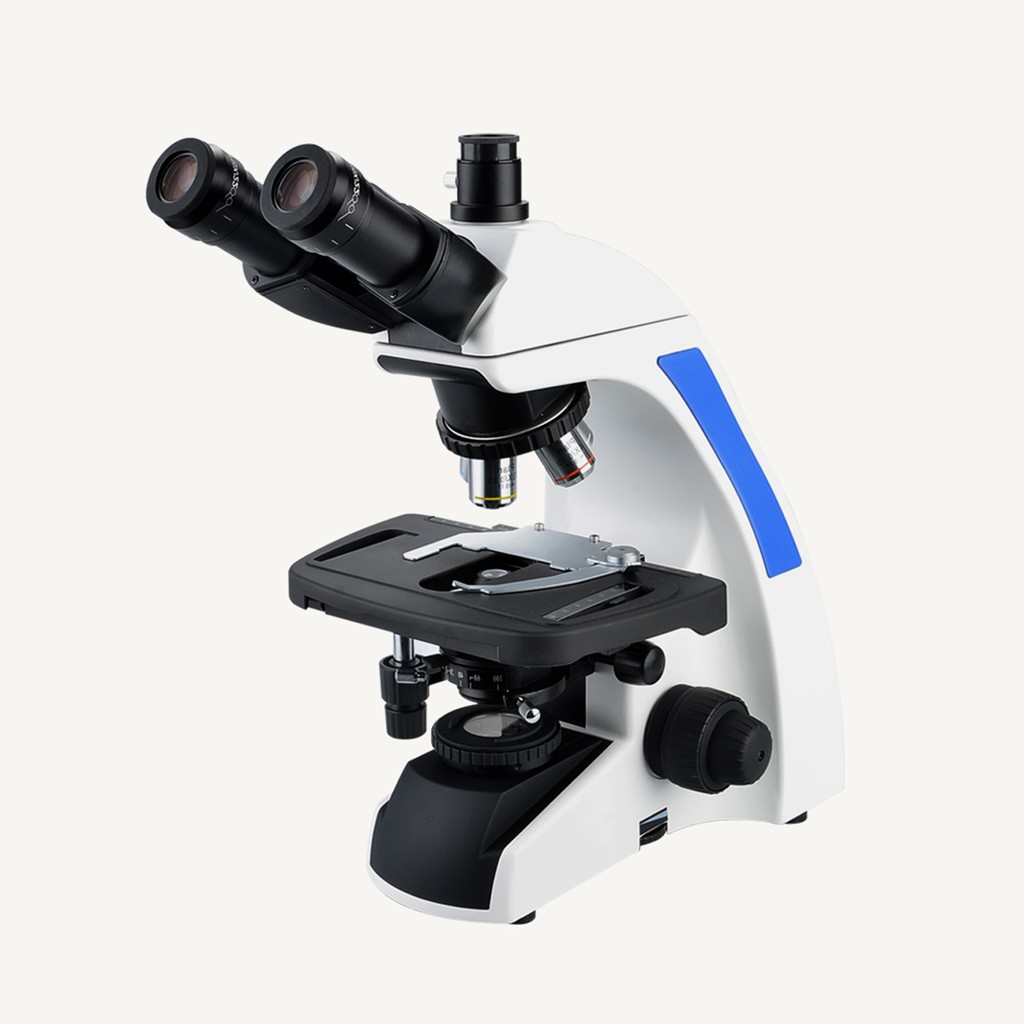

SAGA Microscope SG300
Companion Software
Key Specs
Product Videos
SAGA Microscope SG300 Full Specifications
| Magnification | 40x-1600x |
|---|---|
| Magnification with 10x Eyepiece | 40X/100X/400X/1000X |
| Magnification with 16x Eyepiece | 64X/160X/640X/1600X |
| Optical System | Infinity optical system |
| Objective | Plan achromatic objective 4x/10x/40x/100x oil |
| Eyepiece | Plan eyepiece WF10X/22mm, WF16X/13mm |
| Viewing Head | Binocular head + vertical TV port |
| Stage | Double-layer mechanical stage with graphite coating, 220×150mm extra-large |
| Condenser | Abbe condenser, independent lift, dark-field capable |
| Caliper Travel | Vertical 60mm / Horizontal 80mm |
| Illumination System | 3W LED Köhler illumination, adjustable brightness / iris |
| Nosepiece | Quadruple inward nosepiece |
| Focus System | Coaxial dual-speed coarse/fine focus |
| Power | AC100V-240V 50/60Hz |
| Dimensions | 270X200X400mm |
| Net Weight | Approx. 7kg |
| Gross Weight | 9.3kg |
SAGA Microscope SG300 Product Overview
The SAGA SG300 flagship biological microscope features an infinity-corrected optical system and plan achromatic objectives for sharp, flat images from edge to edge. Equipped with 4-piece high-eyepoint wide-field eyepieces, a large graphite mechanical stage, a high-performance Abbe condenser with dark-field support, and Köhler illumination, it is ideal for laboratory research, basic medical research, and teaching.
- Infinity optical system + PLAN achromatic objectives, clear and flat imaging to field edge
- 4-element high eye-point wide-field eyepiece, 30 mm + 23 mm wide-field view
- Large graphite stage, secure specimen hold, durable
- Abbe condenser, independent lift, supports dark-field observation
- Kohler illumination system, brightness and aperture independently adjustable
SAGA Microscope SG300 Product Features
Infinity optical system + PLAN achromatic objectives
clear and flat imaging to field edge
4-element high eye-point wide-field eyepiece
30 mm + 23 mm wide-field view
Large graphite stage
secure specimen hold, durable
Abbe condenser
independent lift, supports dark-field observation
Kohler illumination system
brightness and aperture independently adjustable
SAGA Microscope SG300 Package Contents
Frequently Asked Questions
What are the key specifications?
Magnification: 40x-1600x; Magnification with 10x Eyepiece: 40X/100X/400X/1000X; Magnification with 16x Eyepiece: 64X/160X/640X/1600X; Optical System: Infinity optical system; Objective: Plan achromatic objective 4x/10x/40x/100x oil; Eyepiece: Plan eyepiece WF10X/22mm, WF16X/13mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Microscope Unit, High Eye-point Eyepiece, PLAN Achromatic Objectives, Power Adapter, Dust Cover, Cedar oil, Fuse, Filter.
What are the main features?
Infinity optical system + PLAN achromatic objectives, clear and flat imaging to field edge; 4-element high eye-point wide-field eyepiece, 30 mm + 23 mm wide-field view; Large graphite stage, secure specimen hold, durable.
