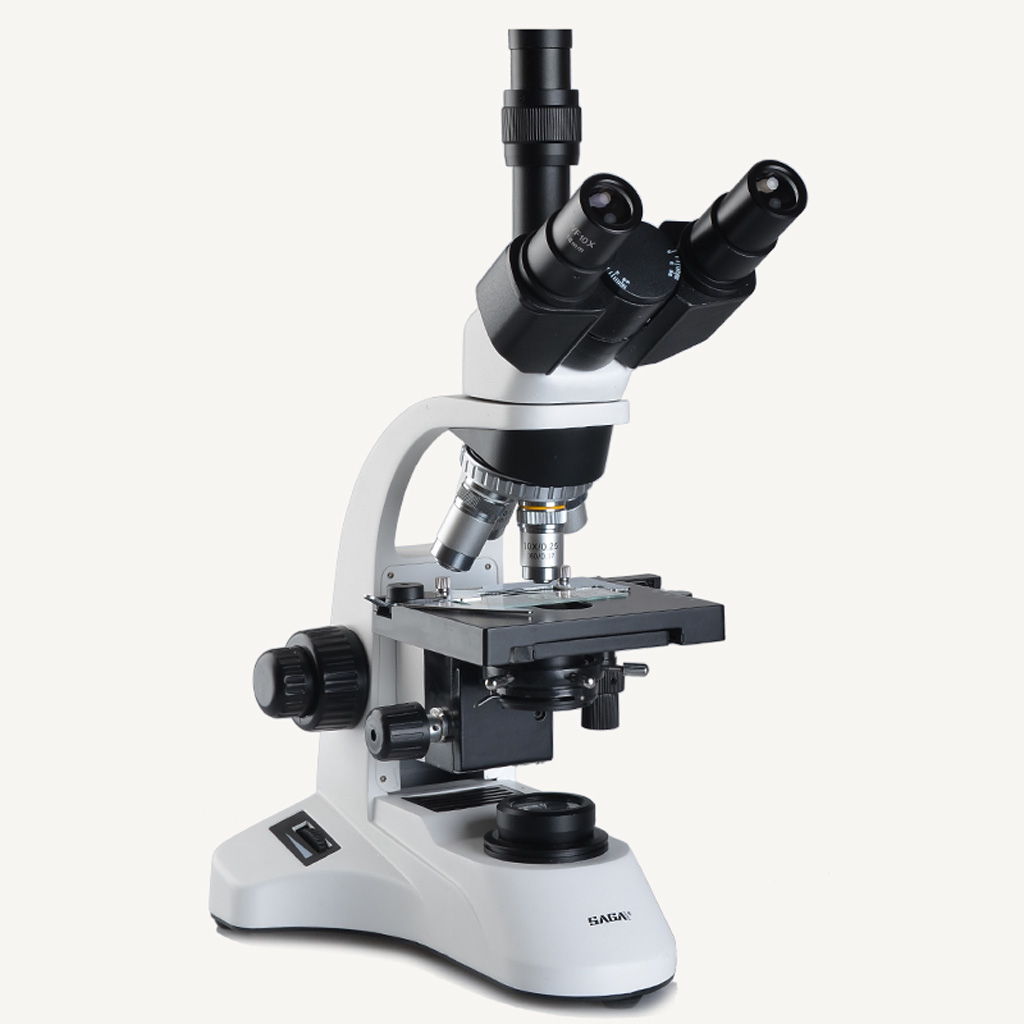

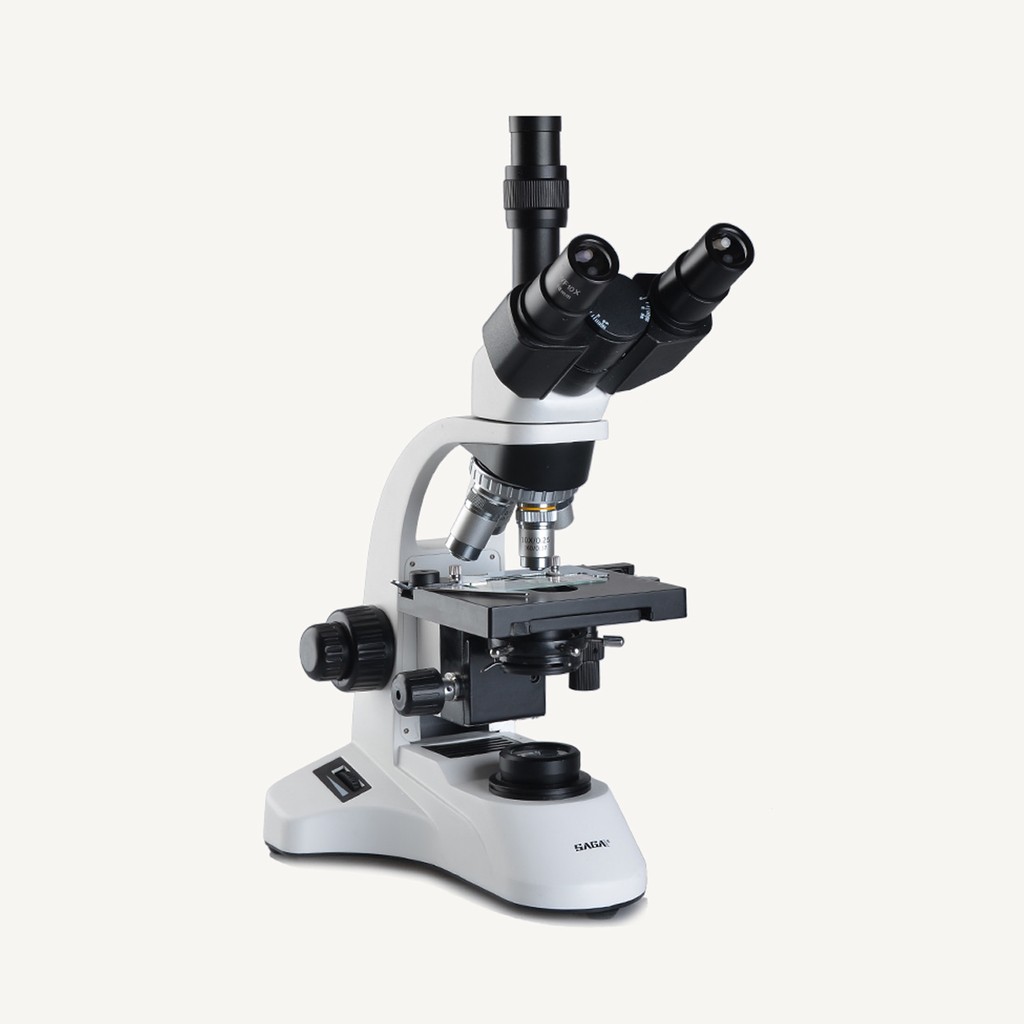

SAGA Microscope SG50 Binocular/Trinocular
Companion Software
Choose Variant
Selected:SG50 Binocular
Key Specs
Product Videos
SAGA Microscope SG50 Binocular/Trinocular Full Specifications
| Parameter | SG50 Binocular | SG50 Trinocular |
|---|---|---|
| Magnification | 40x-1600x | 40x-1600x |
| Viewing HeadDiff | Binocular head | Binocular head + vertical TV port (for digital eyepiece / CCD / DSLR) |
| Eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece |
| Objective | 195 achromatic 4x/10x/40x/100x oil | 195 achromatic 4x/10x/40x/100x oil |
| Nosepiece | Quadruple inward nosepiece | Quadruple inward nosepiece |
| Stage | Double-layer mechanical stage | Double-layer mechanical stage |
| Focus System | LED top & bottom illumination | LED top & bottom illumination |
| Eyepiece Base | Coaxial dual-speed coarse/fine focus | Coaxial dual-speed coarse/fine focus |
| Interpupillary Distance | Hinged trinocular, 30° incline | Hinged trinocular, 30° incline |
| Condenser | Abbe NA1.25, height-adjustable, adjustable aperture, with filter tray | Abbe NA1.25, height-adjustable, adjustable aperture, with filter tray |
| Caliper Travel | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray |
| 1W Bottom LED Light | Longitudinal 30mm, lateral 50mm | Longitudinal 30mm, lateral 50mm |
| Power | 1W LED illumination | 1W LED illumination |
| Dimensions | 240X214X425mm | 240X214X425mm |
| Net Weight | Approx. 4.7kg | Approx. 4.7kg |
| Gross Weight | 5.8kg | 5.8kg |
SAGA Microscope SG50 Binocular/Trinocular Product Overview
The SAGA SG50 biological microscope series offers binocular and trinocular viewing head options. The trinocular model features a vertical camera port for connecting digital cameras or displays, enabling simultaneous observation and image recording for teaching, laboratory research, and biomedical work. 40x-1600x magnification, Bottom LED light for transparent specimens, and battery/adapter dual power.
- Binocular / trinocular observation tubes, supports both teaching demos and imaging recording
- Trinocular version with vertical camera port, connects to camera / display for synchronous recording
- 40x–1600x optical magnification, four-hole nosepiece with 195 achromatic objectives
- Bottom LED light for transparent specimens
- Battery + adapter dual power, fits varied environments
SAGA Microscope SG50 Binocular/Trinocular Product Features
Binocular / trinocular observation tubes
supports both teaching demos and imaging recording
Trinocular version with vertical camera port
connects to camera / display for synchronous recording
40x–1600x optical magnification
four-hole nosepiece with 195 achromatic objectives
Bottom LED light for transparent specimens
Battery + adapter dual power
fits varied environments
SAGA Microscope SG50 Binocular/Trinocular Package Contents
Frequently Asked Questions
How many versions are available for this product?
2 versions: SG50 Binocular, SG50 Trinocular. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 40x-1600x; Viewing Head: Binocular / Trinocular; Eyepiece: WF10x / WF16x wide-field eyepiece; Objective: 195 achromatic 4x/10x/40x/100x oil; Nosepiece: Quadruple inward nosepiece; Stage: Double-layer mechanical stage. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Microscope Unit, WF10x/WF16x Eyepiece, 4x/10x/40x/100x Achromatic Objectives, Filter, Fuse, Power Adapter, Dust Cover, Cedar oil.
What are the main features?
Binocular / trinocular observation tubes, supports both teaching demos and imaging recording; Trinocular version with vertical camera port, connects to camera / display for synchronous recording; 40x–1600x optical magnification, four-hole nosepiece with 195 achromatic objectives.
