SAGA Stereo Microscope SG500
Companion Software
Key Specs
Product Videos
SAGA Stereo Microscope SG500 Full Specifications
| Optical Lens | CCD camera with TV + PC dual output |
|---|---|
| Objective | Continuous zoom 0.7-4.5x |
| Stage Area | 380×260mm |
| Working Distance | Max. working distance 330mm |
| Pillar Height | 350mm |
| Illumination System | Clip-on 56-LED ring illuminator, stepless brightness |
| Video Output | HDMI / VGA dual output |
| Display Resolution | 1080P |
| Frame Rate | 60fps |
| Control Method | IR remote control, crosshair marking / measurement |
| Product Dimensions | 380X260X350mm |
| Net Weight | 3kg |
| Gross Weight | 4kg |
| Application | Phone board repair, electronics inspection, gem & jade appraisal, textile inspection, industrial assembly and more |
SAGA Stereo Microscope SG500 Product Overview

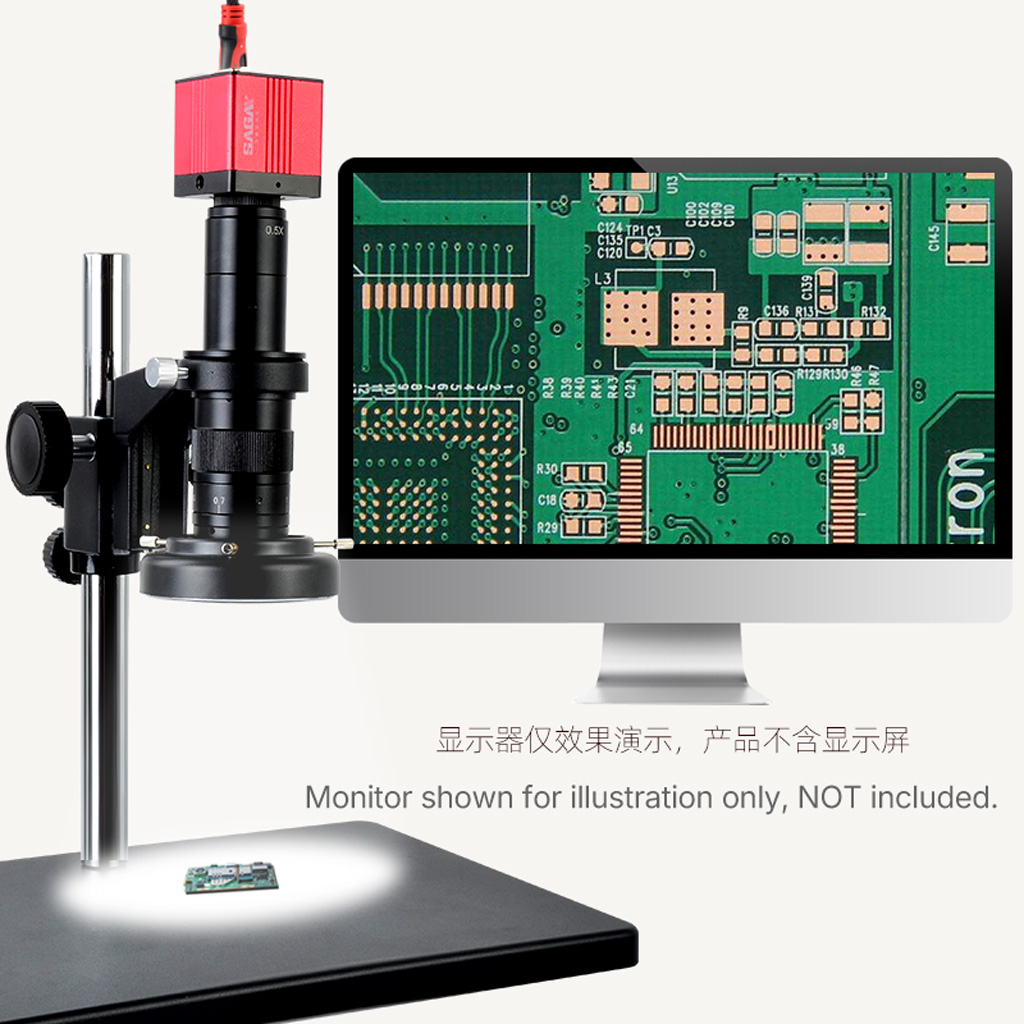

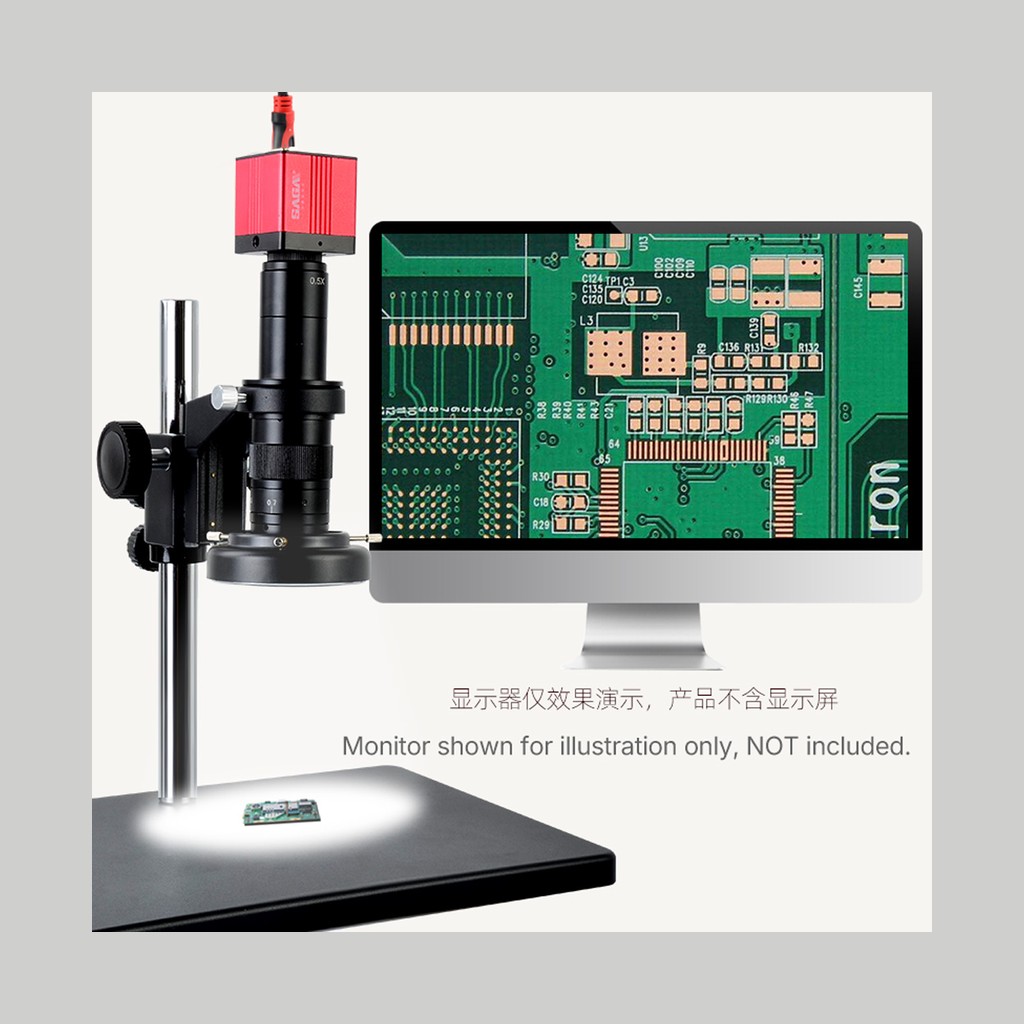

The SAGA Stereo Microscope SG500 is designed for electronics repair, industrial inspection, jewelry appraisal, textile checking, and precision parts assembly. It features a 0.7x-4.5x continuous zoom objective and an HDMI/VGA dual-output CCD camera for direct connection to monitors or TVs without a computer, delivering 1080P HD display at 60fps. The large 380×260mm metal stage and 350mm metal pillar provide a maximum working distance of 330mm. The 56-LED ring light offers adjustable brightness, and the IR remote supports crosshair marking and measurement.
- 0.7–4.5x continuous zoom, wide field at low magnification, fine detail at high magnification
- HDMI / VGA dual-output CCD camera, directly to display / TV without computer
- 1080P HD, 60 fps image output, smooth display
- 380×260 mm large metal stage, 350 mm metal pillar, 330 mm max working distance
- 56-LED ring illumination, stepless brightness adjustment
- IR remote, crosshair coordinate marking and measurement functions
SAGA Stereo Microscope SG500 Product Features
0.7–4.5x continuous zoom
wide field at low magnification, fine detail at high magnification
HDMI / VGA dual-output CCD camera
directly to display / TV without computer
1080P HD
60 fps image output, smooth display
380×260 mm large metal stage
350 mm metal pillar, 330 mm max working distance
56-LED ring illumination
stepless brightness adjustment
IR remote
crosshair coordinate marking and measurement functions
SAGA Stereo Microscope SG500 Package Contents
Frequently Asked Questions
What are the key specifications?
Optical Lens: CCD camera with TV + PC dual output; Objective: Continuous zoom 0.7-4.5x; Stage Area: 380×260mm; Working Distance: Max. working distance 330mm; Pillar Height: 350mm; Illumination System: Clip-on 56-LED ring illuminator, stepless brightness. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Main Unit, Metal Clamp, Metal Base, Metal Pillar, Anti-slip Screw, External LED Light, Light Controller, Light Power Supply.
What are the main features?
0.7–4.5x continuous zoom, wide field at low magnification, fine detail at high magnification; HDMI / VGA dual-output CCD camera, directly to display / TV without computer; 1080P HD, 60 fps image output, smooth display.
