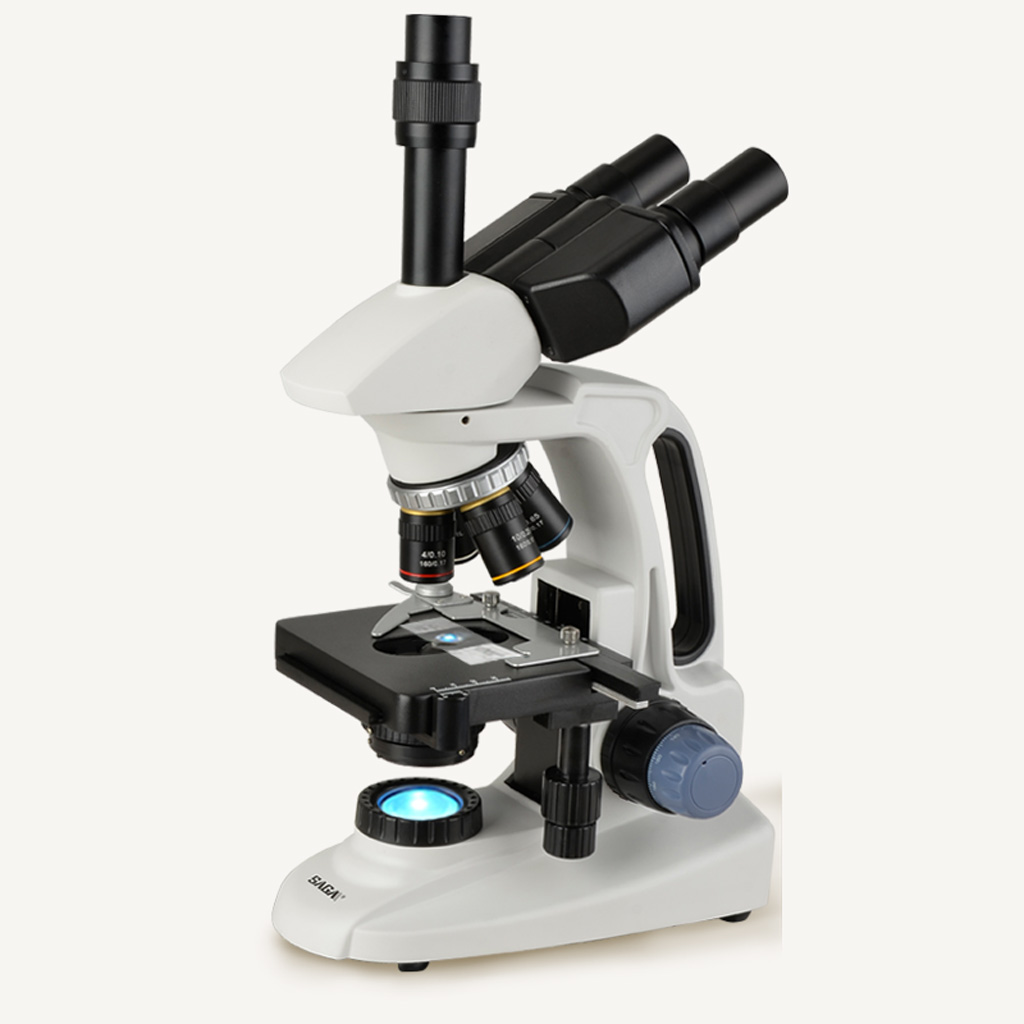

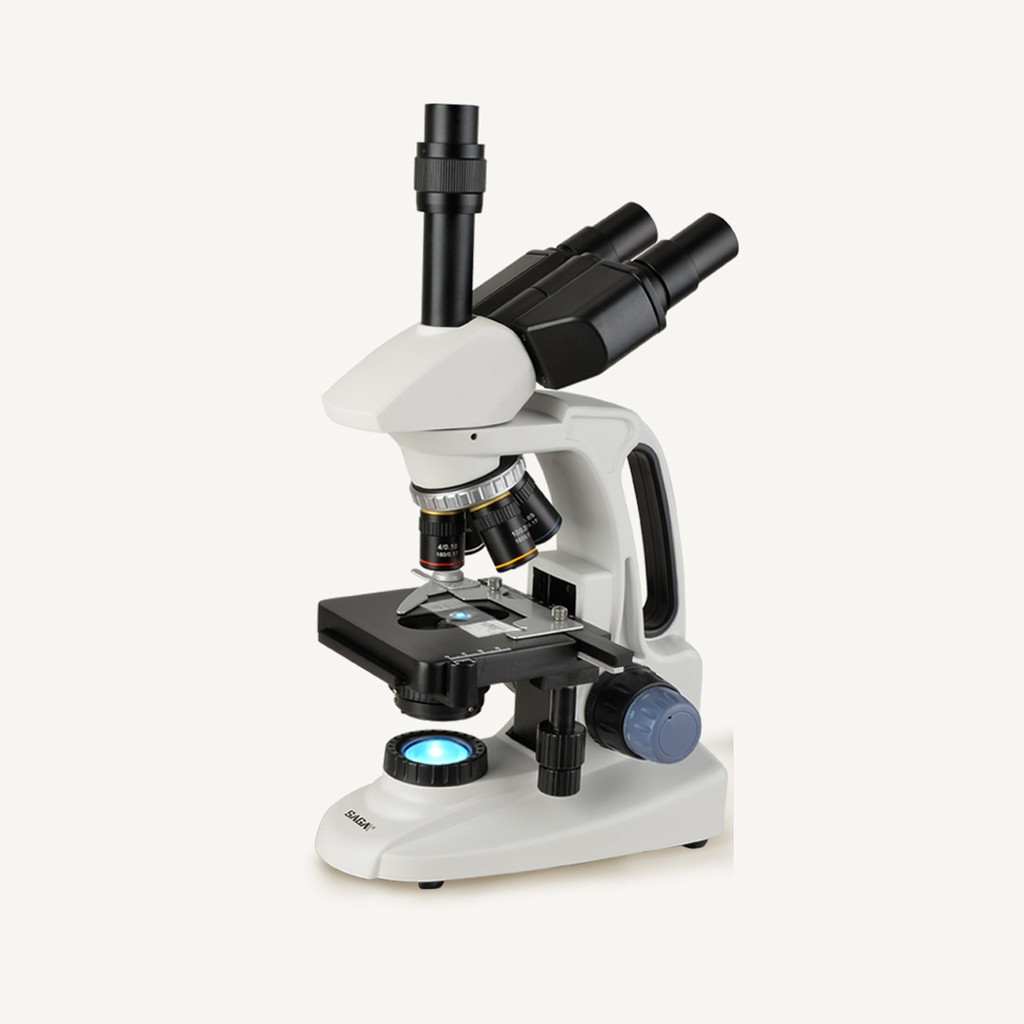

SAGA Microscope SG70 Monocular/Monocular TV/Binocular/Binocular TV
Companion Software
Choose Variant
Selected:Monocular
Key Specs
Product Videos
SAGA Microscope SG70 Monocular/Monocular TV/Binocular/Binocular TV Full Specifications
| Parameter | Monocular | Monocular TV | Binocular | Binocular TV |
|---|---|---|---|---|
| Magnification | 40x-1600x | 40x-1600x | 40x-1600x | 40x-1600x |
| Viewing HeadDiff | Monocular head | Monocular head + vertical TV port (accepts digital eyepiece / CCD / DSLR kit) | Binocular head | Binocular head + vertical TV port (for digital eyepiece / CCD / DSLR) |
| Eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece | WF10x / WF16x wide-field eyepiece |
| Objective | 195 PLAN achromatic 4x/10x/40x/100x oil | 195 PLAN achromatic 4x/10x/40x/100x oil | 195 PLAN achromatic 4x/10x/40x/100x oil | 195 PLAN achromatic 4x/10x/40x/100x oil |
| Nosepiece | Quadruple inward nosepiece | Quadruple inward nosepiece | Quadruple inward nosepiece | Quadruple inward nosepiece |
| Stage | Double-layer mechanical stage | Double-layer mechanical stage | Double-layer mechanical stage | Double-layer mechanical stage |
| Interpupillary Distance | 50-75mm | 50-75mm | 50-75mm | 50-75mm |
| 2W Bottom Dual LED Lights | 2W LED dual illumination (top & bottom) | 2W LED dual illumination (top & bottom) | 2W LED dual illumination (top & bottom) | 2W LED dual illumination (top & bottom) |
| Focus System | Coaxial dual-speed coarse/fine focus | Coaxial dual-speed coarse/fine focus | Coaxial dual-speed coarse/fine focus | Coaxial dual-speed coarse/fine focus |
| Eyepiece Base | 30° incline, 360° rotation | 30° incline, 360° rotation | 30° incline, 360° rotation | 30° incline, 360° rotation |
| Caliper Travel | Vertical 30mm / Horizontal 70mm | Vertical 30mm / Horizontal 70mm | Vertical 30mm / Horizontal 70mm | Vertical 30mm / Horizontal 70mm |
| Condenser | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray | Abbe NA1.25, lift, adjustable iris, filter tray |
| Material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Power | AC100V-240V 50/ 60Hz + 3x AA battery dual power | AC100V-240V 50/ 60Hz + 3x AA battery dual power | AC100V-240V 50/ 60Hz + 3x AA battery dual power | AC100V-240V 50/ 60Hz + 3x AA battery dual power |
| Dimensions | 290×170×135mm | 290×170×135mm | 290×170×135mm | 290×170×135mm |
| Weight | 4150g | 4150g | 4150g | 4150g |
SAGA Microscope SG70 Monocular/Monocular TV/Binocular/Binocular TV Product Overview
The SAGA SG70 biological microscope series features PLAN flat-field achromatic objectives for sharp, edge-to-edge clarity. It offers four viewing head options: monocular, monocular TV, binocular, and binocular TV. Suitable for science education, biomedicine, blood testing, aquaculture, animal husbandry, and water-quality inspection. 40x-1600x magnification, LED top/bottom dual illumination, and battery/adapter dual power.
- Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes, fits varied scenes
- PLAN achromatic objectives, corrects field curvature, optimizes edge imaging
- 195 objectives with four-hole nosepiece, 40x–1600x optical magnification
- Bottom LED light for transparent specimens
- Battery + adapter dual power, fits indoor and outdoor environments
SAGA Microscope SG70 Monocular/Monocular TV/Binocular/Binocular TV Product Features
Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes
fits varied scenes
PLAN achromatic objectives
corrects field curvature, optimizes edge imaging
195 objectives with four-hole nosepiece
40x–1600x optical magnification
Bottom LED light for transparent specimens
Battery + adapter dual power
fits indoor and outdoor environments
SAGA Microscope SG70 Monocular/Monocular TV/Binocular/Binocular TV Package Contents
Frequently Asked Questions
How many versions are available for this product?
4 versions: Monocular, Monocular TV, Binocular, Binocular TV. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 40x-1600x; Viewing Head: Monocular / Monocular+TV / Binocular / Binocular+TV; Eyepiece: WF10x / WF16x wide-field eyepiece; Objective: 195 PLAN achromatic 4x/10x/40x/100x oil; Nosepiece: Quadruple inward nosepiece; Stage: Double-layer mechanical stage. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Microscope Unit, WF10x/WF16x Eyepiece, 4x/10x/40x/100x PLAN Achromatic Objectives, TV tube (TV version only), Power Adapter, Shockproof case, Dust cover, User Manual.
What are the main features?
Monocular / Monocular-TV / Binocular / Binocular-TV four observation tubes, fits varied scenes; PLAN achromatic objectives, corrects field curvature, optimizes edge imaging; 195 objectives with four-hole nosepiece, 40x–1600x optical magnification.
