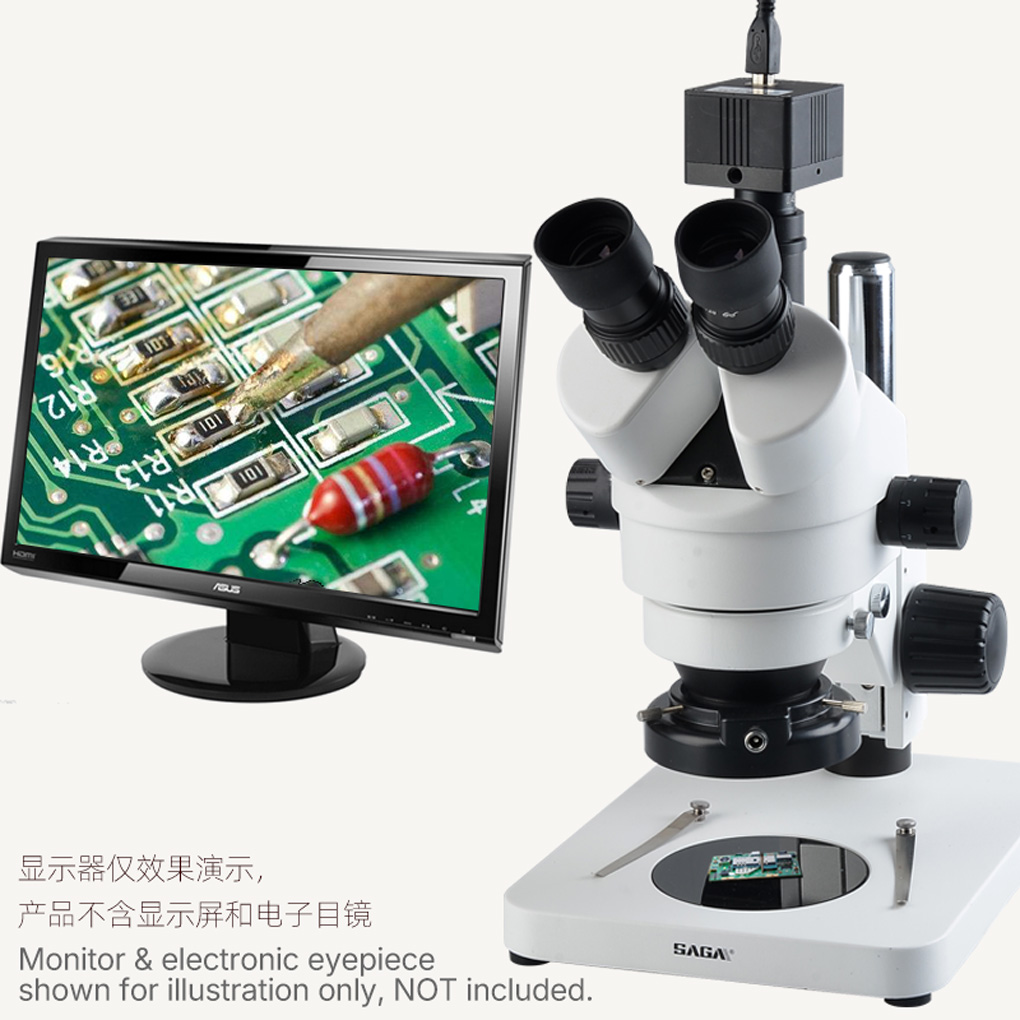

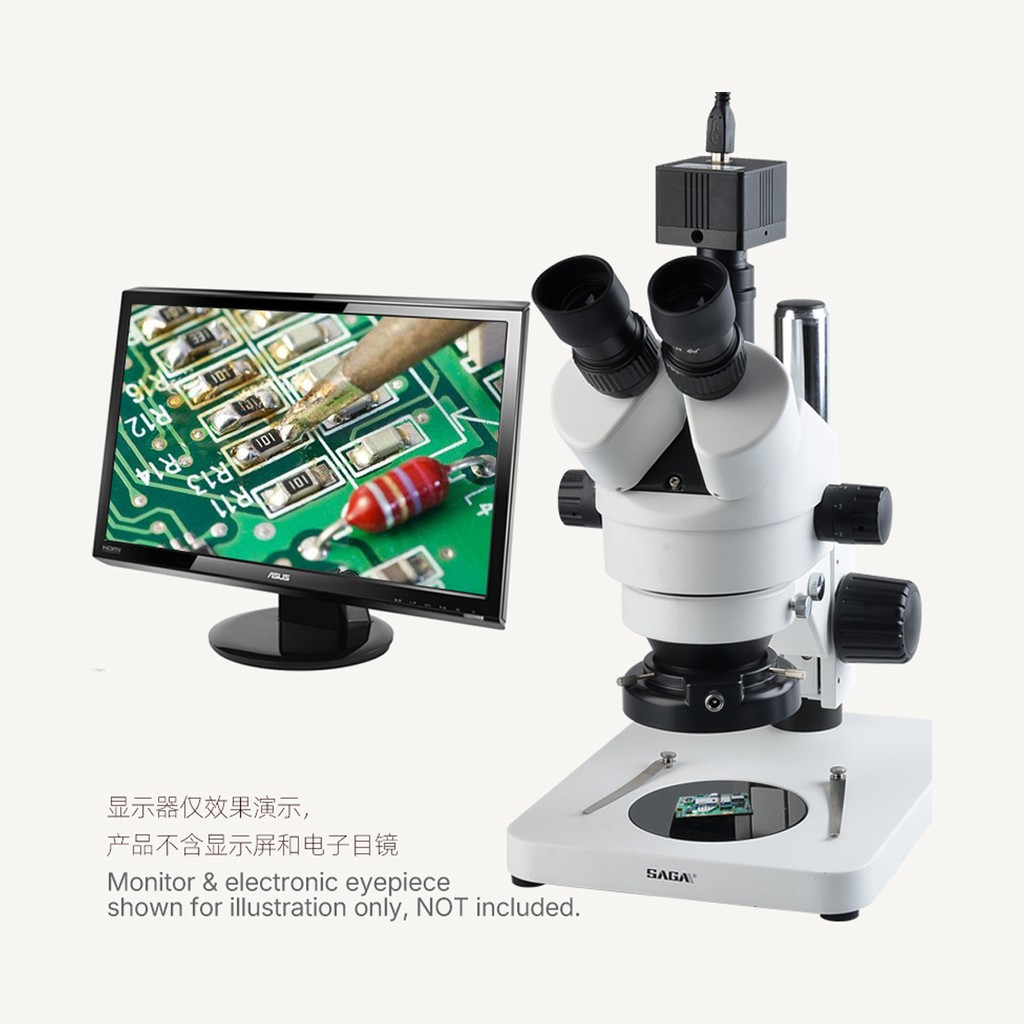

SAGA Stereo Microscope SG700
Companion Software
规格选择
已选：SG700 Binocular
Key Specs
Product Videos
SAGA Stereo Microscope SG700 Full Specifications
| 参数 | SG700 Binocular | SG700 Trinocular |
|---|---|---|
| Magnification | 7X~45X | 7X~45X |
| Viewing Head差异 | Binocular head | Binocular head + vertical TV port (for digital eyepiece / CCD / DSLR) |
| Eyepiece | Binocular wide-field WF10X | Binocular wide-field WF10X |
| Objective | Continuous zoom 0.7-4.5x | Continuous zoom 0.7-4.5x |
| Stage Area | 200×255mm | 200×255mm |
| Eyepiece Base | 45° incline; 360° horizontal rotation; IPD 55-75mm; ±5 diopter | 45° incline; 360° horizontal rotation; IPD 55-75mm; ±5 diopter |
| Working Distance | Max. working distance 100mm | Max. working distance 100mm |
| Stage Plate | Black/ white dual-sided, 95mm diameter | Black/ white dual-sided, 95mm diameter |
| Pillar Height | 250mm | 250mm |
| Illumination System | Clip-on ring LED with stepless brightness control | Clip-on ring LED with stepless brightness control |
| Working Range | Lift range 40mm, column range 150mm; max specimen height 100mm | Lift range 40mm, column range 150mm; max specimen height 100mm |
| Net Weight | 4kg | 4kg |
| Gross Weight | 7kg | 7kg |
| Application | Phone board repair, electronics inspection, gem & jade appraisal, textile inspection, industrial assembly, medical anatomy, agricultural seed selection and more | Phone board repair, electronics inspection, gem & jade appraisal, textile inspection, industrial assembly, medical anatomy, agricultural seed selection and more |
SAGA Stereo Microscope SG700 Product Overview
The SAGA Stereo Microscope SG700 features a large continuous zoom head with binocular or trinocular options. It delivers 7X-45X continuous magnification via a 0.7x-4.5x zoom objective and WF10X wide-field eyepieces for clear, three-dimensional images. The 45° inclined eyepiece tube supports 360° horizontal rotation, 55-75mm interpupillary adjustment, and ±5 diopter correction. The large 200×255mm stage and 250mm metal pillar provide a maximum working distance of 100mm and 40mm focus-travel range. A 56-LED ring light with stepless brightness control is included. The trinocular version adds a vertical TV port for electronic eyepieces, CCD cameras, or DSLR adapters. Ideal for phone motherboard repair, electronics inspection, jewelry appraisal, textile checking, industrial assembly, medical dissection, and agricultural selection.
- 7x–45x continuous magnification, 0.7–4.5x continuous zoom objective
- Binocular / trinocular version optional; trinocular has vertical TV port for CCD / DSLR
- Binocular WF10X wide-field eyepiece, large view, high eye-point design
- 45° inclined eyepiece seat, 360° horizontal rotation, 55–75 mm interpupillary range
- 200×255 mm large stage, 250 mm metal pillar, 100 mm max working distance
- 56 high-brightness LED ring illumination, stepless brightness adjustment
- Applications: phone repair, electronics inspection, jewelry appraisal, textile inspection, industrial assembly
SAGA Stereo Microscope SG700 Product Features
7x–45x continuous magnification
0.7–4.5x continuous zoom objective
Binocular / trinocular version optional; trinocular has vertical TV port for CCD / DSLR
Binocular WF10X wide-field eyepiece
large view, high eye-point design
45° inclined eyepiece seat
360° horizontal rotation, 55–75 mm interpupillary range
200×255 mm large stage
250 mm metal pillar, 100 mm max working distance
56 high-brightness LED ring illumination
stepless brightness adjustment
Applications
phone repair, electronics inspection, jewelry appraisal, textile inspection, industrial assembly
SAGA Stereo Microscope SG700 Package Contents
Frequently Asked Questions
How many versions are available for this product?
2 versions: SG700 Binocular, SG700 Trinocular. They differ in magnification, aperture and other specifications — switch between them in the specification table above to compare side by side.
What are the key specifications?
Magnification: 7X~45X; Eyepiece: Binocular wide-field WF10X; Objective: Continuous zoom 0.7-4.5x; Stage Area: 200×255mm; Eyepiece Base: 45° incline; 360° horizontal rotation; IPD 55-75mm; ±5 diopter; Working Distance: Max. working distance 100mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Main Unit, Eyepieces ×2, Ring Light with Power Cable, B&W Stage Plate, Dust Cover, Manual, Allen Key.
What are the main features?
7x–45x continuous magnification, 0.7–4.5x continuous zoom objective; Binocular / trinocular version optional; trinocular has vertical TV port for CCD / DSLR; Binocular WF10X wide-field eyepiece, large view, high eye-point design.
