SAGA Stereo Microscope SG900
Companion Software
Key Specs
Product Videos
SAGA Stereo Microscope SG900 Full Specifications
| Magnification | 8X-50X |
|---|---|
| Eyepiece | Binocular wide-field WF10X |
| Objective | Dual-lens continuous zoom 0.8-5x |
| Zoom Ratio | 1:6.3 |
| Field Diameter | 27.5mm~4.4mm |
| Main Optical Tube | 45° incline; 360° rotation; IPD 52-75mm; CCD port |
| Imaging Distance | Objective-to-focal-plane distance (focal length) approx. 11cm |
| Stage Plate | Black/white dual-sided / clear glass |
| Pillar Height | 350mm |
| Illumination System | Transmitted illumination / oblique handheld illuminator |
| Ground Interface | Located behind the column |
| Product Dimensions | 300×295×400mm |
| Net Weight | 5.5kg |
| Gross Weight | 7kg |
| Application | Phone board repair, electronics inspection, gem/jade & watch appraisal, textile inspection, industrial assembly, medical anatomy, seed selection, document & banknote verification and more |
SAGA Stereo Microscope SG900 Product Overview

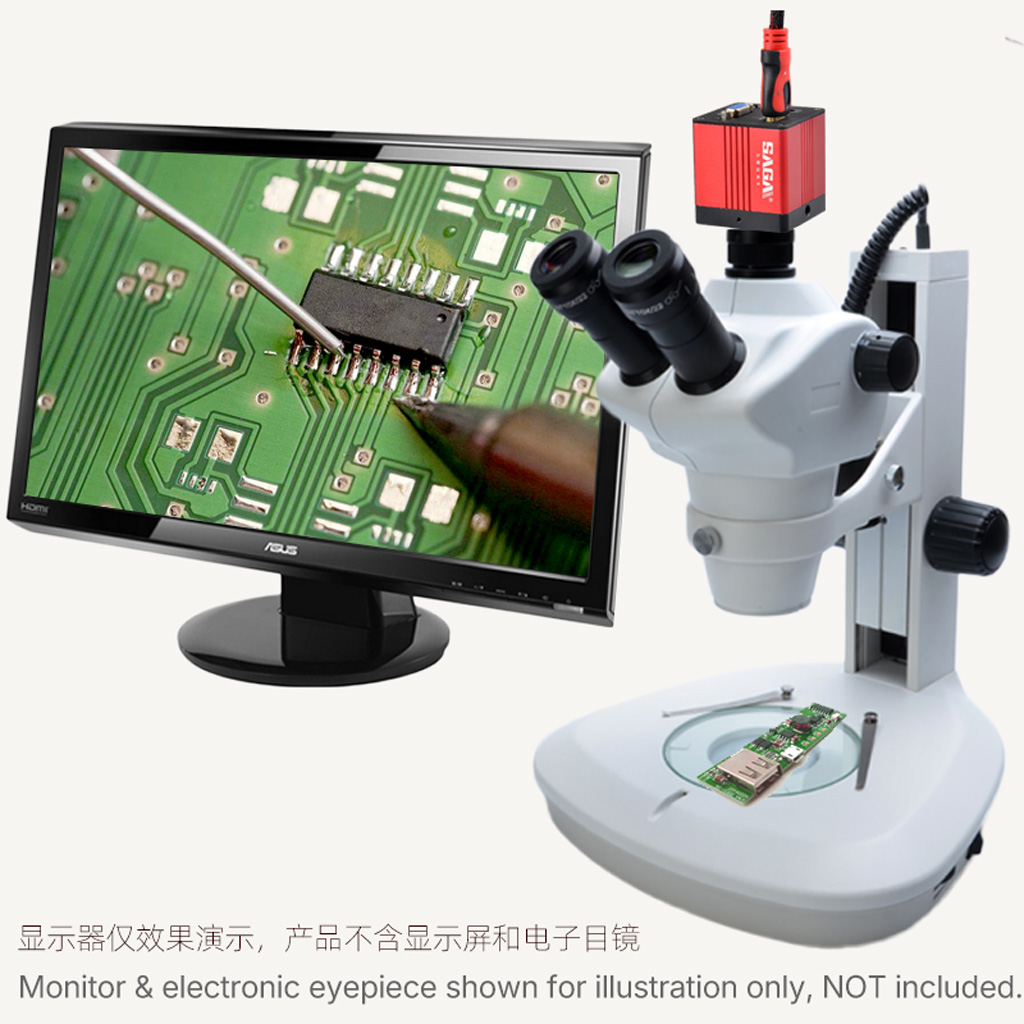

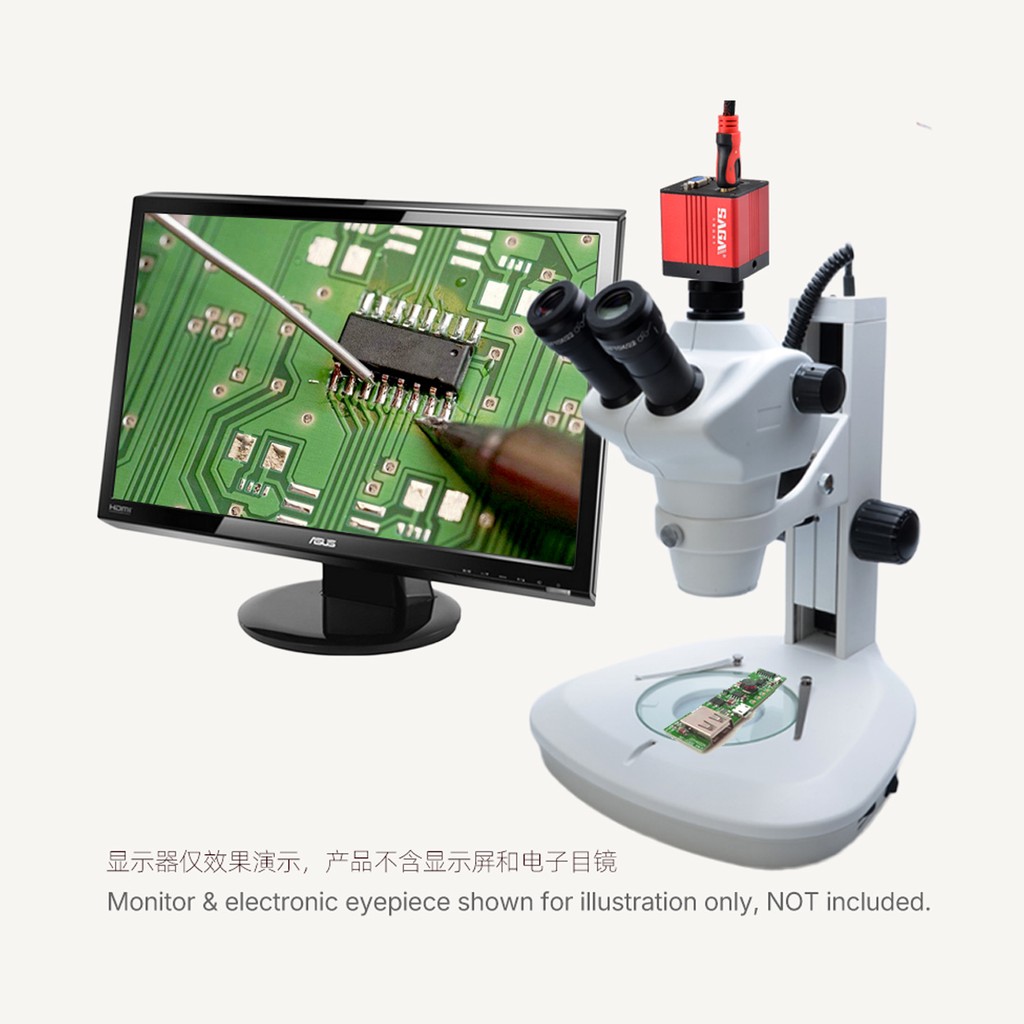

The SAGA Stereo Microscope SG900 features a true trinocular simultaneous-imaging system: the binocular viewing path and TV port operate at the same time, making it easy to connect CCD cameras, electronic eyepieces, or DSLRs for imaging and recording. It delivers 8X-50X continuous magnification via a 0.8x-5x dual-lens high-definition continuous zoom objective and WF10X wide-field eyepieces for sharp, stereoscopic images. A 0.4x reduction lens is included to expand the field of view by more than double for easier positioning and large-sample inspection. The eyepiece tube has a 45° viewing angle, 360° horizontal rotation, and 52-75mm interpupillary adjustment. The objectives are coated with anti-reflection film and protected by a high-transmittance anti-smoke UV filter to shield the optics from soldering fumes and extend service life. Integrated upper and lower LED illumination includes transmitted light for transparent/semi-transparent samples and a handheld oblique light for flexible fill lighting. The 350mm metal pillar and all-metal body provide stable operation at a net weight of about 5.5kg. Switchable black/white and transparent glass stage plates are included. Ideal for phone motherboard repair, electronics inspection, jewelry and watch appraisal, textile checking, industrial assembly, medical dissection, agricultural seed selection, and document/currency verification.
- True trinocular synchronous imaging, binocular observation and TV tube simultaneous output, compatible with CCD, digital eyepiece, DSLR
- 8x–50x continuous magnification, 0.8–5x dual-lens HD continuous zoom objective
- Binocular WF10X wide-field eyepiece, excellent stereoscopic observation
- Standard 0.4x HD reducer, doubles the field of view, easy large-sample positioning
- Anti-reflection coated objective + UV filter, reduces soldering smoke damage, extends lens life
- Integrated high-brightness LED illumination: bottom transmitted light + handheld oblique fill light
- 45° inclined main tube, 360° horizontal rotation, 52–75 mm interpupillary range
- B&W double-sided stage plate and transparent glass stage plate, interchangeable
- 350mm metal column, all-metal structure, net weight approx. 5.5kg
SAGA Stereo Microscope SG900 Product Features
True trinocular synchronous imaging
binocular observation and TV tube simultaneous output, compatible with CCD, digital eyepiece, DSLR
8x–50x continuous magnification
0.8–5x dual-lens HD continuous zoom objective
Binocular WF10X wide-field eyepiece
excellent stereoscopic observation
Standard 0.4x HD reducer
doubles the field of view, easy large-sample positioning
Anti-reflection coated objective + UV filter
reduces soldering smoke damage, extends lens life
Integrated high-brightness LED illumination
bottom transmitted light + handheld oblique fill light
45° inclined main tube
360° horizontal rotation, 52–75 mm interpupillary range
B&W double-sided stage plate and transparent glass stage plate
interchangeable
350mm metal column
all-metal structure, net weight approx. 5.5kg
SAGA Stereo Microscope SG900 Package Contents
Frequently Asked Questions
What are the key specifications?
Magnification: 8X-50X; Eyepiece: Binocular wide-field WF10X; Objective: Dual-lens continuous zoom 0.8-5x; Zoom Ratio: 1:6.3; Field Diameter: 27.5mm~4.4mm; Main Optical Tube: 45° incline; 360° rotation; IPD 52-75mm; CCD port. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Base Stand, Zoom Body, Clamp Wall-mount, 10x Wide-field Eyepieces ×2, Oblique Illumination, 0.4x Reducer Lens, Transparent Glass Stage Plate, B&W Double-sided Stage Plate.
What are the main features?
True trinocular synchronous imaging, binocular observation and TV tube simultaneous output, compatible with CCD, digital eyepiece, DSLR; 8x–50x continuous magnification, 0.8–5x dual-lens HD continuous zoom objective; Binocular WF10X wide-field eyepiece, excellent stereoscopic observation.
