SAGA All-in-One Screen Thermostat Microscope for Breeding
Companion Software
Key Specs
Product Videos
SAGA All-in-One Screen Thermostat Microscope for Breeding Full Specifications
| Magnification | 40x-400x |
|---|---|
| Eyepiece | WF10x wide-field eyepiece / 5MP digital eyepiece |
| Objective | 185 achromatic 4x/ 10x/ 40x |
| Heated Stage | 25-50°C adjustable with digital display |
| Bottom LED Light | LED bottom illumination |
| Focus System | Coaxial dual-speed coarse/fine focus |
| Condenser | Abbe condenser (adjustable iris) |
| Viewing Head | Single-side 30° incline / HD camera + 7" LCD |
| Caliper Travel | Longitudinal 30mm, lateral 50mm |
| Nosepiece | Triple nosepiece |
| Stage | Heatable stage 109×119mm |
| Power | AC100V-240V 50/60Hz |
| Dimensions | 175X130X503mm |
| Net Weight | Approx. 2.6kg |
| Gross Weight | Approx. 5.8kg |
| Application | Sperm/egg vitality, fish disease, mites, blood, water quality testing |
SAGA All-in-One Screen Thermostat Microscope for Breeding Product Overview

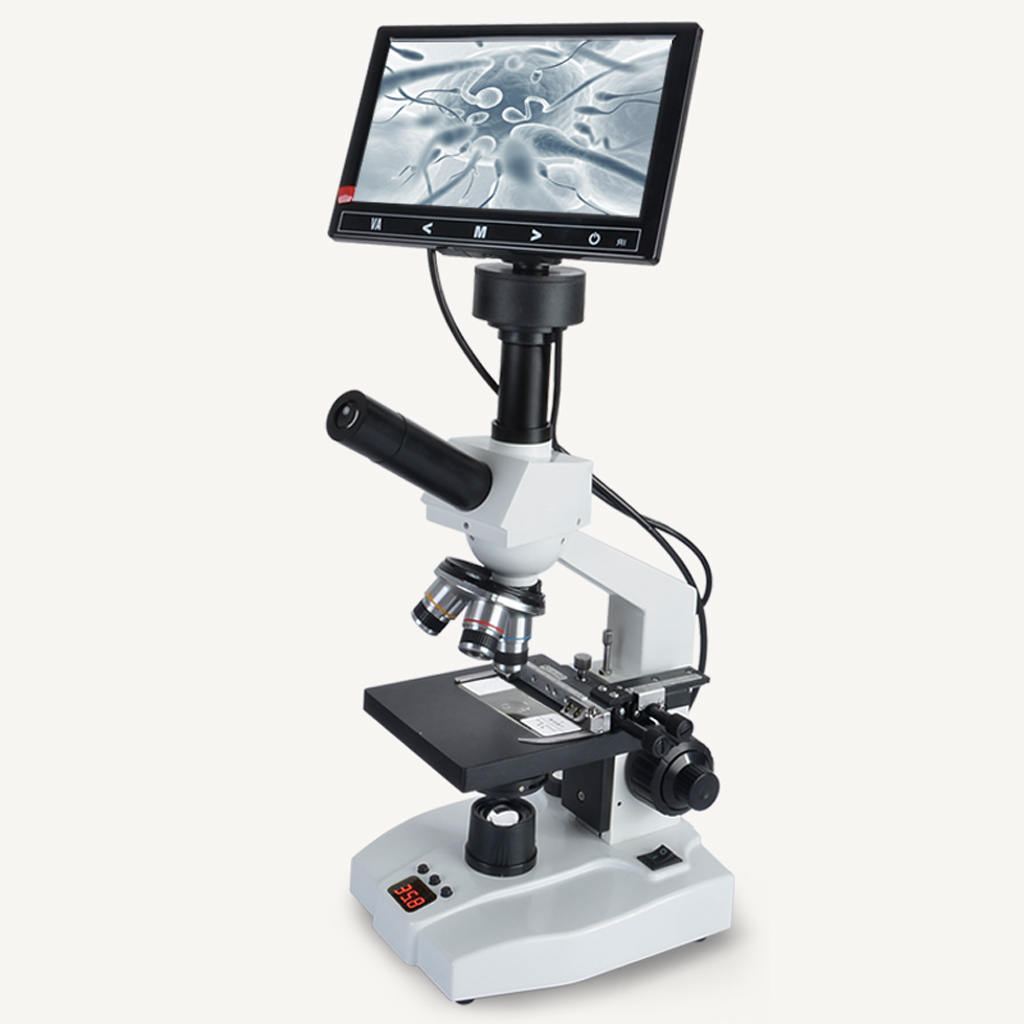

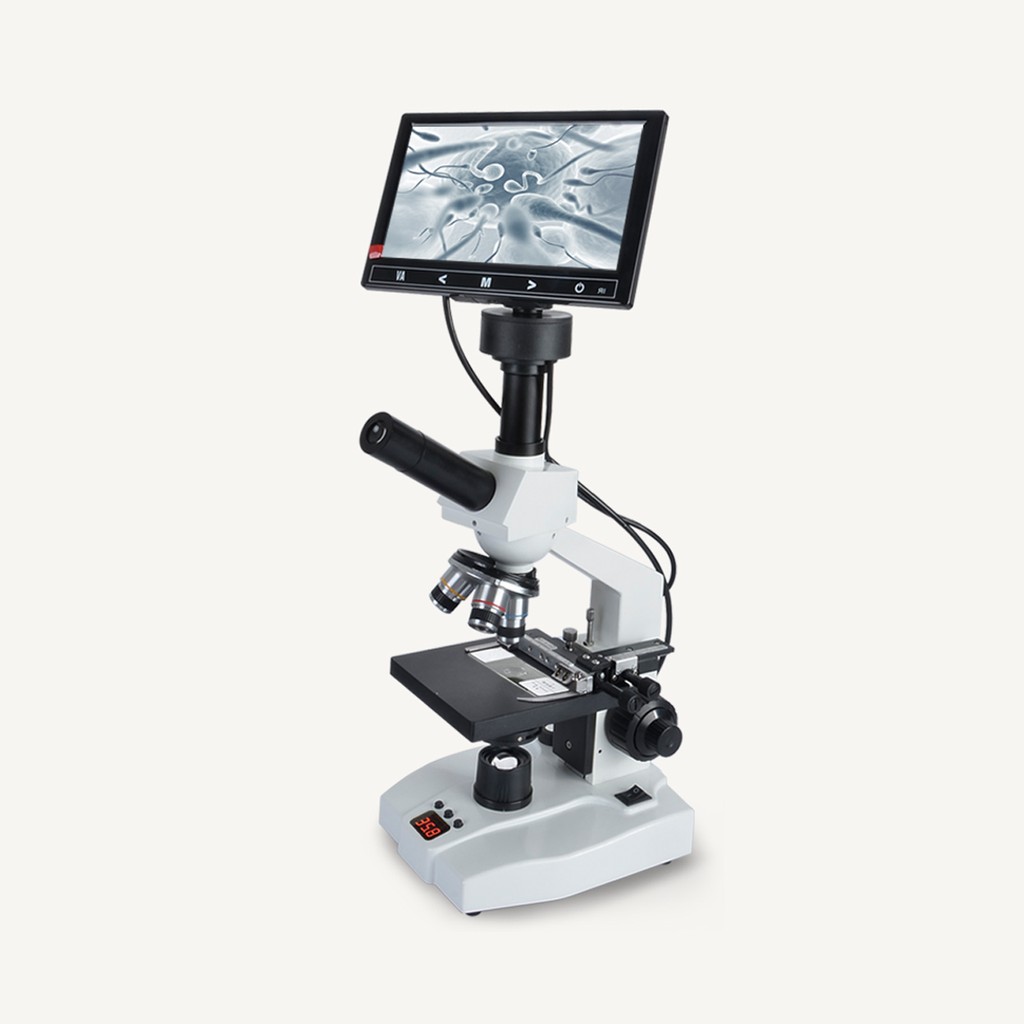

The SAGA all-in-one thermostat microscope features a built-in HD screen for real-time observation without an external computer. Designed for animal husbandry, aquaculture, fish disease diagnosis, sperm/egg vitality testing, mites, and blood samples. The heated stage is precisely adjustable from 25°C to 50°C to keep samples active in cold conditions. 40x-1600x optical magnification, 185 achromatic objectives, adjustable LED illumination, and coaxial coarse/fine focusing.
- Built-in HD display, ready for observation on power-on, no external computer / phone needed
- 25–50°C adjustable thermostatic stage, maintains sample activity in low temperature
- Suited for livestock & aquaculture testing: sperm motility, fish disease, mites, blood samples
- 40x–1600x optical magnification, equipped with 185 achromatic objectives
- LED adjustable illumination, coaxial coarse & fine focus structure
SAGA All-in-One Screen Thermostat Microscope for Breeding Product Features
Built-in HD display
ready for observation on power-on, no external computer / phone needed
25–50°C adjustable thermostatic stage
maintains sample activity in low temperature
Suited for livestock & aquaculture testing
sperm motility, fish disease, mites, blood samples
40x–1600x optical magnification
equipped with 185 achromatic objectives
LED adjustable illumination
coaxial coarse & fine focus structure
SAGA All-in-One Screen Thermostat Microscope for Breeding Package Contents
Frequently Asked Questions
What are the key specifications?
Magnification: 40x-400x; Eyepiece: WF10x wide-field eyepiece / 5MP digital eyepiece; Objective: 185 achromatic 4x/ 10x/ 40x; Heated Stage: 25-50°C adjustable with digital display; Bottom LED Light: LED bottom illumination; Focus System: Coaxial dual-speed coarse/fine focus. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: All-in-one Microscope Unit with Screen, WF10x Eyepiece, 3 objective lenses: 4x/10x/40x (mounted on the unit), 7-inch LCD screen, Aluminum carrying case, Aluminum case key, Power cord, LCD screen connector.
What are the main features?
Built-in HD display, ready for observation on power-on, no external computer / phone needed; 25–50°C adjustable thermostatic stage, maintains sample activity in low temperature; Suited for livestock & aquaculture testing: sperm motility, fish disease, mites, blood samples.
