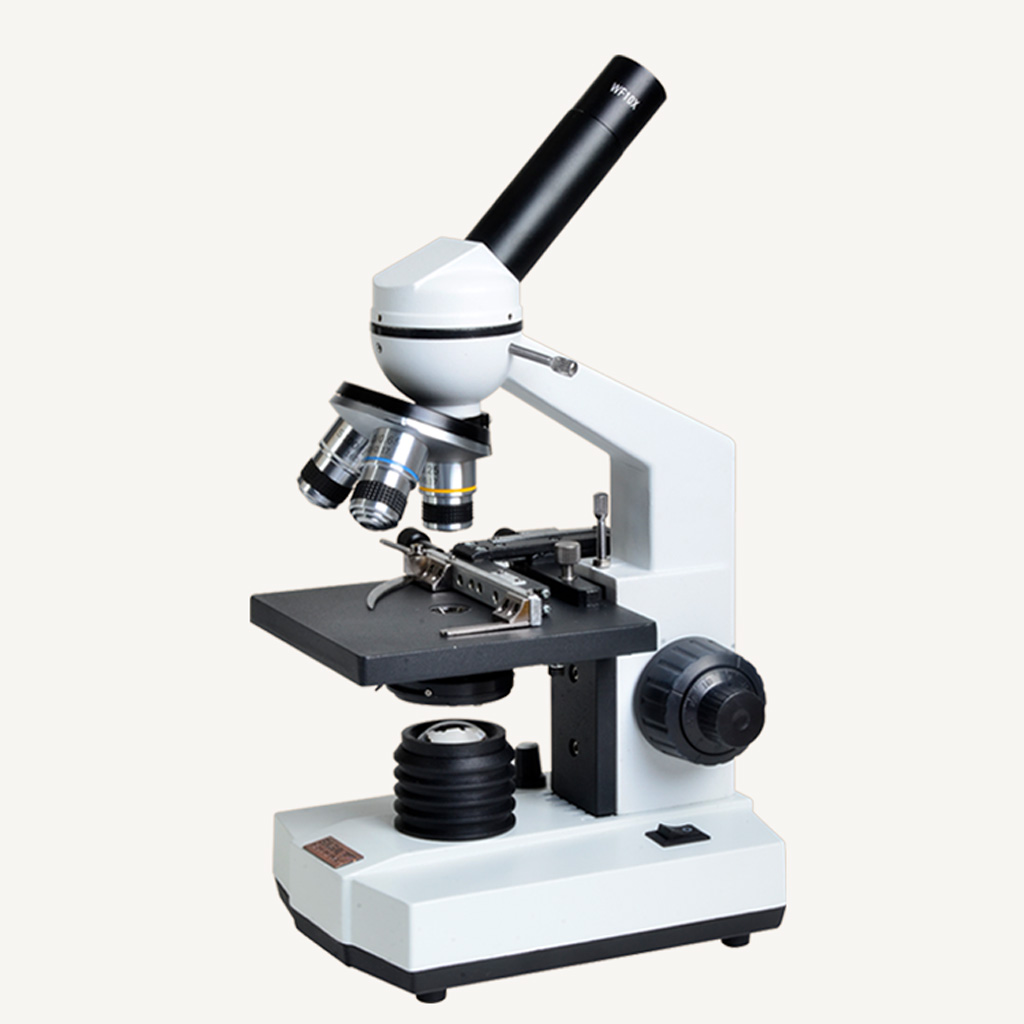

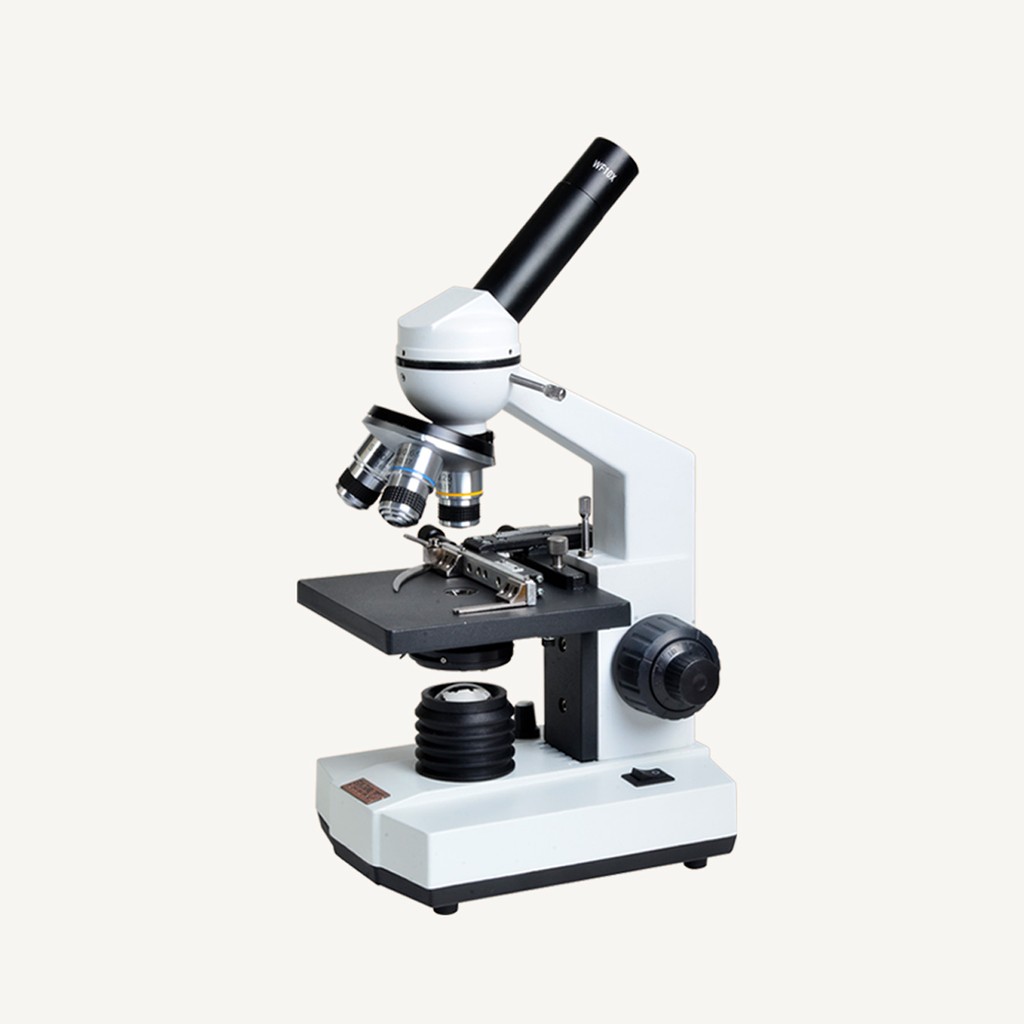

SAGA Microscope XSP-35
Companion Software
Key Specs
Product Videos
SAGA Microscope XSP-35 Full Specifications
| Magnification | 100X~1600X |
|---|---|
| Eyepiece | Wide-field WF10X, Huygens H16X |
| Objective | 185 achromatic 10X, 40X (spring), 100X (oil, spring) |
| Eyepiece Base | Monocular 30° incline, vertical TV port |
| Focus System | Coaxial coarse & fine dual-speed focus system |
| Stage | Square mechanical stage 110×120mm |
| Caliper Travel | Vertical 30mm / Horizontal 50mm |
| Illumination System | 1W LED illumination |
| Condenser | Adjustable-iris condenser |
| Nosepiece | Triple outward nosepiece |
| Power | 16A 250V |
| Product Dimensions | 370×200×150mm |
| Net Weight | 2.6kg |
| Gross Weight | 3.6kg |
| Application | Kids science education, classroom labs, aquaculture disease/parasite testing, agriculture & fishery sample testing |
SAGA Microscope XSP-35 Product Overview
The SAGA biological microscope XSP-35 features a monocular 45° inclined eyepiece tube and 100X-1600X continuous magnification, suitable for children's science education and aquaculture sample inspection. It comes with a WF10X wide-field eyepiece and an H16X Huygens eyepiece, plus hand-calibrated 185 achromatic 10X/40X(spring)/100X(oil, spring) objectives for clear images. The coaxial coarse and fine dual-speed focusing system provides precise focus adjustment. The square mechanical stage measures 110×120mm with 30mm vertical and 50mm horizontal travel for quick sample positioning. The LED light source offers stepless brightness adjustment, and the condenser with adjustable iris improves resolution and contrast. Dimensions: 170×130×340mm; net weight about 2kg. The metal body is sturdy and durable. Ideal for classroom teaching, aquaculture disease/parasite observation, and agricultural/aquaculture sample inspection.
- 100X-1600X magnification, suitable for science education, aquaculture inspection and multiple scenarios
- Monocular 45-degree inclined eyepiece tube, comfortable viewing experience
- 185 achromatic objectives 10X / 40X (spring), natural color rendition, meets teaching, aquaculture, agriculture & forestry routine observation
- 100X (oil, spring) oil-immersion mode, greatly improves resolution at high magnification, observes bacteria, sperm, parasites and other micro samples
- WF10X wide-field eyepiece + H16X Huygens eyepiece, binocular configuration
- Complete magnification coverage: 10X low-mag scan, 40X mid-mag observation, 100X oil-immersion high-mag, one set covers sample positioning to micro-detail observation
- 110×120 mm square mechanical stage with travel scale, 30 mm longitudinal / 50 mm lateral travel, easy sample positioning
- LED electric light with adjustable iris diaphragm condenser, brightness and contrast adjustable
- Coaxial coarse & fine dual-speed focus system, delicate focusing
- Metal body, 170×130×340 mm overall, ~2 kg net weight, sturdy structure
- Applications: children's science education, classroom teaching, aquaculture fish disease and parasite sample testing
SAGA Microscope XSP-35 Product Features
100X-1600X magnification
suitable for science education, aquaculture inspection and multiple scenarios
Monocular 45-degree inclined eyepiece tube
comfortable viewing experience
185 achromatic objectives 10X / 40X (spring)
natural color rendition, meets teaching, aquaculture, agriculture & forestry routine observation
100X (oil
spring) oil-immersion mode, greatly improves resolution at high magnification, observes bacteria, sperm, parasites and other micro samples
WF10X wide-field eyepiece + H16X Huygens eyepiece
binocular configuration
Complete magnification coverage
10X low-mag scan, 40X mid-mag observation, 100X oil-immersion high-mag, one set covers sample positioning to micro-detail observation
110×120 mm square mechanical stage with travel scale
30 mm longitudinal / 50 mm lateral travel, easy sample positioning
LED electric light with adjustable iris diaphragm condenser
brightness and contrast adjustable
Coaxial coarse & fine dual-speed focus system
delicate focusing
Metal body
170×130×340 mm overall, ~2 kg net weight, sturdy structure
Applications
children's science education, classroom teaching, aquaculture fish disease and parasite sample testing
SAGA Microscope XSP-35 Package Contents
Frequently Asked Questions
What are the key specifications?
Magnification: 100X~1600X; Eyepiece: Wide-field WF10X, Huygens H16X; Objective: 185 achromatic 10X, 40X (spring), 100X (oil, spring); Eyepiece Base: Monocular 30° incline, vertical TV port; Focus System: Coaxial coarse & fine dual-speed focus system; Stage: Square mechanical stage 110×120mm. Full parameters are listed in the specification table above.
What is included in the box?
Standard package: Main Unit, WF10x/H16X Eyepiece, 10X/40X/100X Objective, Cedarwood Oil, Filter, Dust Cover, Power Cable, Instruction Manual.
What are the main features?
100X-1600X magnification, suitable for science education, aquaculture inspection and multiple scenarios; Monocular 45-degree inclined eyepiece tube, comfortable viewing experience; 185 achromatic objectives 10X / 40X (spring), natural color rendition, meets teaching, aquaculture, agriculture & forestry routine observation.
